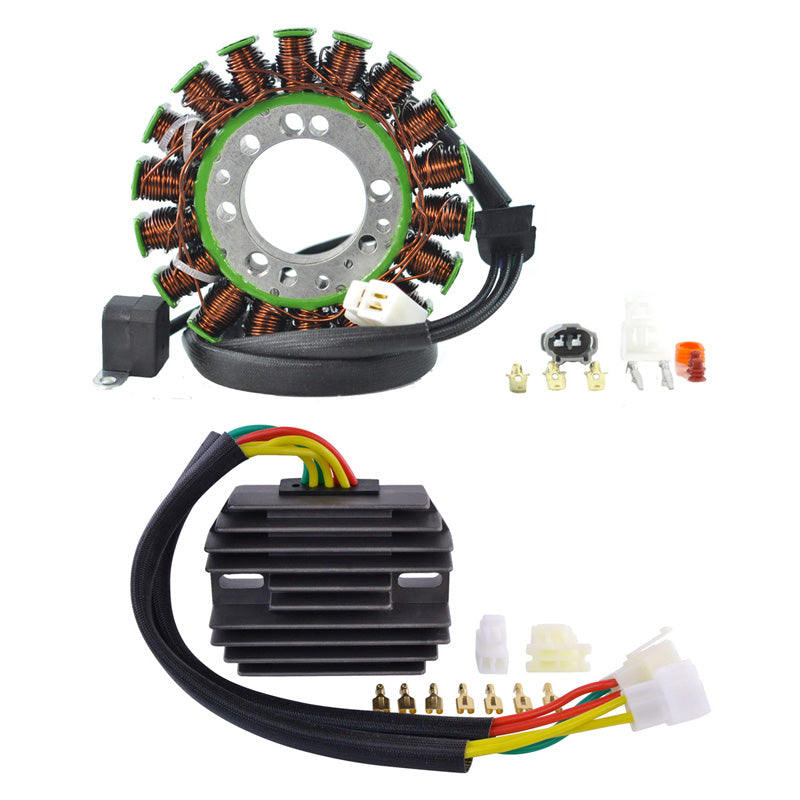

KIT STATOR + REGULATOR (TRIUMPH)

KIT STATOR + REGULATOR (TRIUMPH)

Low stock! Only 1 left


Regular price $450.99
Sale price $450.99 Regular price
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088


  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Brand new aftermarket Stator + Voltage Regulator Kit

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Stator
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Pick up pulsar coil included
  • Connectors included
  • Rubber grommet included

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

Voltage Regulator Rectifier
  • No assembly required
  • Higher grade of electric components
  • The quality exceeds the OEM equipment

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and are a major cause of repetitive electrical issues.

Specifications:

Stator

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 115 mm
Thickness : 22 mm
Length of wires stator to grommet : 120 mm
Length of wires grommet to plug : 530 mm
Length of pickup coil's wire to grommet : 150 mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Number of poles : 18

Wire to wire resistance :
Alternator 3p : Black between each Black = 1 ohm +-20%
Pickup : Green to Blue = 200 ohms +-20%
Alternator to ground = O.L

Voltage Regulator

Dimensions:
Width: 82 mm
Length: 94 mm
Height: 28 mm
Wires length: 183 mm
Fixation holes center to center: 73 mm

Other specifications:
Number of plugs: 2
Number of pins: 7
Number of wires: 7
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20? to 85?

Warning:

Battery condition is extremely important. No stator or voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.




Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

KIT STATOR + REGULATOR (TRIUMPH)

$450.99

Product Specifications

General Information

Brandrms
LabelKIT TRI DAYTONA|STREET TRIPLE 675 08-17
Universemoto
Categorysysteme_de_charge
Supplier Part #RMS900-106045
ITL ID351-900197

Dimensions & Physical

Weight 0 lbs
Length0
Width0
Thickness0

Vehicle Fitment

Total Applications31
Applications TRIUMPH DAYTONA 675 2006TRIUMPH DAYTONA 675 2007TRIUMPH DAYTONA 675 2008TRIUMPH DAYTONA 675 2009TRIUMPH DAYTONA 675 2010TRIUMPH DAYTONA 675 2011TRIUMPH DAYTONA 675 2012TRIUMPH DAYTONA 675 2013TRIUMPH DAYTONA 675 2014TRIUMPH DAYTONA 675 2015TRIUMPH DAYTONA 675 2016TRIUMPH DAYTONA 675R 2011TRIUMPH DAYTONA 675R 2012TRIUMPH STREET TRIPLE 2008TRIUMPH STREET TRIPLE 2009TRIUMPH STREET TRIPLE 2010TRIUMPH STREET TRIPLE 2011TRIUMPH STREET TRIPLE 2012TRIUMPH STREET TRIPLE 2013TRIUMPH STREET TRIPLE 2014TRIUMPH STREET TRIPLE 2015TRIUMPH STREET TRIPLE 2016TRIUMPH STREET TRIPLE R 2009TRIUMPH STREET TRIPLE R 2010TRIUMPH STREET TRIPLE R 2011TRIUMPH STREET TRIPLE R 2012TRIUMPH STREET TRIPLE R 2013TRIUMPH STREET TRIPLE R 2014TRIUMPH STREET TRIPLE R 2015TRIUMPH STREET TRIPLE R 2016TRIUMPH STREET TRIPLE R 2017
Makes TRIUMPH
Models DAYTONA 675DAYTONA 675RSTREET TRIPLESTREET TRIPLE R
Years 200620072008200920102011201220132014201520162017
