• KIT STATOR + MOSFET VOLTAGE REGULATOR RECTIFIER (SUZUKI)

KIT STATOR + MOSFET VOLTAGE REGULATOR RECTIFIER (SUZUKI)

KIT STATOR + MOSFET VOLTAGE REGULATOR RECTIFIER (SUZUKI)

Out of stock
$384.99
$384.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out

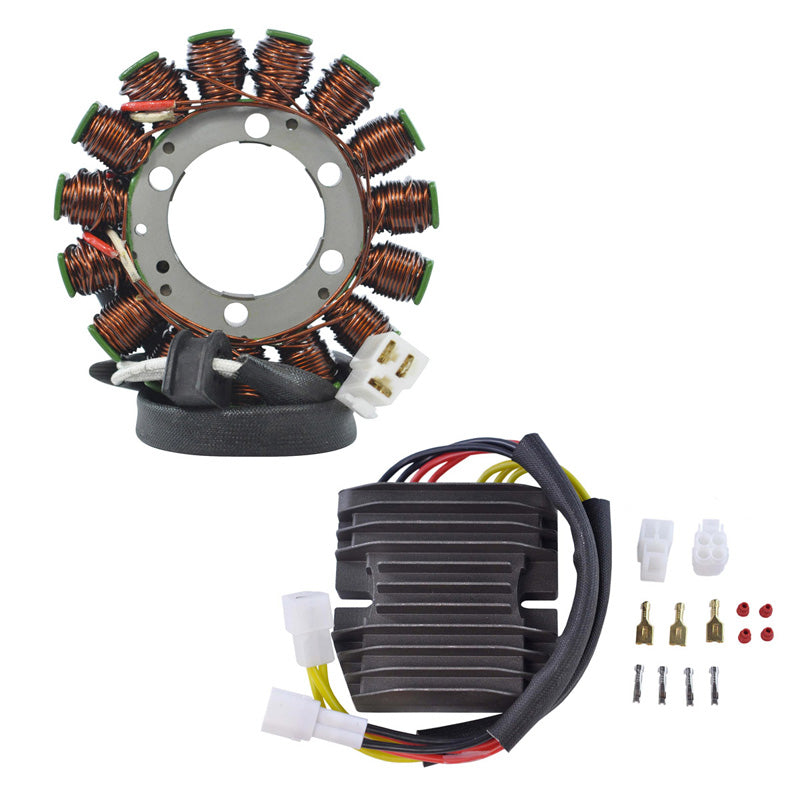

Brand New Kit Stator + Mosfet Voltage Regulator Rectifier

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Connector included
  • All shipped products are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Stator
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Rubber grommet included
Mosfet Voltage Regulator Rectifier

RMSTATOR Enhanced technology=


With enhanced technologydesign

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
This modern, ultra-reliable design can handle up to 50amp peaks and 30amp continuous 3 phase, 30amp single phase.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

  • The Quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components

Why use Mosfet Enhanced technology?



Runs cooler

Runs much cooler than the traditional Shunt voltage regulator rectifier.


Saves gas

Less load on the stator, less work, less fuel is used and you save.


Regulated energy

The power charging your battery is steadier and smooth.




Extended battery life

Extends the battery’s life and cold cranking capacity.


More engine power

Removes stator load resulting in more engine power.


Optimized power

Optimize power delivery by switching the stator coils on or off.

Specifications:

Stator

Dimensions :
Interior diameter : 42mm
Exterior diameter : 105mm
Thickness : 16mm
Length of wires stator to grommet : 120mm
Length of wires grommet to plug : 330mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : White to White = 0.4ohms +/-20%

Mosfet Voltage Regulator Rectifier

Dimensions :
Width : 92mm
Length : 92mm
Height : 30mm
Fixation holes center to center : 75mm
Wires length: 250mm

Other specifications :
Number of plugs : 2
Number of pins : 7
Number of wires : 7
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 50A/500W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelKIT SUZ GSX-R 1000 07 08
Universemoto
Categorysysteme_de_charge
Supplier Part #RMS900-100116
ITL ID351-900152

Dimensions & Physical

Weight 0 lbs
Length9
Width13
Thickness2

Vehicle Fitment

Total Applications2
Applications SUZUKI GSX-R1000 2007SUZUKI GSX-R1000 2008
Makes SUZUKI
Models GSX-R1000
Years 20072008
