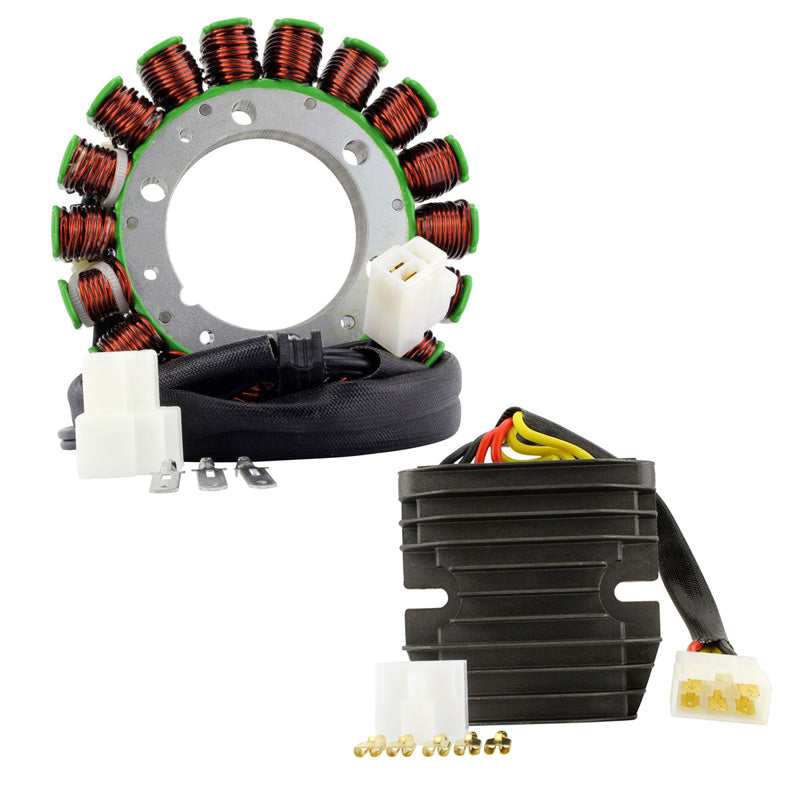

• KIT STATOR + MOSFET REGULATOR (TRIUMPH)

KIT STATOR + MOSFET REGULATOR (TRIUMPH)

KIT STATOR + MOSFET REGULATOR (TRIUMPH)

Out of stock
$354.99
$354.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out

Brand new aftermarket Stator + Mosfet Regulator Kit

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All products shipped are tested

    • All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

    We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

stator

  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Connector included
  • Rubber grommet included
Mosfet Regulator

Why use Mosfet Enhanced technology?



Runs cooler

Runs much cooler than the traditional Shunt voltage regulator rectifier.


Saves gas

Less load on the stator, less work, less fuel is used and you save.


Regulated energy

The power charging your battery is steadier and smooth.




Extended battery life

Extends the battery’s life and cold cranking capacity.


More engine power

Removes stator load resulting in more engine power.


Optimized power

Optimize power delivery by switching the stator coils on or off.

RMSTATOR Enhanced technology=


With enhanced technologydesign

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

Brand new Mosfet Voltage Regulator Rectifier

STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
  • The quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components

Specifications:

Dimensions Stator :

Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 16 mm
Length of wires stator to grommet : 80 mm
Length of wires grommet to plug : 1140 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Black to Black = 0.4 ohms +-20%

Dimensions Mosfet Regulator :

Width : 90 mm
Length : 90 mm
Height : 30 mm
Wires length : 240 mm
Fixation holes center to center : 80 mm

Other specifications :
Number of plugs : 1
Number of pins : 5
Number of wires : 5
Minimum Charging Voltage : 14.5V +- 0.5V
Maximum Charging Current : 50A/500W
Open Circuit Voltage : 15V
Operation Temperature : -20? C to 85? C

Warning:

Battery condition is extremely important. No stator or voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

Please note: that there are two possible regulators and stators for the following models. Bonneville from 2017 to 2020 This kit will only fit on Bonneville with a VIN HIGHER than 513325. Thruxton fr

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelKIT TRI BONNEVILLE T100|THRUXTON 900 06-20
Universemoto
Categorysysteme_de_charge
Supplier Part #RMS900-107269
ITL ID351-900228

Dimensions & Physical

Weight 0 lbs
Length9
Width13
Thickness2

Vehicle Fitment

Total Applications62
Applications POLARIS SPORTSMAN 570 TOURING 2017TRIUMPH AMERICA LT 2014TRIUMPH AMERICA LT 2015TRIUMPH AMERICA LT 2016TRIUMPH BONNEVILLE 900 2008TRIUMPH BONNEVILLE 900 2009TRIUMPH BONNEVILLE 900 2010TRIUMPH BONNEVILLE 900 2011TRIUMPH BONNEVILLE 900 2012TRIUMPH BONNEVILLE 900 2013TRIUMPH BONNEVILLE 900 2014TRIUMPH BONNEVILLE 900 2015TRIUMPH BONNEVILLE 900 AMERICA 2008TRIUMPH BONNEVILLE 900 AMERICA 2009TRIUMPH BONNEVILLE 900 AMERICA 2010TRIUMPH BONNEVILLE 900 AMERICA 2011TRIUMPH BONNEVILLE 900 AMERICA 2012TRIUMPH BONNEVILLE 900 AMERICA 2013TRIUMPH BONNEVILLE 900 AMERICA 2014TRIUMPH BONNEVILLE 900 AMERICA 2015TRIUMPH BONNEVILLE 900 T100 2008TRIUMPH BONNEVILLE 900 T100 2011TRIUMPH BONNEVILLE 900 T100 2012TRIUMPH BONNEVILLE 900 T100 2013TRIUMPH BONNEVILLE 900 T100 2014TRIUMPH BONNEVILLE 900 T100 2015TRIUMPH BONNEVILLE 900 T100 2016TRIUMPH BONNEVILLE 900 T100 2017TRIUMPH BONNEVILLE 900 T100 2018TRIUMPH BONNEVILLE 900 T100 2019TRIUMPH BONNEVILLE 900 T100 2020TRIUMPH BONNEVILLE BUD EKINS T100 2020TRIUMPH SCRAMBLER 2006TRIUMPH SCRAMBLER 2007TRIUMPH SCRAMBLER 2008TRIUMPH SCRAMBLER 2009TRIUMPH SCRAMBLER 2010TRIUMPH SCRAMBLER 2011TRIUMPH SCRAMBLER 2012TRIUMPH SCRAMBLER 2013TRIUMPH SCRAMBLER 2014TRIUMPH SCRAMBLER 2015TRIUMPH SCRAMBLER 2016TRIUMPH SPEEDMASTER 2007TRIUMPH SPEEDMASTER 2008TRIUMPH SPEEDMASTER 2009TRIUMPH SPEEDMASTER 2010TRIUMPH SPEEDMASTER 2011TRIUMPH SPEEDMASTER 2012TRIUMPH SPEEDMASTER 2013TRIUMPH SPEEDMASTER 2014TRIUMPH SPEEDMASTER 2015TRIUMPH SPEEDMASTER 2016TRIUMPH THRUXTON 2008TRIUMPH THRUXTON 2009TRIUMPH THRUXTON 2010TRIUMPH THRUXTON 2011TRIUMPH THRUXTON 2012TRIUMPH THRUXTON 2013TRIUMPH THRUXTON 2014TRIUMPH THRUXTON 2015TRIUMPH THRUXTON 2016
Makes POLARISTRIUMPH
Models AMERICA LTBONNEVILLE 900BONNEVILLE 900 AMERICABONNEVILLE 900 T100BONNEVILLE BUD EKINS T100SCRAMBLERSPEEDMASTERSPORTSMAN 570 TOURINGTHRUXTON
Years 200620072008200920102011201220132014201520162017201820192020
