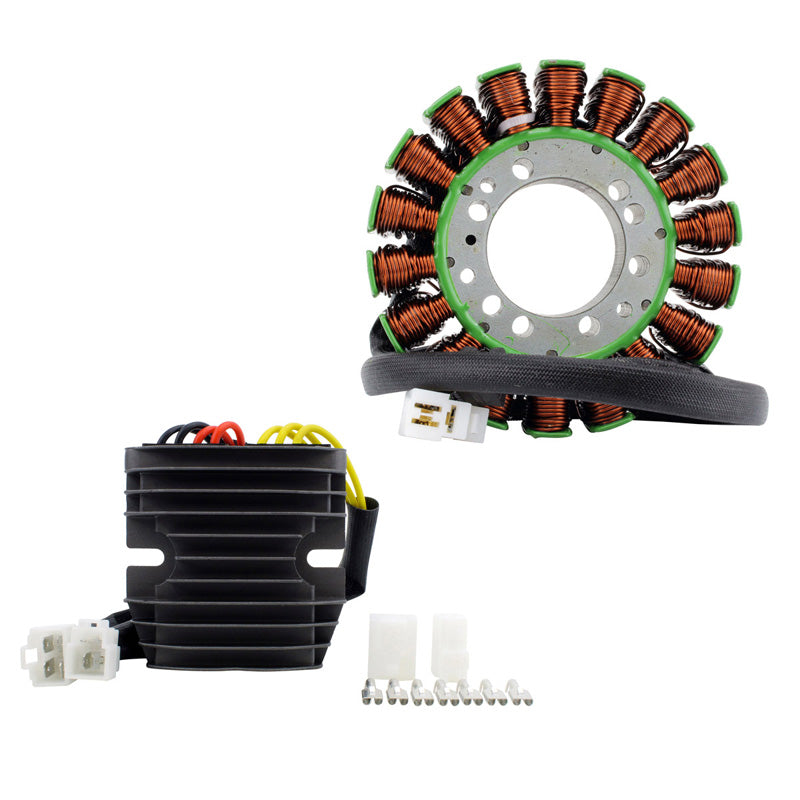

• KIT STATOR + MOSFET REGULATOR (TRIUMPH)

KIT STATOR + MOSFET REGULATOR (TRIUMPH)

KIT STATOR + MOSFET REGULATOR (TRIUMPH)

Low stock! Only 1 left
$354.99
$354.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Brand new aftermarket Stator + Mosfet Regulator Kit

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All shipped products are tested

*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Brand new aftermarket Stator

  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Connectors included
  • Rubber grommet included

Brand new Mosfet Voltage Regulator Rectifier

STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
  • The quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

Why use Mosfet Enhanced technology?



Runs cooler

Runs much cooler than the traditional Shunt voltage regulator rectifier.


Saves gas

Less load on the stator, less work, less fuel is used and you save.


Regulated energy

The power charging your battery is steadier and smooth.




Extended battery life

Extends the battery’s life and cold cranking capacity.


More engine power

Removes stator load resulting in more engine power.


Optimized power

Optimize power delivery by switching the stator coils on or off.

RMSTATOR Enhanced technology=


With enhanced technologydesign

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

Specifications:

STATOR Dimensions :
Interior diameter : 42 mm
Exterior diameter : 115 mm
Thickness : 22 mm
Length of wires stator to grommet : 110 mm
Length of wires grommet to plug : 600 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Number of poles : 18

Wire to wire resistance :
Alternator 3p : Between each Black = 0.5 ohms +-20%

REGULATOR Dimensions:
Width: 90 mm
Length: 94 mm
Height: 30 mm
Wires length: 320 mm & 235 mm
Fixation holes center to center: 75 mm

Other specifications:
Number of plugs: 2
Number of pins: 7
Number of wires: 7
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° to 85°

Warning:

Battery condition is extremely important. No stator or voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

Please Note : There are 2 possible stators for the models Triumph Speed Triple 1050 2005-2010, compare the dimensions of your original product with the dimensions this product before buying. This stator will fit engine serial number 356143 and up. Afterma

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
KIT STATOR + MOSFET REGULATOR (TRIUMPH)

$354.99

Product Specifications

General Information

Brandrms
LabelKIT TRI SPRINT ST|TIGER 1050 05-12
Universemoto
Categorysysteme_de_charge
Supplier Part #RMS900-106211
ITL ID351-900206

Dimensions & Physical

Weight 0 lbs
Length0
Width0
Thickness0

Vehicle Fitment

Total Applications23
Applications TRIUMPH SPEED TRIPLE 1050 2005TRIUMPH SPEED TRIPLE 1050 2006TRIUMPH SPEED TRIPLE 1050 2007TRIUMPH SPEED TRIPLE 1050 2008TRIUMPH SPEED TRIPLE 1050 2009TRIUMPH SPEED TRIPLE 1050 2010TRIUMPH SPEED TRIPLE 1050 2011TRIUMPH SPEED TRIPLE 1050 2012TRIUMPH SPRINT GT 2011TRIUMPH SPRINT GT 2012TRIUMPH SPRINT ST 2005TRIUMPH SPRINT ST 2006TRIUMPH SPRINT ST 2007TRIUMPH SPRINT ST 2008TRIUMPH SPRINT ST 2009TRIUMPH SPRINT ST 2010TRIUMPH SPRINT ST 2011TRIUMPH TIGER 1050 2007TRIUMPH TIGER 1050 2008TRIUMPH TIGER 1050 2009TRIUMPH TIGER 1050 2010TRIUMPH TIGER 1050 2011TRIUMPH TIGER 1050 2012
Makes TRIUMPH
Models SPEED TRIPLE 1050SPRINT GTSPRINT STTIGER 1050
Years 20052006200720082009201020112012
