• KIT STATOR + MOSFET REGULATOR RECTIFIER (HONDA)

KIT STATOR + MOSFET REGULATOR RECTIFIER (HONDA)

KIT STATOR + MOSFET REGULATOR RECTIFIER (HONDA)

Out of stock
$354.99
$354.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out

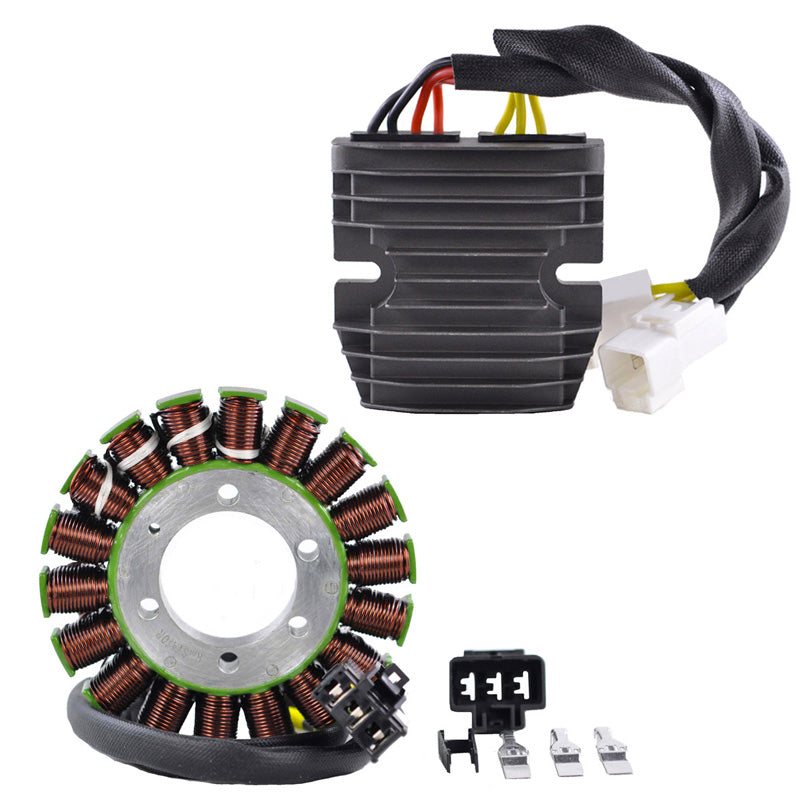

Brand new aftermarket Stator + Mosfet Regulator Kit

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All shipped products are tested

We have even included the opposite connectors (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Brand new aftermarket Stator

  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Connectors included
  • Rubber grommet included

Brand new Mosfet Voltage Regulator Rectifier

STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
  • The quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components

Why use Mosfet Enhanced technology?



Runs cooler

Runs much cooler than the traditional Shunt voltage regulator rectifier.


Saves gas

Less load on the stator, less work, less fuel is used and you save.


Regulated energy

The power charging your battery is steadier and smooth.




Extended battery life

Extends the battery’s life and cold cranking capacity.


More engine power

Removes stator load resulting in more engine power.


Optimized power

Optimize power delivery by switching the stator coils on or off.

RMSTATOR Enhanced technology=


With enhanced technologydesign

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

Specifications:

STATOR Dimensions :
Interior diameter : 41 mm
Exterior diameter : 115 mm
Thickness : 13 mm
Length of wires stator to grommet : 40 mm
Length of wires grommet to plug : 285 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Number of poles : 18

Wire to wire resistance :
Alternator 3p: Between each Yellow = 0.4 ohms +-20%

REGULATOR Dimensions:
Width: 90 mm
Length: 90 mm
Height: 30 mm
Wires length: 220 mm & 210 mm
Fixation holes center to center: 75 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° to 85°

Warning:

Battery condition is extremely important. No stator or voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelKIT HON CBF1000 06-10
Universemoto
Categorysysteme_de_charge
Supplier Part #RMS900-106195
ITL ID351-900203

Dimensions & Physical

Weight 0 lbs
Length0
Width0
Thickness0

Vehicle Fitment

Total Applications3
Applications HONDA CBF1000A ADVENTURE 2008HONDA CBF1000A ADVENTURE 2009HONDA CBF1000A ADVENTURE 2010
Makes HONDA
Models CBF1000A ADVENTURE
Years 200820092010
