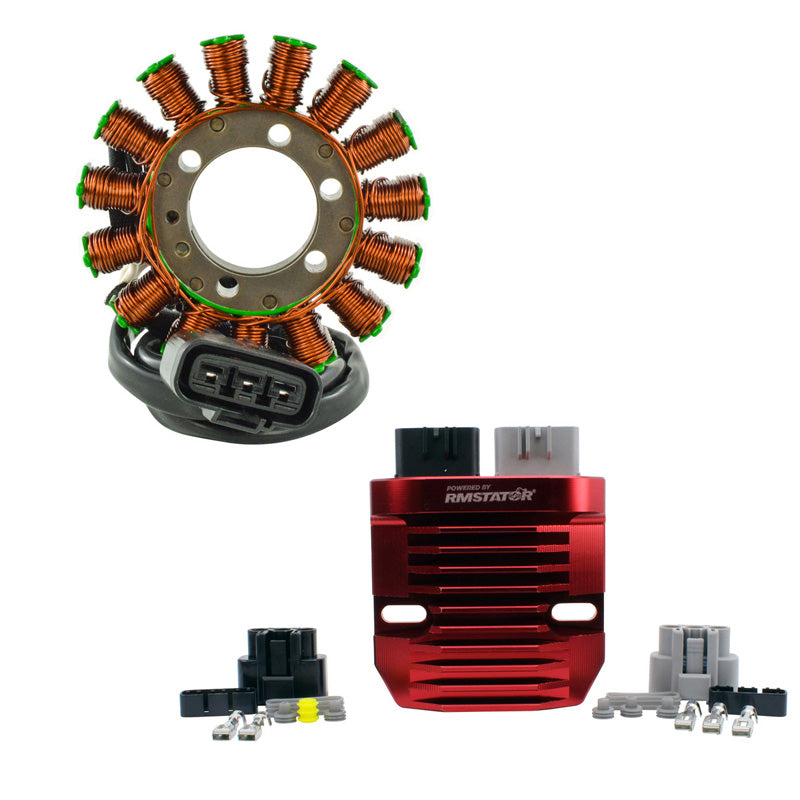

• KIT STATOR + MACHINED ALUMINUM VOLTAGE REGULATOR RECTIFIER (BMW)

KIT STATOR + MACHINED ALUMINUM VOLTAGE REGULATOR RECTIFIER (BMW)

KIT STATOR + MACHINED ALUMINUM VOLTAGE REGULATOR RECTIFIER (BMW)

Low stock! Only 1 left
$472.99
$472.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Brand New aftermarket Stator + Regulator Rectifier

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All shipped products are tested
  • All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Brand new aftermarket stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Connector included
  • Rubber grommet included

Brand New aftermarket Regulator Rectifier

Our new RMSTATOR machined aluminum Mosfet voltage regulator is a great upgrade for heat dissipation in any powersports charging system. After 10 minutes of use, our billet aluminum heatsink runs cooler by 33% than standard cast regulator housings. Our new RMSTATOR red regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.

STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.

It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up, it will simply turn off for a while and cool off.

  • The quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.



Why use Mosfet Enhanced technology?





Runs cooler

Runs much cooler than the traditional Shunt voltage regulator rectifier.


Saves gas

Less load on the stator, less work, less fuel is used and you save.

Regulated energy

The power charging your battery is steadier and smooth.




Extended battery life

Extends the battery’s life and cold cranking capacity.


More engine power

Removes stator load resulting in more engine power.

Optimized power

Optimize power delivery by switching the stator coils on or off.

RMSTATOR Enhanced technology=


With enhanced technologydesign

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.



Specifications:

Stator Dimensions
Interior diameter : 38 mm
Exterior diameter : 104 mm
Thickness : 13 mm
Length of wires stator to grommet : 75 mm
Length of wires grommet to plug : 670 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Between each Grey = 0.4 ohms +-20%

Regulator Dimensions
Width: 103 mm
Length: 103 mm
Height: 28 mm
Fixation holes center to center: 80 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: 15 V
Operation Temperature: -20? to 85?

Warning:

Battery condition is extremely important. No stator and voltage regulator can work correctly with a bad or weak battery.

Always fully charge your battery before performing any charging system tests or replacing parts.

If there is any doubt, have the battery load tested or replaced.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
KIT STATOR + MACHINED ALUMINUM VOLTAGE REGULATOR RECTIFIER (BMW)

$472.99

Product Specifications

General Information

Brandrms
LabelKIT BMW S 1000 RR 09-17|S 1000 R 2013-17
Universemoto
Categorysysteme_de_charge
Supplier Part #RMS900-106637
ITL ID351-900212

Dimensions & Physical

Weight 0 lbs
Length9
Width13
Thickness2

Vehicle Fitment

Total Applications12
Applications BMW S1000R 2014BMW S1000R 2015BMW S1000R 2016BMW S1000R 2017BMW S1000RR 2010BMW S1000RR 2011BMW S1000RR 2012BMW S1000RR 2013BMW S1000RR 2014BMW S1000RR 2015BMW S1000RR 2016BMW S1000RR 2017
Makes BMW
Models S1000RS1000RR
Years 20102011201220132014201520162017
