• KIT STATOR + GASKET + REGULATOR (SUZUKI)

KIT STATOR + GASKET + REGULATOR (SUZUKI)

KIT STATOR + GASKET + REGULATOR (SUZUKI)

7 in stock
$429.99
$429.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

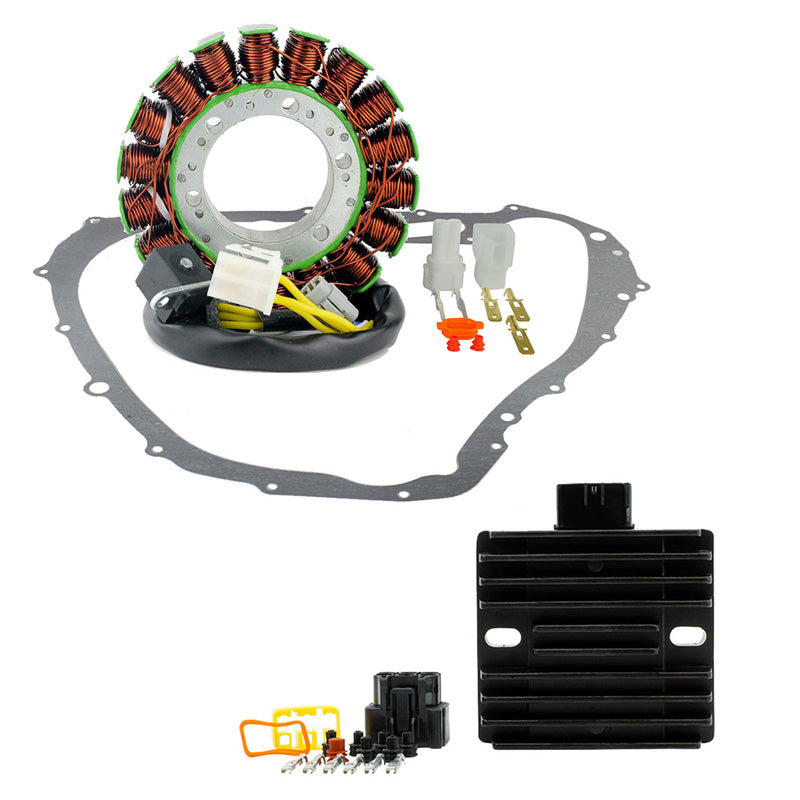

Brand new aftermarket Stator + Gasket + Voltage Regulator Rectifier Kit

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All products shipped are tested

We have even included the opposite connector (main harness side), as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Stator

  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included

Voltage Regulator Rectifier

  • Higher grade of electric components
  • Improved heat sink and charging capabilities
  • The quality exceeds the OEM equipment

Specifications:

Stator Dimensions :
Interior diameter : 53 mm
Exterior diameter : 125 mm
Thickness : 20 mm
Length of wires stator to grommet : 155 mm
Length of wires grommet to plug : 435 mm & 475 mm
Length of pickup coil's wire to grommet : 175 mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator : Between each Yellow = 0.4 ohms +/-20%
Pickup : Blue to White = 208 ohms +/-20%

Regulator Dimensions :
Width : 93 mm
Length : 102 mm
Height : 27 mm
Fixation holes center to center : 72 mm

Other specifications :
Number of plugs : 1
Number of pins : 6

Warning:

Battery condition is extremely important. No voltage regulator, nor stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

Please note that there are TWO possible regulators for the KingQuad LTA 700X 2006. Make sure you have the production number that matches your vehicle. All item pictures are accurate, if in doubt, do not hesitate and compare our item

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
KIT STATOR + GASKET + REGULATOR (SUZUKI)

$429.99

Product Specifications

General Information

Brandrms
LabelKIT SUZ LTA700/750 KING QUAD 06-17
Universevtt_utv
Categorysysteme_de_charge
Supplier Part #RMS900-106308
ITL ID351-900209

Dimensions & Physical

Weight 3.69 lbs
Length9
Width13
Thickness2

Vehicle Fitment

Total Applications27
Applications SUZUKI LT-A700X - KINGQUAD 2005SUZUKI LT-A700X - KINGQUAD 2006SUZUKI LT-A700X - KINGQUAD 2007SUZUKI LT-A750AXI - KINGQUAD 2014SUZUKI LT-A750AXI - KINGQUAD 2015SUZUKI LT-A750AXI - KINGQUAD 2016SUZUKI LT-A750AXI - KINGQUAD 2017SUZUKI LT-A750AXI - KINGQUAD 2018SUZUKI LT-A750X - KINGQUAD 2008SUZUKI LT-A750X - KINGQUAD 2009SUZUKI LT-A750X - KINGQUAD 2010SUZUKI LT-A750X - KINGQUAD 2011SUZUKI LT-A750X - KINGQUAD 2012SUZUKI LT-A750X - KINGQUAD 2013SUZUKI LT-A750X - KINGQUAD 2016SUZUKI LT-A750X - KINGQUAD 2017SUZUKI LT-A750X - KINGQUAD 2018SUZUKI LT-A750XP - KINGQUAD 2009SUZUKI LT-A750XP - KINGQUAD 2010SUZUKI LT-A750XP - KINGQUAD 2011SUZUKI LT-A750XP - KINGQUAD 2012SUZUKI LT-A750XP - KINGQUAD 2013SUZUKI LT-A750XP - KINGQUAD 2014SUZUKI LT-A750XP - KINGQUAD 2015SUZUKI LT-A750XP - KINGQUAD 2016SUZUKI LT-A750XP - KINGQUAD 2017SUZUKI LT-A750XP - KINGQUAD 2018
Makes SUZUKI
Models LT-A700X - KINGQUADLT-A750AXI - KINGQUADLT-A750X - KINGQUADLT-A750XP - KINGQUAD
Years 20052006200720082009201020112012201320142015201620172018
