• KIT STATOR + GASKET + MOSFET REGULATOR (YAMAHA)

KIT STATOR + GASKET + MOSFET REGULATOR (YAMAHA)

KIT STATOR + GASKET + MOSFET REGULATOR (YAMAHA)

8 in stock
$444.99
$444.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

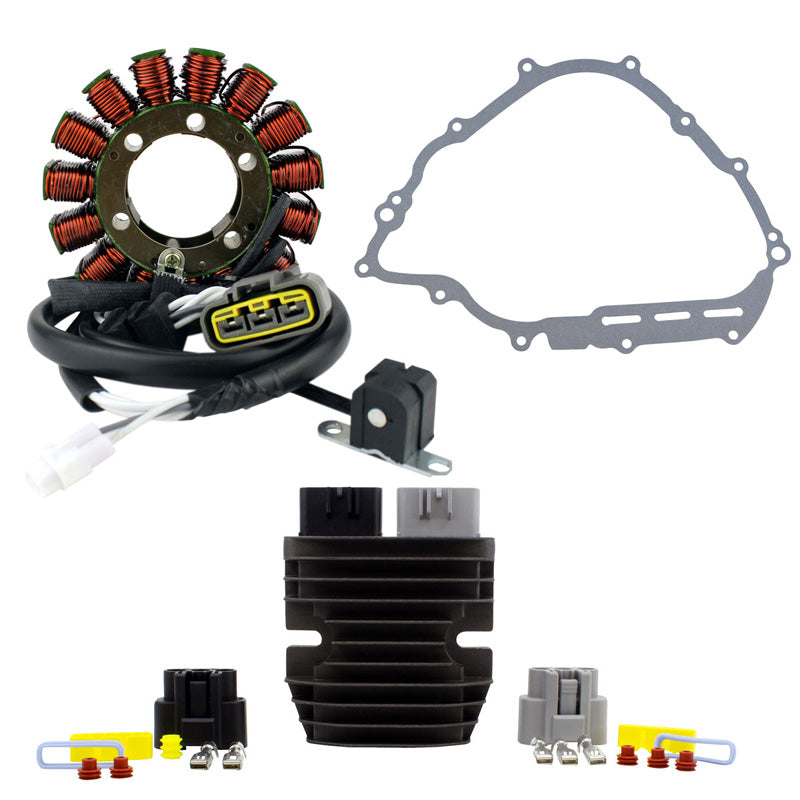

Brand new aftermarket Stator + Crankcase Cover Gasket + Mosfet Voltage Regulator Kit

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Stator
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Stator crankcase cover gasket included
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included

Mosfet Voltage Regulator

STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

  • The quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

Battery condition is extremely important. No stator or voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts.If there is any doubt, have the battery load tested or replaced.

Why use Mosfet Enhanced technology?



Runs cooler

Runs much cooler than the traditional Shunt voltage regulator rectifier.


Saves gas

Less load on the stator, less work, less fuel is used and you save.


Regulated energy

The power charging your battery is steadier and smooth.


Extended battery life

Extends the battery’s life and cold cranking capacity.


More engine power

Removes stator load resulting in more engine power.


Optimized power

Optimize power delivery by switching the stator coils on or off.

RMSTATOR Enhanced technology=


With enhanced technologydesign

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

Specifications:

Dimensions Stator
Interior diameter : 45 mm
Exterior diameter : 106 mm
Thickness : 27 mm
Length of wires stator to grommet : 100 mm
Length of wires grommet to plug : 550 mm & 1100 mm
Length of pickup coil's wire to grommet : 80 mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator : Between each White = 0.4 ohms +/-20%
Alternator : White to Ground = 0.L on Display
Pickup : White to Grey = 500 ohms +/-20%

Dimensions Mosfet Voltage Regulator
Width : 95 mm
Length : 30 mm
Height: 110 mm
Fixation holes center to center :78 mm

Other specifications :
Number of plugs : 2
Number of pins : 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° to 85°

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
KIT STATOR + GASKET + MOSFET REGULATOR (YAMAHA)

$444.99

Product Specifications

General Information

Brandrms
LabelKIT YAM GRIZZLY 550/700 07-15
Universevtt_utv
Categorysysteme_de_charge
Supplier Part #RMS900-106275
ITL ID351-900208

Dimensions & Physical

Weight 0 lbs
Length9
Width13
Thickness10

Vehicle Fitment

Total Applications36
Applications YAMAHA YF70G - GRIZZLY 700 2015YAMAHA YF70G - GRIZZLY 700 2016YAMAHA YF70GP - GRIZZLY 700 EPS 2015YAMAHA YF70GP - GRIZZLY 700 EPS 2016YAMAHA YFM5FG - GRIZZLY 550 FI 2009YAMAHA YFM5FG - GRIZZLY 550 FI 2010YAMAHA YFM5FG - GRIZZLY 550 FI 2011YAMAHA YFM5FG - GRIZZLY 550 FI 2012YAMAHA YFM5FG - GRIZZLY 550 FI 2013YAMAHA YFM5FG - GRIZZLY 550 FI 2014YAMAHA YFM7FG - GRIZZLY 700 2007YAMAHA YFM7FG - GRIZZLY 700 2008YAMAHA YFM7FG - GRIZZLY 700 FI 2009YAMAHA YFM7FG - GRIZZLY 700 FI 2010YAMAHA YFM7FG - GRIZZLY 700 FI 2011YAMAHA YFM7FG - GRIZZLY 700 FI 2012YAMAHA YFM7FG - GRIZZLY 700 FI 2013YAMAHA YFM7FG - GRIZZLY 700 FI 2014YAMAHA YFM7FG - GRIZZLY 700 LE EPS 2008YAMAHA YFM7FG - GRIZZLY 700 LE EPS 2009YAMAHA YFM7FG - GRIZZLY 700 LE EPS 2010YAMAHA YFM7FG - GRIZZLY 700 LE EPS 2011YAMAHA YFM7FG - GRIZZLY 700 LE EPS 2012YAMAHA YFM7FG - GRIZZLY 700 LE EPS 2013YAMAHA YFM7FG - GRIZZLY 700 LE EPS 2014YAMAHA YFM7FG - GRIZZLY 700 LE EPS 2015YAMAHA YFM7FG - GRIZZLY 700 LE EPS 2016YAMAHA YFM7FG - GRIZZLY 700 SE EPS 2008YAMAHA YFM7FG - GRIZZLY 700 SE EPS 2009YAMAHA YFM7FG - GRIZZLY 700 SE EPS 2010YAMAHA YFM7FG - GRIZZLY 700 SE EPS 2011YAMAHA YFM7FG - GRIZZLY 700 SE EPS 2012YAMAHA YFM7FG - GRIZZLY 700 SE EPS 2013YAMAHA YFM7FG - GRIZZLY 700 SE EPS 2014YAMAHA YFM7FG - GRIZZLY 700 SE EPS 2015YAMAHA YFM7FG - GRIZZLY 700 SE EPS 2016
Makes YAMAHA
Models YF70G - GRIZZLY 700YF70GP - GRIZZLY 700 EPSYFM5FG - GRIZZLY 550 FIYFM7FG - GRIZZLY 700YFM7FG - GRIZZLY 700 FIYFM7FG - GRIZZLY 700 LE EPSYFM7FG - GRIZZLY 700 SE EPS
Years 2007200820092010201120122013201420152016
