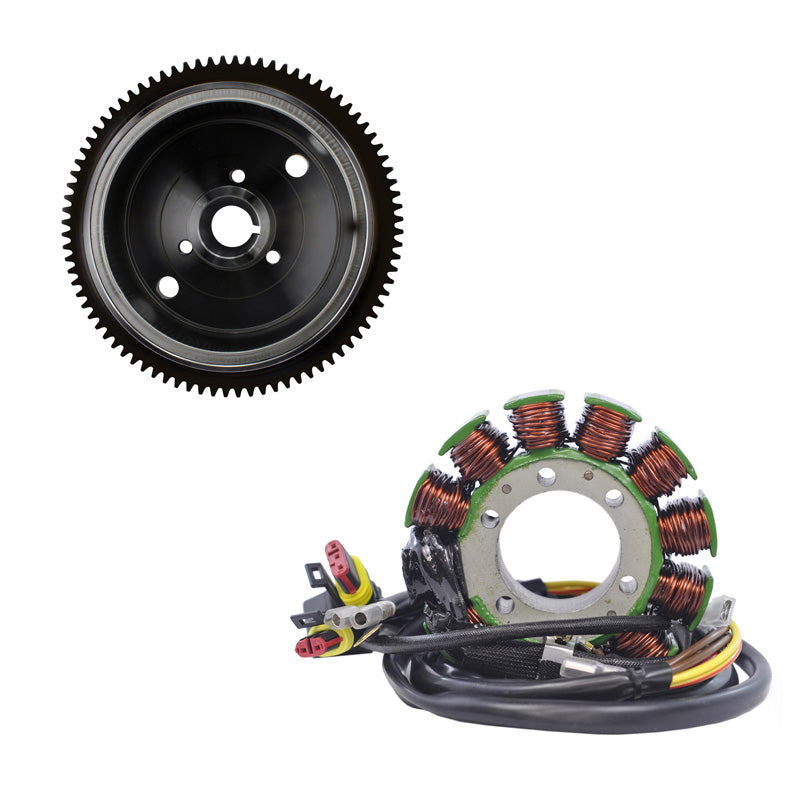

• KIT STATOR + FLYWHEEL ROTOR (POLARIS)

KIT STATOR + FLYWHEEL ROTOR (POLARIS)

KIT STATOR + FLYWHEEL ROTOR (POLARIS)

Low stock! Only 1 left
$755.99
$755.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Brand new aftermarket Stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Introducing our newest Heavy Duty Flywheel Rotor For Polaris 600 & 700cc ATVs.

Anyone who rides or repairs the Polaris 600 & 700cc ATVs is probably familiar with the flywheel problems common to these models. Most of these bikes will have at least one flywheel failure in their lifetime so far. Low quality epoxy was used on OEM flywheels to secure the magnets to the rotor body. Over time and many heat cycles, the epoxy fails allowing the magnets to come loose and contact the stator, potentially causing catastrophic damage.

For years, service shops & dealerships have offered low cost repairs for Polaris flywheels to save the 400$+ OEM replacement. This sounds like a great idea at first, but there are some serious issues!

The common repair is using JB Weld© Marine Blue Epoxy to reattach the loose original magnets, or to install new ones. Epoxy fixes do repair flywheels in short term, if they are done correctly. However, this kind of repair can easily cause immediate problems, and impact long term reliability of your ATV.



A Heavy Duty Flywheel to the rescue!

New RMSTATOR heavy-duty flywheel rotor for Polaris ATVs is a well-priced solution to problems with the OEM flywheel, and an excellent alternative to all the mechanical troubles you can encounter with a repair.

Features

  • Built to OEM size
    Fits precisely in your ride: install it and forget it.

  • Improved epoxy
    Uses high temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment.

  • High grade steel capping
    Prevents harsh additives in motor oil from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator.

  • Precise balancing
    Eliminates crankshaft vibrations for longer engine longevity.

  • Shop with confidence
    One year warranty. All products are tested.

Don't waste time with temporary solutions, and start fixing your ride like a pro!


Why cheap repairs won't work?

Quick stronger epoxy fixes do repair flywheels in short term. It might however impair long term performance and reliability of your ride.

Remaining OEM magnets:
Original magnets remaining can still come loose at any time.

Magnet alignment:
The alignment of magnets around the flywheel is critical for proper stator operation. Even very fine misalignment will reduce stator efficiency significantly.

Magnet spacing:
Excessive epoxy or incorrect magnet spacing around the flywheel can easily affect the flywheel balance. This can cause stator contact or even crankshaft damages.

Incorrect replacement magnets:
The magnetic field strength of new magnets MUST match the originals. Stator failure can occur quickly with stronger magnets and stator output can be decreased significantly using weaker magnets.

Wrong epoxy properties:
Epoxy that is not rated to permanently handle high temperatures and oil immersion can quickly cause a serious failure.

Oil contamination:
Wrong epoxy for the application can also contaminate the crankcase oil, damaging the motor.

All these reasons make us strongly recommend that you replace your broken flywheel with a new 400+ OEM one or our new heavy duty flywheel.

Specifications:

Stator

Dimensions :
Interior diameter : 40 mm
Exterior diameter : 108 mm
Thickness : 25 mm
Length of wires stator to grommet: 85 mm
Length of wires grommet to plug: 930, 960 and 1400 mm
Length of pickup coil's wire to grommet: 160 mm

Other specifications :
Number of wires : 10
Number of plugs : 7
Number of pins : 10

Wire to wire resistance :
Alternator : Yellow to Yellow/Red = 0.4 ohms +/-20%
Alternator : Yellow to Ground = 0.L on display
Pickup : Red to Black = 360 ohms +/-20%
Source : Brown to Yellow = 5.8 ohms +/-20%

Flywheel

Dimensions:
Exterior Diameter: 168 mm
Interior Diameter: 109 mm
Interior Diameter Center Housing: 28 mm
Exterior Diameter Center Housing: 38 mm
Thickness (exterior): 52 mm
Thickness (interior): 42 mm

Warning:

This kit only replaces the AC ignition system by Ducati. You can identify this system by the combined CDI/ignition coil unit mounted in front of the headlight. It will have 2 spark plug wires exiting the unit, with the stator plugged directly into it.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
KIT STATOR + FLYWHEEL ROTOR (POLARIS)

$755.99

Product Specifications

General Information

Brandrms
LabelKIT POL SPORTSMAN 600/700 CARB 02-04
Universevtt_utv
Categorysysteme_de_charge
Supplier Part #RMS900-108090
ITL ID351-900254

Dimensions & Physical

Weight 0 lbs
Length0
Width0
Thickness0

Vehicle Fitment

Total Applications1
Applications POLARIS SPORTSMAN 1000 XP EPS 2016
Makes POLARIS
Models SPORTSMAN 1000 XP EPS
Years 2016
