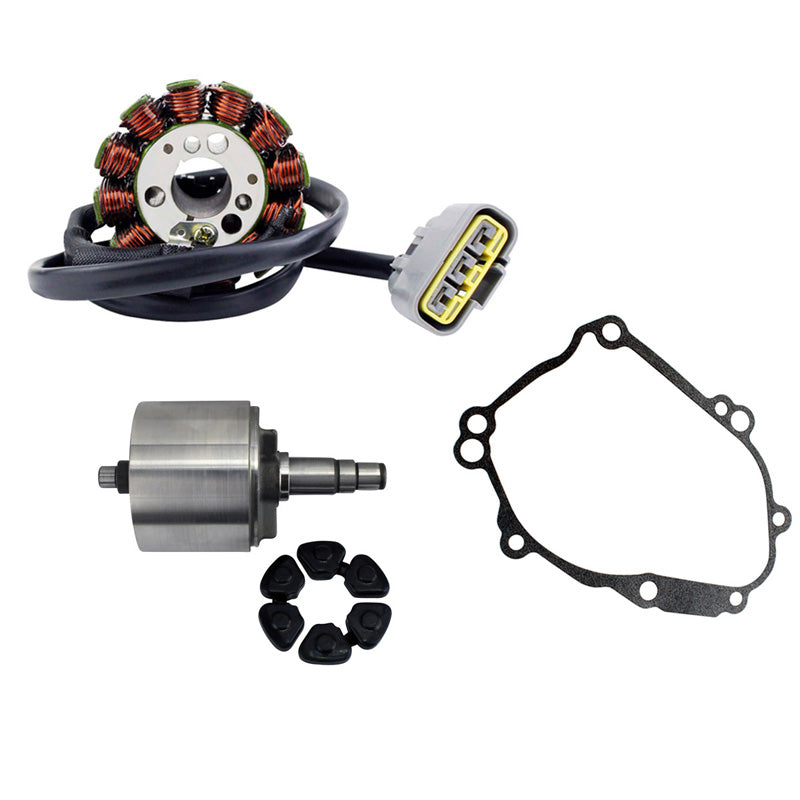

• KIT STATOR + FLYWHEEL + GASKET (YAMAHA)

KIT STATOR + FLYWHEEL + GASKET (YAMAHA)

KIT STATOR + FLYWHEEL + GASKET (YAMAHA)

Low stock! Only 1 left
$518.99
$518.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Brand new aftermarket Stator + Flywheel + Gasket kit

  • Crankcase cover gasket included
  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation

Stator

  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Connector included
  • Rubber grommet included

Flywheel

Introducing our newest Heavy Duty Flywheel Rotor For Yamaha Motorcycles

Anyone who rides or repairs a Yamaha YZF R1, FZ1 or FZ8 is probably familiar with the flywheel problems common to these models. Most of these bikes will have at least one flywheel failure in their lifetime so far. Low quality epoxy was used on OEM flywheels to secure the magnets to the rotor body. Over time and many heat cycles, the epoxy fails allowing the magnets to come loose and contact the stator, potentially causing catastrophic damage.


A Heavy Duty Flywheel to the rescue!

New RMSTATOR heavy-duty flywheel rotor for Yamaha Motorcycles is a well-priced solution to problems with the OEM flywheel, and an excellent alternative to all the mechanical troubles you can encounter with a repair.

Features

  • Built to OEM size
    Fits precisely in your ride: install it and forget it.

  • Improved epoxy
    Uses high temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment.

  • High grade steel capping
    Prevents heat and friction from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator.

  • Precise balancing
    Eliminates crankshaft vibrations for longer engine longevity.

  • Shop with confidence
    Two years warranty. All products are tested.

Don't waste time with temporary solutions, and start fixing your ride like a pro!


Why cheap repairs won't work?

Quick stronger epoxy fixes do repair flywheels in short term. It might however impair long term performance and reliability of your ride.

Remaining OEM magnets:
Original magnets remaining can still come loose at any time.

Magnet alignment:
The alignment of magnets around the flywheel is critical for proper stator operation. Even very fine misalignment will reduce stator efficiency significantly.

Magnet spacing:
Excessive epoxy or incorrect magnet spacing around the flywheel can easily affect the flywheel balance. This can cause stator contact or even crankshaft damages.

Incorrect replacement magnets:
The magnetic field strength of new magnets MUST match the originals. Stator failure can occur quickly with stronger magnets and stator output can be decreased significantly using weaker magnets.

Wrong epoxy properties:
Epoxy that is not rated to permanently handle high temperatures can quickly cause a serious failure.

Oil contamination:
Wrong epoxy for the application can also contaminate the crankcase oil, damaging the motor.

All these reasons make us strongly recommend that you replace your broken flywheel with our new heavy duty flywheel

Specifications:

Stator Dimensions:
Interior diameter : 18 mm
Exterior diameter : 68 mm
Thickness : 42 mm
Length of wires stator to grommet : 125 mm
Length of wires grommet to plug : 500 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Wire to wire resistance :
Alternator : Between each White = 0.4 ohms +/-20%

Flywheel Dimensions:
Exterior Diameter: 80 mm
Interior Diameter: 69 mm
Interior Diameter Center Housing: 12 mm
Exterior Diameter Center Housing: 18 mm
Thickness (exterior): 11 mm
Thickness (interior): 6 mm

Diameter of the Shaft largest to the narrowest:

  • 26 mm
  • 20 mm
  • 18 mm
  • 15 mm

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
KIT STATOR + FLYWHEEL + GASKET (YAMAHA)

$518.99

Product Specifications

General Information

Brandrms
LabelKIT YAM FZ1|FZS1|FZ8|YZF-R1 04-15
Universemoto
Categorysysteme_de_charge
Supplier Part #RMS900-106628
ITL ID351-900211

Dimensions & Physical

Weight 0 lbs
Length9
Width13
Thickness10

Vehicle Fitment

Total Applications20
Applications YAMAHA FZ8N FZ8 2011YAMAHA FZ8N FZ8 2012YAMAHA FZ8N FZ8 2013YAMAHA FZ8S FAZER 8 2011YAMAHA FZ8S FAZER 8 2012YAMAHA FZ8S FAZER 8 2013YAMAHA FZS10 FZ-1 2006YAMAHA FZS10 FZ-1 2007YAMAHA FZS10 FZ-1 2008YAMAHA FZS10 FZ-1 2009YAMAHA FZS10 FZ-1 2010YAMAHA FZS10 FZ-1 2011YAMAHA FZS10 FZ-1 2012YAMAHA FZS10 FZ-1 2013YAMAHA FZS10 FZ-1 2014YAMAHA YZFR1 YZF-R1 2004YAMAHA YZFR1 YZF-R1 2005YAMAHA YZFR1 YZF-R1 2006YAMAHA YZFR1 YZF-R1 2007YAMAHA YZFR1 YZF-R1 2008
Makes YAMAHA
Models FZ8N FZ8FZ8S FAZER 8FZS10 FZ-1YZFR1 YZF-R1
Years 20042005200620072008200920102011201220132014
