• KIT STATOR + FLYWHEEL + GASKET (SUZUKI)

KIT STATOR + FLYWHEEL + GASKET (SUZUKI)

KIT STATOR + FLYWHEEL + GASKET (SUZUKI)

Out of stock
$607.99
$607.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out

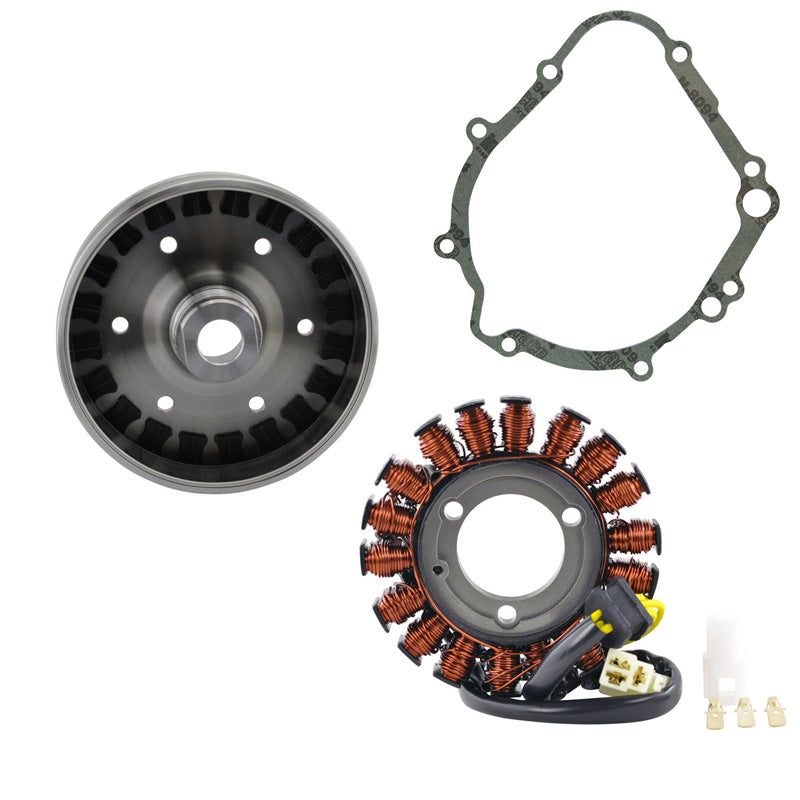

Brand New Kit Stator + Flywheel + Crankcase Cover Gasket

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Connectors included
  • Rubber grommet included
  • All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Instructions:

Before installing your new stator

  • Check the AC output of the stator
  • Replace any burned or corroded connectors on stator and regulator rectifier
  • Check and repair any melted wiring
  • Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Before attempting to start your Suzuki adjusting the air gap is necessary. Rotate the flywheel so the raised node is lined up with the pick up/pulser coil and adjust as close as possible but no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Specifications:

Stator :
Interior diameter: 38 mm
Exterior diameter: 107 mm
Thickness: 12 mm
Length of wires stator to grommet : 160 mm
Length of wires grommet to plug : 330 mm

Other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3

Wire to wire resistance:
Alternator: Yellow to Yellow = 0.5 ohms +/-20%

Flywheel:
Exterior Diameter: 118 mm
Interior Diameter: 108 mm
Interior Diameter Center Housing: 25 mm
Exterior Diameter Center Housing: 33 mm
Thickness (exterior): 34 mm
Thickness (interior): 27 mm

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelKIT STATOR + FLYWHEEL + GASKET SUZUKI GSXR600/750 06-24
Universemoto
Categorysysteme_de_charge
Supplier Part #RMS900-108782
ITL ID351-900292

Dimensions & Physical

Weight 5 lbs
Length0
Width0
Thickness0

Vehicle Fitment

Total Applications39
Applications POLARIS RANGER CREW 570 2017SUZUKI GSX-R600 2006SUZUKI GSX-R600 2007SUZUKI GSX-R600 2008SUZUKI GSX-R600 2009SUZUKI GSX-R600 2010SUZUKI GSX-R600 2011SUZUKI GSX-R600 2012SUZUKI GSX-R600 2013SUZUKI GSX-R600 2014SUZUKI GSX-R600 2015SUZUKI GSX-R600 2016SUZUKI GSX-R600 2017SUZUKI GSX-R600 2018SUZUKI GSX-R600 2019SUZUKI GSX-R600 2020SUZUKI GSX-R600 2021SUZUKI GSX-R600 2022SUZUKI GSX-R600 2023SUZUKI GSX-R600 2024SUZUKI GSX-R750 2006SUZUKI GSX-R750 2007SUZUKI GSX-R750 2008SUZUKI GSX-R750 2009SUZUKI GSX-R750 2010SUZUKI GSX-R750 2011SUZUKI GSX-R750 2012SUZUKI GSX-R750 2013SUZUKI GSX-R750 2014SUZUKI GSX-R750 2015SUZUKI GSX-R750 2016SUZUKI GSX-R750 2017SUZUKI GSX-R750 2018SUZUKI GSX-R750 2019SUZUKI GSX-R750 2020SUZUKI GSX-R750 2021SUZUKI GSX-R750 2022SUZUKI GSX-R750 2023SUZUKI GSX-R750 2024
Makes POLARISSUZUKI
Models GSX-R600GSX-R750RANGER CREW 570
Years 2006200720082009201020112012201320142015201620172018201920202021202220232024
