• KIT STATOR + CNC RED MACHINED ALUMINUM MOSFET REGULATOR + GASKET (SUZUKI)

KIT STATOR + CNC RED MACHINED ALUMINUM MOSFET REGULATOR + GASKET (SUZUKI)

KIT STATOR + CNC RED MACHINED ALUMINUM MOSFET REGULATOR + GASKET (SUZUKI)

Low stock! Only 2 left
$444.99
$444.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

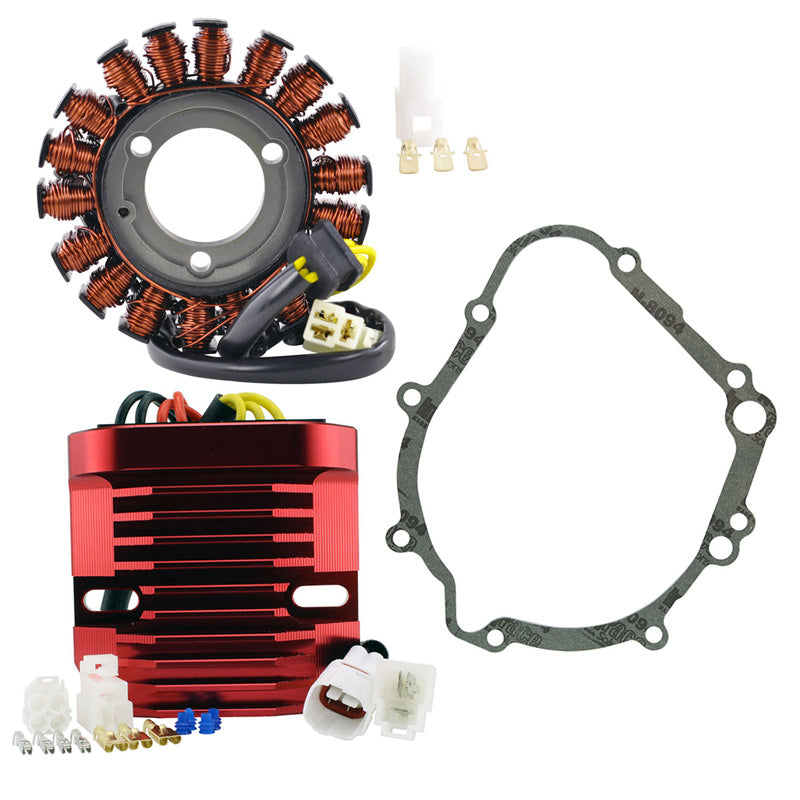

Brand new aftermarket Stator + Crankcase Cover Gasket + Mosfet Voltage Regulator Kit

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All shipped products are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Stator
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Stator crankcase cover gasket included
  • Connector included
  • Rubber grommet included

Brand new RMSTATOR Red Machined Aluminum Mosfet Regulator

Our new RMSTATOR machined aluminum Mosfet voltage regulator is a great upgrade for heat dissipation in any powersports charging system. After 10 minutes of use, our billet aluminum heatsink runs cooler by 33% than standard cast regulator housings. Our new RMSTATOR red regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.

STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up, it will simply turn off for a while and cool off.

  • The quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components

Why use Mosfet Enhanced technology?



Runs cooler

Runs much cooler than the traditional Shunt voltage regulator rectifier.


Saves gas

Less load on the stator, less work, less fuel is used and you save.


Regulated energy

The power charging your battery is steadier and smooth.




Extended battery life

Extends the battery’s life and cold cranking capacity.


More engine power

Removes stator load resulting in more engine power.


Optimized power

Optimize power delivery by switching the stator coils on or off.

RMSTATOR Enhanced technology=


With enhanced technologydesign

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

Specifications:

Stator dimension

Interior diameter: 38 mm
Exterior diameter: 107 mm
Thickness: 12 mm
Length of wires stator to grommet : 160 mm
Length of wires grommet to plug : 330 mm

Other specifications:
Number of wires:3
Number of plugs: 1
Number of pins: 3

Wire to wire resistance:
Alternator: Yellow to Yellow = 0.5 ohms +/-20%

Regulator dimension Width : 92 mm
Length : 92 mm
Height : 30 mm
Fixation holes center to center : 75 mm
Wires length: 300 mm

Other specifications :
Number of plugs : 2
Number of pins : 7
Number of wires : 7
Minimum Charging Voltage : 14.5 V +/- 0.5 V
Maximum Charging Current : 50 A / 500 W
Open Circuit Voltage : < 15 V
Operation Temperature : -20? C to 85? C

Warning:

Battery condition is extremely important. No stator, nor regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
KIT STATOR + CNC RED MACHINED ALUMINUM MOSFET REGULATOR + GASKET (SUZUKI)

$444.99

Product Specifications

General Information

Brandrms
LabelKIT GSX-R 600|750 06-09 2011-
Universemoto
Categorysysteme_de_charge
Supplier Part #RMS900-107319
ITL ID351-900236

Dimensions & Physical

Weight 0 lbs
Length0
Width0
Thickness0

Vehicle Fitment

Total Applications27
Applications POLARIS SCRAMBLER 850 2018SUZUKI GSX-R600 2006SUZUKI GSX-R600 2007SUZUKI GSX-R600 2008SUZUKI GSX-R600 2009SUZUKI GSX-R600 2011SUZUKI GSX-R600 2012SUZUKI GSX-R600 2013SUZUKI GSX-R600 2014SUZUKI GSX-R600 2015SUZUKI GSX-R600 2016SUZUKI GSX-R600 2017SUZUKI GSX-R600 2018SUZUKI GSX-R600 2019SUZUKI GSX-R750 2006SUZUKI GSX-R750 2007SUZUKI GSX-R750 2008SUZUKI GSX-R750 2009SUZUKI GSX-R750 2011SUZUKI GSX-R750 2012SUZUKI GSX-R750 2013SUZUKI GSX-R750 2014SUZUKI GSX-R750 2015SUZUKI GSX-R750 2016SUZUKI GSX-R750 2017SUZUKI GSX-R750 2018SUZUKI GSX-R750 2019
Makes POLARISSUZUKI
Models GSX-R600GSX-R750SCRAMBLER 850
Years 2006200720082009201120122013201420152016201720182019
