• KIT STATOR + ALUMINUM MOSFET REGULATOR (TRIUMPH)

KIT STATOR + ALUMINUM MOSFET REGULATOR (TRIUMPH)

KIT STATOR + ALUMINUM MOSFET REGULATOR (TRIUMPH)

Low stock! Only 1 left
$472.99
$472.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

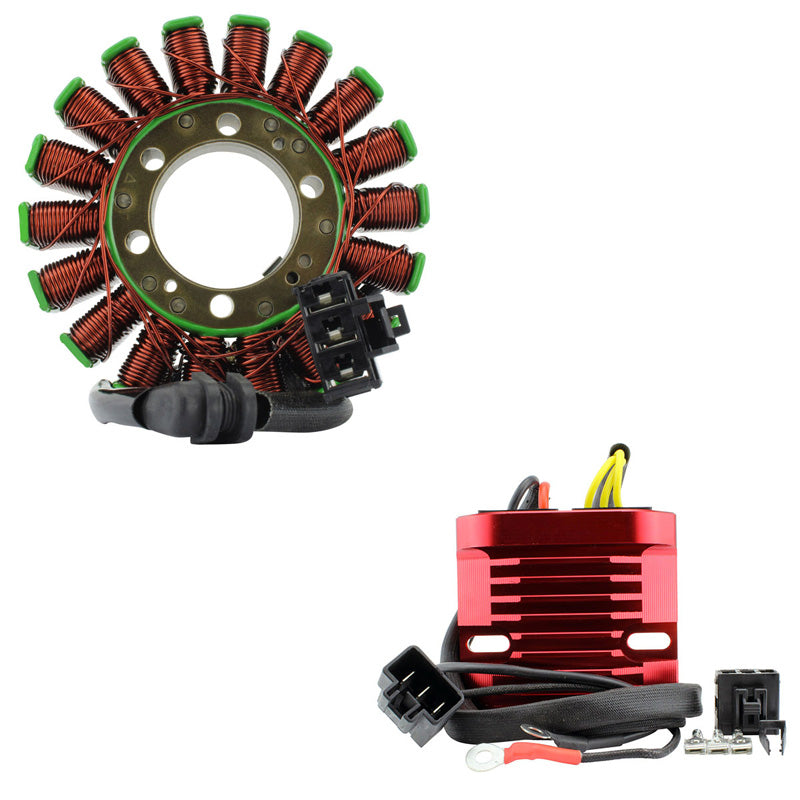

Brand new aftermarket Stator + Brand new RMSTATOR Red Machined Aluminum Mosfet Voltage Regulator Rectifier

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Connectors included
  • Rubber grommet included
  • All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Stator



  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
    • RMSTATOR Red Machined Aluminum Mosfet Voltage Regulator Rectifier







      We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

      All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

      Specifications:

      • No assembly required
      • Higher grade of electric components
      • Improved heat sink and charging capabilities
      • The quality exceeds the OEM equipment
      • Stator

        Dimensions:
        Interior diameter: 42 mm
        Exterior diameter: 115 mm
        Thickness: 18 mm
        Length of wires stator to grommet: 100 mm
        Length of wires grommet to plug: 200 mm

        Other specifications:
        Number of wires: 3
        Number of plugs: 1
        Number of pins: 3
        Number of poles: 18
        Wire to wire resistance:
        Alternator: Black to Black = 0.6 ohms +-20%
        Alternator: to ground = O.L

        RMSTATOR Red Machined Aluminum Mosfet Voltage Regulator Rectifier

        Dimensions:
        Width: 95 mm
        Length: 90 mm
        Height: 30 mm
        Wires length: 1010 mm & 350 mm
        Fixation holes center to center: 75 mm

        Other specifications:
        Number of plugs: 2
        Number of pins: 5
        Number of wires: 5
        Minimum Charging Voltage: 14.5 V +/- 0.5 V
        Maximum Charging Current: 50 A / 500 W
        Open Circuit Voltage: < 15 V
        Operation Temperature: -20° to 85°

        Warning:

        Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

        This special regulator bypasses the vehicle’s failure-prone wiring harness between the regulator and battery, and instead connects directly to the battery with ring terminals for the best possible connection. For Triumph fitments please check your stator to regulator connector as there were 2 versions used and select the correct one. Our possible part numbers are :

        • RMS022-106222
        • RMS022-107616

        Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

        Fitment notice:

        Please note That there are multiple possible stators for the 2007 to 2018 Street Triple. This stator will only fits on :

        Street Triple Standard This part will only fit Street Triple Standard with a VIN HIGHE

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
KIT STATOR + ALUMINUM MOSFET REGULATOR (TRIUMPH)

$472.99

Product Specifications

General Information

Brandrms
LabelKIT TRIUMPH STREET TRIPLE 675 08-17
Universemoto
Categorysysteme_de_charge
Supplier Part #RMS900-107636
ITL ID351-900250

Dimensions & Physical

Weight 0 lbs
Length5.1
Width2.4
Thickness6.3

Vehicle Fitment

Total Applications20
Applications POLARIS SCRAMBLER 1000 XP S EPS 2020TRIUMPH STREET TRIPLE 2008TRIUMPH STREET TRIPLE 2009TRIUMPH STREET TRIPLE 2010TRIUMPH STREET TRIPLE 2011TRIUMPH STREET TRIPLE 2012TRIUMPH STREET TRIPLE 2013TRIUMPH STREET TRIPLE 2014TRIUMPH STREET TRIPLE 2015TRIUMPH STREET TRIPLE 2016TRIUMPH STREET TRIPLE R 2009TRIUMPH STREET TRIPLE R 2010TRIUMPH STREET TRIPLE R 2011TRIUMPH STREET TRIPLE R 2012TRIUMPH STREET TRIPLE R 2013TRIUMPH STREET TRIPLE R 2014TRIUMPH STREET TRIPLE R 2015TRIUMPH STREET TRIPLE R 2016TRIUMPH STREET TRIPLE R 2017TRIUMPH STREET TRIPLE R 2018
Makes POLARISTRIUMPH
Models SCRAMBLER 1000 XP S EPSSTREET TRIPLESTREET TRIPLE R
Years 200820092010201120122013201420152016201720182020
