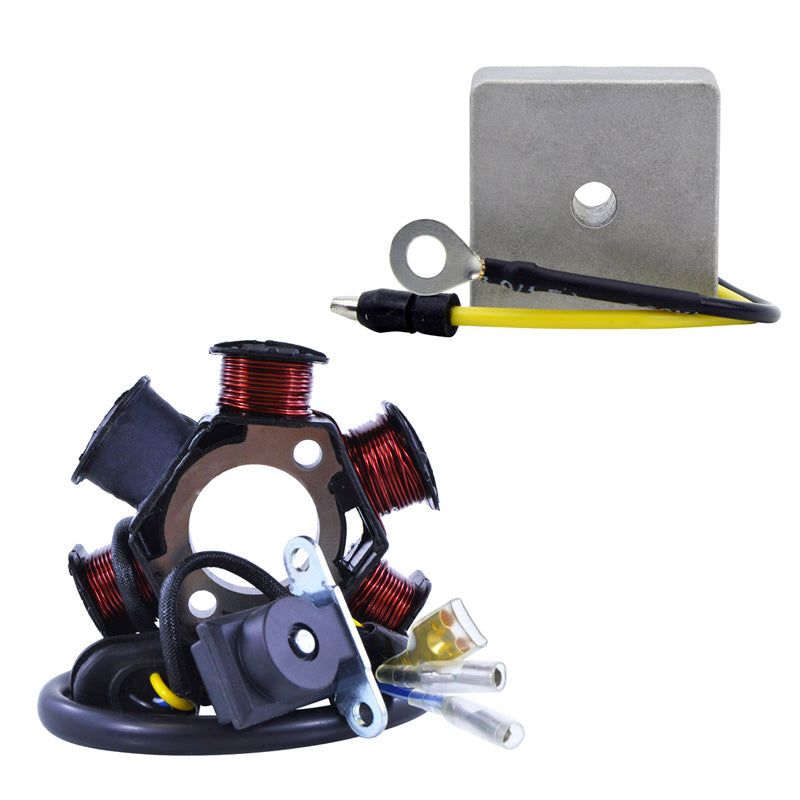

KIT LIGHTING STATOR + REGULATOR (HONDA)

Brand new Kit Lighting Stator + AC Voltage Regulator Rectifier

• All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part
• All products shipped are tested

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Rubber grommet included

• 12 Volts regulator used by Baja winners
• Heavy duty and improved regulator rectifier
• For use with all standard halogen and quartz lights
• Precise voltage control, eliminates light burnout
• Reduce flickering and dimming
• Simple installation
• Works with all other OEM part
• Rated at 225 watts

Specifications:

Stator Dimensions:
Interior diameter : 30 mm
Exterior diameter : 85 mm
Thickness : 32 mm
Length of wires stator to grommet : 185 mm
Length of wires grommet to terminals : 355 mm
Length of pickup coil's wire to grommet : 78 mm

Other specifications :
Number of wires : 3
Number of pins : 3

Wire to wire resistance :
Alternator : Yellow to Ground = 0.4 ohms +-20%
Pickup : Blue/Yellow to Ground = 120 ohms +-20%
Source : Black/Red to Ground = 500 ohms +-20%

Voltage Regulator Rectifier Dimensions:
Width : 45 mm
Length : 45 mm
Height: 20 mm

Other specifications :
Number of pins : 2
Minimum Charging Voltage: 13 V +/- 0.5 V
Maximum Charging Current: 6 A - 10 A / 50 W - 200 W
Open Circuit Voltage: <15 V
Operation Temperature: -20? to 85?

Please note : this regulator has two wires, yellow to power and black to ground.

Warning:

Please note: The OEM stator did not include a lighting coil because no lights come on the bike. If you would like to add a headlight and/or taillight, our stator includes a 100 Watt lighting coil between the Yellow wire and ground. The Black wire from the regulator needs to be grounded to the frame, and the Yellow wire is connected to the Yellow wire from the stator and also to your lights (the other side of your lights are grounded to the frame to complete the circuit). A new regulator must be used to support the lighting.

Please note: the body is different than the OEM (fix it with only one screw instead of two), but it works on the same models.
Please note: this regulator has two wires, yellow to power and black to ground.

This part can fits Mitsuba configuration

Battery condition is important. No stator or regulator can make up for a bad or weak battery. If in doubt, charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
