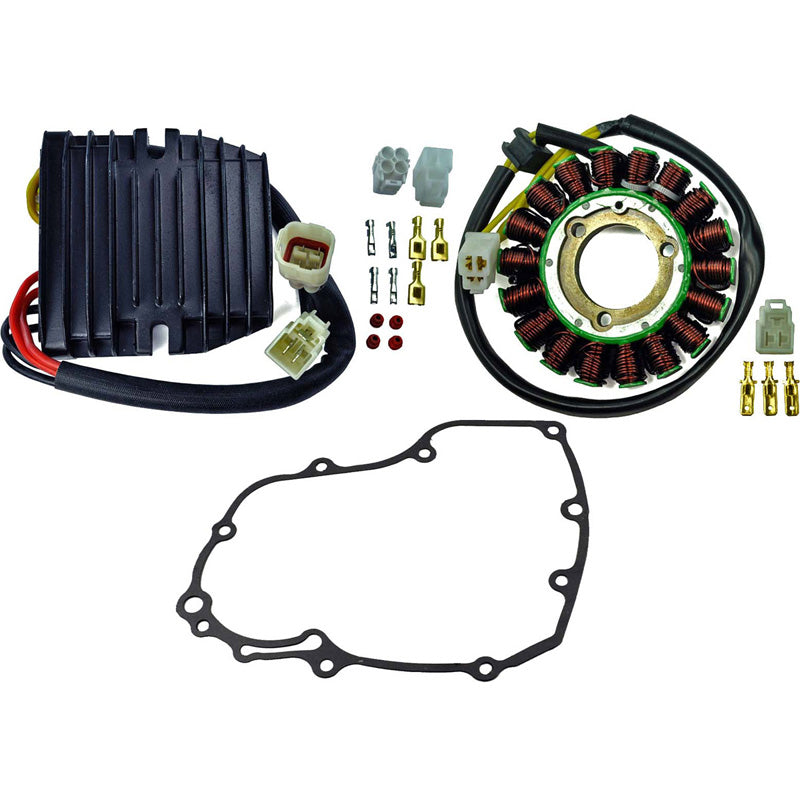

Brand-new stator + Mosfet voltage regulator rectifier + gasket kit.

  • Direct replacement to your original unit.
  • Plug-and-play, direct fit, easy installation.
  • All shipped products are tested.

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Stator

  • Highest grade of lamination materials.
  • Highest grade of copper winding, resistant to 200 degrees Celsius.
  • Connector included.
  • Rubber grommet included.
  • Gasket included.

At RMSTATOR, we believe that proper installation guarantees a longer lifetime. This is why we include, at no extra charge, a stator cover gasket and a dielectric grease tube.


Mosfet voltage regulator rectifier

STOP BURNING YOUR REGULATOR RECTIFIER!
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

  • The quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components



Why use Mosfet Enhanced technology?





Runs cooler

Runs much cooler than the traditional Shunt voltage regulator rectifier.


Saves gas

Less load on the stator, less work, less fuel is used and you save.

Regulated energy

The power charging your battery is steadier and smooth.




Extended battery life

Extends the battery’s life and cold cranking capacity.


More engine power

Removes stator load resulting in more engine power.

Optimized power

Optimize power delivery by switching the stator coils on or off.

Specifications:

Stator

Dimensions :
Interior diameter : 36mm
Exterior diameter : 106mm
Thickness : 8mm
Length of wires stator to grommet : 60mm
Length of wires grommet to plug : 315mm
Length of pickup coil's wire to grommet : N/A





Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Yellow Between each Yellow = 0.4 ohms +/-20%

Mosfet voltage regulator rectifier

Dimensions :
Width : 92mm
Length : 92mm
Height: 30mm
Wires length : 250mm
Fixation holes center to center : 75mm

Other specifications :
Number of plugs : 2
Number of wires : 7
Number of pins : 7





Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
KIT IMPROVED HEAVY DUTY STATOR + MOSFET VOLTAGE REGULATOR RECTIFIER + GASKET (SUZUKI)

$385.99

Product Specifications

General Information

Brandrms
LabelKIT SUZ GSX-R 600 750 06-17
Universemoto
Categorysysteme_de_charge
Supplier Part #RM22965
ITL ID351-900079

Dimensions & Physical

Weight 0 lbs
Length3
Width13
Thickness9.25

Vehicle Fitment

Total Applications26
Applications SUZUKI GSX-R600 2006SUZUKI GSX-R600 2007SUZUKI GSX-R600 2008SUZUKI GSX-R600 2009SUZUKI GSX-R600 2011SUZUKI GSX-R600 2012SUZUKI GSX-R600 2013SUZUKI GSX-R600 2014SUZUKI GSX-R600 2015SUZUKI GSX-R600 2016SUZUKI GSX-R600 2017SUZUKI GSX-R600 2018SUZUKI GSX-R600 2019SUZUKI GSX-R750 2006SUZUKI GSX-R750 2007SUZUKI GSX-R750 2008SUZUKI GSX-R750 2009SUZUKI GSX-R750 2011SUZUKI GSX-R750 2012SUZUKI GSX-R750 2013SUZUKI GSX-R750 2014SUZUKI GSX-R750 2015SUZUKI GSX-R750 2016SUZUKI GSX-R750 2017SUZUKI GSX-R750 2018SUZUKI GSX-R750 2019
Makes SUZUKI
Models GSX-R600GSX-R750
Years 2006200720082009201120122013201420152016201720182019
