• KIT HO STATOR + FLYWHEEL + M33 X 1.5 RH PULLER (YAMAHA)

KIT HO STATOR + FLYWHEEL + M33 X 1.5 RH PULLER (YAMAHA)

KIT HO STATOR + FLYWHEEL + M33 X 1.5 RH PULLER (YAMAHA)

Out of stock
$453.99
$453.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out

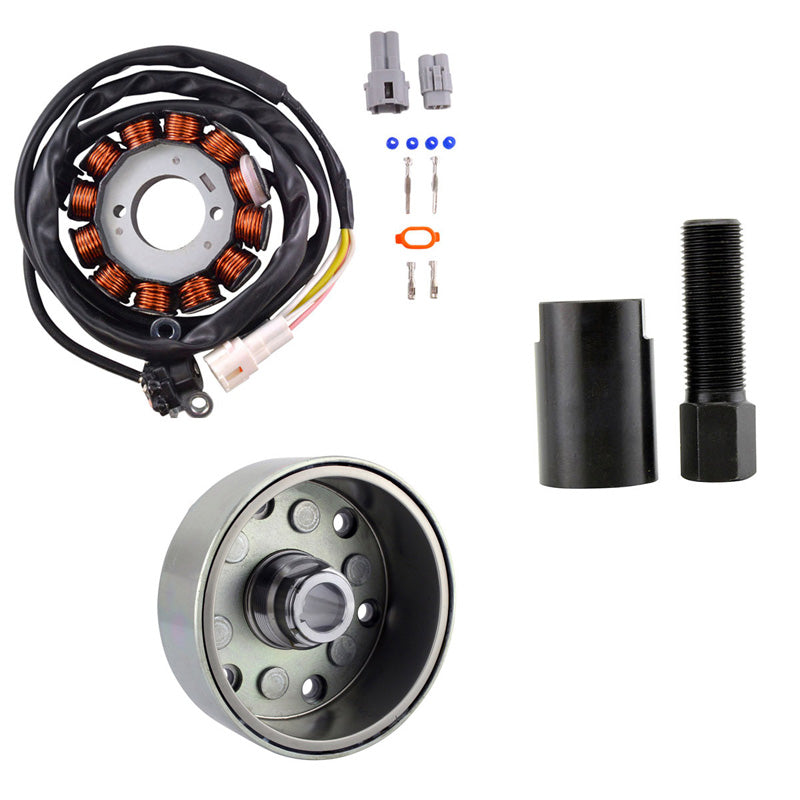

Brand New High Output Stator + Magneto Flywheel Rotor + Flywheel Puller

  • Direct replacement to your original unit
  • Pick up pulsar coil included
  • Connector included
  • Opposite connector included
  • Rubber grommet included
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • All products shipped are tested

High output stator generating 140W available for added accessories

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Specifications of Stator:

Dimensions:
Interior diameter: 30 mm
Exterior diameter: 84 mm
Thickness: 12 mm
Length of wires stator to grommet: 180 mm
Length of wires grommet to plug: 980 mm
Length of pickup coil's wire to grommet: 95 mm

Other specifications:
Number of wires: 4
Number of plugs: 2
Number of pins: 4

Wire to wire resistance:
Alternator: White to Yellow = 0.3ohms +/-20%
Pickup: White to Red = 264ohms =+/-20%

Specifications of Flywheel:

Dimensions:
Exterior Diameter: 100.4 mm
Interior Diameter: 86.5 mm
Interior Diameter Center Housing: 16 mm
Exterior Diameter Center Housing: 28 mm & 33 mm

Specifications of Puller:

Dimensions:
Length: 45.2 mm
Exterior Diameter: 30.17 mm
Interior Diameter: 23.14 mm
Exterior Diameter Center Housing: 15.19 mm

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replace

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelKIT YAM YFZ 450 04-13
Universevtt_utv
Categorysysteme_de_charge
Supplier Part #RMS900-108118
ITL ID351-900259

Dimensions & Physical

Weight 0 lbs
Length0
Width0
Thickness0

Vehicle Fitment

Total Applications1
Applications POLARIS SPORTSMAN 1000 XP HIGH LIFTER EPS 2017
Makes POLARIS
Models SPORTSMAN 1000 XP HIGH LIFTER EPS
Years 2017
