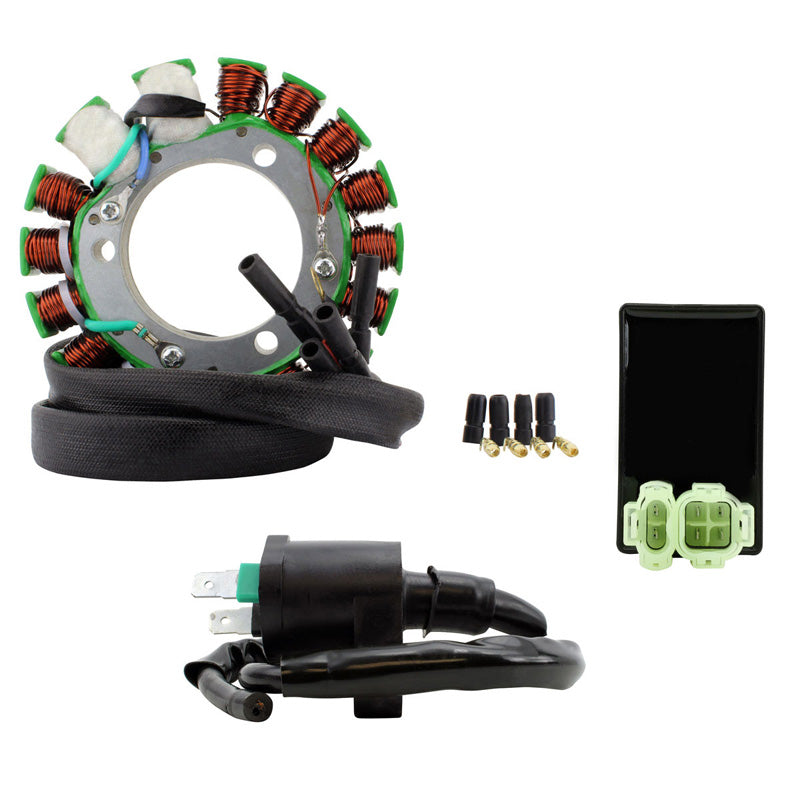

Brand new Kit High Output Stator 200W + PeakRPM CDI + External Ignition Coil

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All products shipped are tested

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Brand new aftermarket High output Stator 200W

  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • 2 x 100W
  • Connectors included
  • Rubber grommet included

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

Brand new aftermarket CDI box

  • Our PeakRPM CDI Box provides the optimal output for your ride
  • Higher grade of electronic components.
  • The quality exceeds the OEM equipment

Brand new aftermarket External Ignition Coil

  • You must re-install your OEM spark plug cap(s)
  • Once your OEM spark plug cap(s) are re-installed, our part becomes a Plug-and-play unit, direct fit, and easy to install.

Specifications:

High output Stator 200W

Dimensions:
Interior diameter: 54 mm
Exterior diameter: 115 mm
Thickness: 15 mm
Length of wires stator to grommet: 200 mm
Length of wires grommet to plug: 700 mm

Other specifications:
Number of wires: 5
Number of plugs: 5
Number of pins: 3
Number of poles: 17
Wire to wire resistance:
Alternator: White to Green = 0.4 ohms +-20%
Alternator: Yellow to Red = 0.4 ohms +-20%
Source: Black/Red to Green = 140 ohms +-20%

High performance CDI Box

Dimensions:
Height: 22mm
Length: 66mm
Width: 42mm

Other specifications:
Number of plugs: 2
Number of pins: 6

Please note that: The only real way to test your CDI box is to swap it out with another known good unit from the same year/make/model. Because of this, we recommend that you rule everything else out before replacing the CDI box..

External Ignition Coil

N/A

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelKIT HON XR 600 R 88-00
Universemoto
Categorysysteme_de_charge
Supplier Part #RMS900-107583
ITL ID351-900243

Dimensions & Physical

Weight 0 lbs
Length0
Width0
Thickness0

Vehicle Fitment

Total Applications11
Applications HONDA XR600R 1990HONDA XR600R 1991HONDA XR600R 1992HONDA XR600R 1993HONDA XR600R 1994HONDA XR600R 1995HONDA XR600R 1996HONDA XR600R 1997HONDA XR600R 1998HONDA XR600R 1999POLARIS SPORTSMAN 850 HIGH LIFTER EPS 2019
Makes HONDAPOLARIS
Models SPORTSMAN 850 HIGH LIFTER EPSXR600R
Years 19901991199219931994199519961997199819992019
