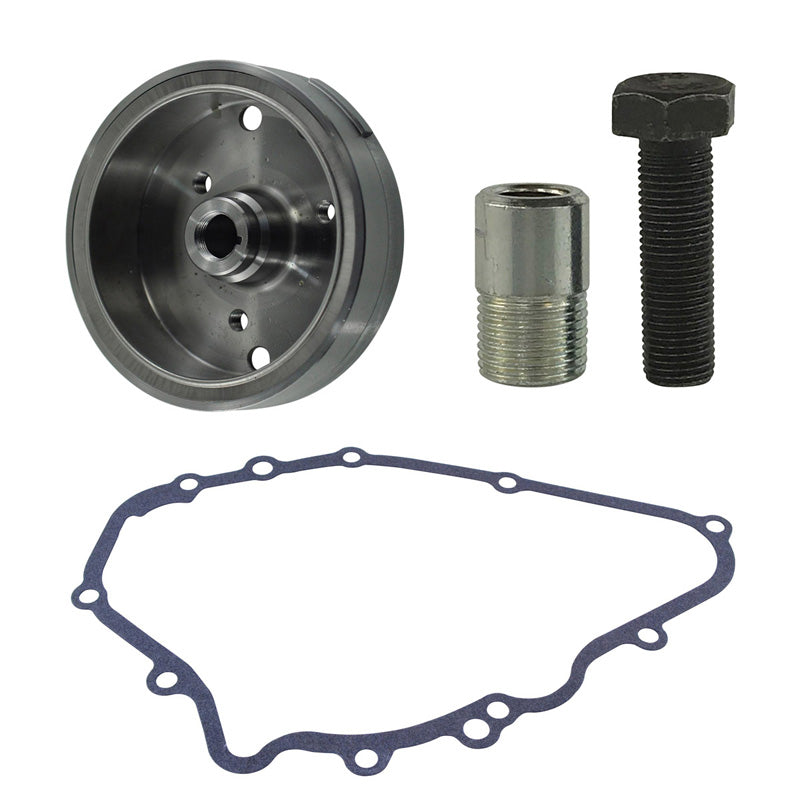

Brand New Kit Flywheel + Gasket + Flywheel Puller

  • All shipped products are tested

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Magneto Flywheel Rotor

Introducing our newest heavy duty flywheel rotor for Kawasaki 450 & 500 cc Motorcycles.

Anyone who rides or repairs a Kawasaki 450 & 500 cc Motorcycles is probably familiar with the flywheel problems common to these models. Most of these bikes will have at least one flywheel failure in their lifetime so far. Low quality epoxy was used on OEM flywheels to secure the magnets to the rotor body. Over time and many heat cycles, the epoxy fails allowing the magnets to come loose and contact the stator, potentially causing catastrophic damage.

For years, service shops & dealerships have offered low cost repairs for Kawasaki flywheels to save the 400$+ OEM replacement. This sounds like a great idea at first, but there are some serious issues!

The common repair is using JB Weld© Marine Blue Epoxy to reattach the loose original magnets, or to install new ones. Epoxy fixes do repair flywheels in short term, if they are done correctly. However, this kind of repair can easily cause immediate problems, and impact long term reliability of your ATV.




A Heavy Duty Flywheel to the rescue!

New RMSTATOR&trade heavy-duty flywheel rotor for Kawasaki Motorcycles is a well-priced solution to problems with the OEM flywheel, and an excellent alternative to all the mechanical troubles you can encounter with a repair.

Features

  • Built to OEM size
    Fits precisely in your ride: install it and forget it.

  • Improved epoxy
    Uses high temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment.

  • High grade steel capping
    Prevents harsh additives in motor oil from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator.

  • Precise balancing
    Eliminates crankshaft vibrations for longer engine longevity

  • Shop with confidence
    All products are tested.

Don't waste time with temporary solutions, and start fixing your ride like a pro!





Why cheap repairs won't work?

Quick stronger epoxy fixes do repair flywheels in short term. It might however impair long term performance and reliability of your ride.

Remaining OEM magnets:
Original magnets remaining can still come loose at any time.

Magnet alignment:
The alignment of magnets around the flywheel is critical for proper stator operation. Even very fine misalignment will reduce stator efficiency significantly.

Magnet spacing:
Excessive epoxy or incorrect magnet spacing around the flywheel can easily affect the flywheel balance. This can cause stator contact or even crankshaft damage.



Incorrect replacement magnets:
The magnetic field strength of new magnets MUST match the originals. Stator failure can occur quickly with stronger magnets and stator output can be decreased significantly using weaker magnets.

Wrong epoxy properties:
Epoxy that is not rated to permanently handle high temperatures and oil immersion can quickly cause a serious failure.

Oil contamination:
Wrong epoxy for the application can also contaminate the crankcase oil, damaging the motor.

All these reasons make us strongly recommend that you replace your broken flywheel with a new 400+ OEM one or our new heavy duty flywheel.

Flywheel Puller MP#18

  • 18 mm x 1.5 hand male
  • Includes crankshaft thread protector cap

PLEASE CHECK IF YOUR MAKE/MODEL IS COMPATIBLE IN THE "FITS MODELS" TAB BEFORE BUYING

Specifications:

Magneto Flywheel Rotor Dimensions:
Exterior Diameter: 129 mm
Interior Diameter: 106 mm
Interior Diameter Center Housing: 16 mm
Exterior Diameter Center Housing: 25 mm
Thickness (exterior): 42 mm
Thickness (interior): 33 mm

Flywheel Puller Dimensions:
Length: 30 mm
Exterior Diameter: 18 mm
Interior Diameter: 10.95 mm

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelKIT KAW VULCAN 500|NINJA 500 85-96
Universemoto
Categorysysteme_de_charge
Supplier Part #RMS900-104872
ITL ID351-900191

Dimensions & Physical

Weight 0 lbs
Length0
Width0
Thickness0

Vehicle Fitment

Total Applications18
Applications KAWASAKI EN450-A 454 LTD 1985KAWASAKI EN450-A 454 LTD 1986KAWASAKI EN450-A 454 LTD 1987KAWASAKI EN450-A 454 LTD 1988KAWASAKI EN450-A 454 LTD 1989KAWASAKI EN450-A 454 LTD 1990KAWASAKI EN500-A VULCAN 1991KAWASAKI EN500-A VULCAN 1992KAWASAKI EN500-A VULCAN 1993KAWASAKI EN500-A VULCAN 1994KAWASAKI EN500-A VULCAN 1995KAWASAKI EN500-C VULCAN LTD 1996KAWASAKI EX500-A EX 1987KAWASAKI EX500-A EX 1988KAWASAKI EX500-A EX 1989KAWASAKI EX500-A EX 1990KAWASAKI EX500-A EX 1991KAWASAKI EX500-A EX 1992
Makes KAWASAKI
Models EN450-A 454 LTDEN500-A VULCANEN500-C VULCAN LTDEX500-A EX
Years 198519861987198819891990199119921993199419951996
