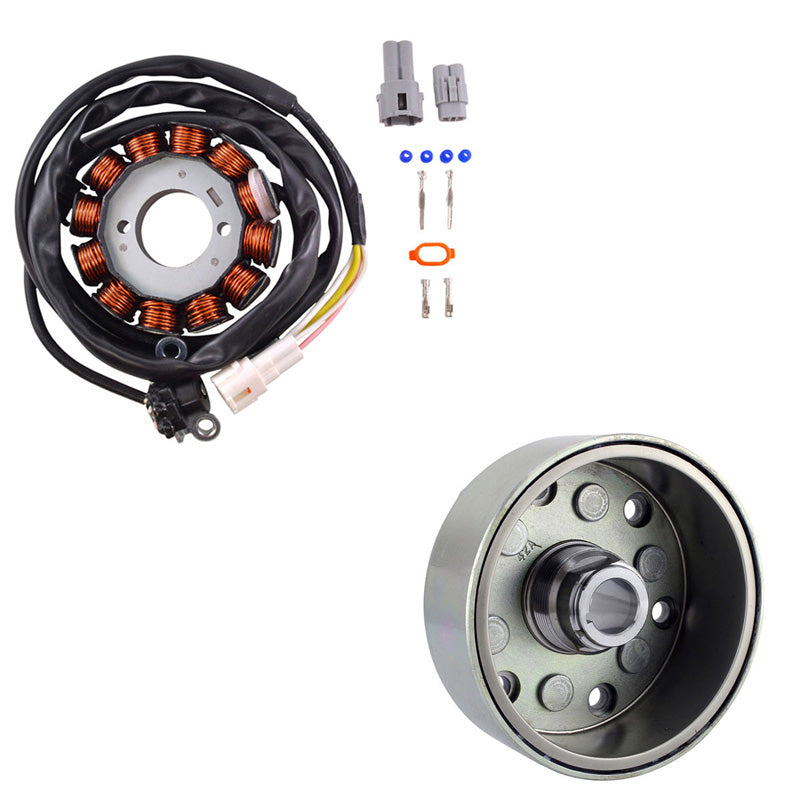

Brand-new high output stator + magneto flywheel rotor.

  • Direct replacement to your original unit.
  • Pick up pulsar coil included.
  • Connector included.
  • Opposite connector included.
  • Rubber grommet included.
  • Highest-grade lamination materials.
  • Highest-grade copper windings, resistant to 200 degrees Celsius.
  • All products shipped are tested.

High output stator generating 140 W available for added accessories.

We have included the opposite connector (main harness side) because we know that the connector is often melted/corroded/defective and a major cause of electrical problems.

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Specifications of stator:

Dimensions:
Interior diameter: 30 mm
Exterior diameter: 84 mm
Thickness: 12 mm
Length of wire stator to grommet: 180 mm
Length of wire grommet to plug: 980 mm
Length of pickup coil's wire to grommet: 95 mm

Other specifications:
Number of wires: 4
Number of plugs: 2
Number of pins: 4

Wire to wire resistance:
Alternator: white to yellow = 0.3 ohms +/-20%
Pickup: white to red = 264 ohms =+/-20%



Specifications of flywheel:

Dimensions:
Exterior diameter: 100.4 mm
Interior diameter: 86.5 mm
Interior diameter centre housing: 16 mm
Exterior diameter centre housing: 28 mm and 33 mm

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
