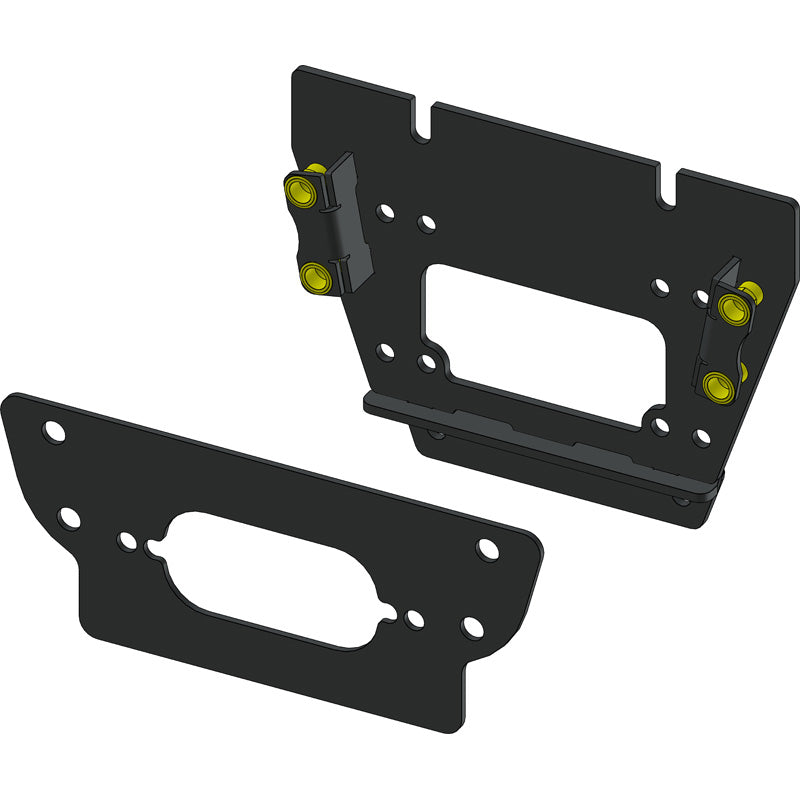

• KAWASAKI TERYX WINCH MOUNT

KAWASAKI TERYX WINCH MOUNT

KAWASAKI TERYX WINCH MOUNT

3 in stock
$111.99
$111.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

!! NOTICE !! The KRX 4 will require the purchase of #UTV-WEK (Wire Extension Kit) Due to location of battery.

If you have a 2-Hole winch you will need to purchase additional Part #100480

Mount Designed to work with the following Winches:

  • KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
  • KFI: AM-25 / AM-35 / AS-25 / AS-35
  • KFI: AS-50 / AS-50w
  • WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
  • WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
  • WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
  • WARN: RT40 / XT40
  • WARN: Vantage 2000-3000lbs / Provantage 2500-3500lbs
  • WARN: Vantage 4000lbs / Provantage 4500lbs (Will use WIDE fairlead that comes with your winch.)
  • RAMSEY: ATV2500 / ATV3000
  • SUPERWINCH: Terra25 / Terra35 / Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / A3500 / LT2000 / UT3000 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV
  • MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
  • CYCLE COUNTRY: Work Power 2500 / Powermax 2500 and 3500
  • BADLAND: 2-Hole Winche
  • BADLAND: Standard Winches
  • BADLAND: WIDE Winches
  • CHAMPION: 2-Hole Winches
  • CHAMPION: Standard Winches
  • CHAMPION: WIDE Winches
  • KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
  • KEEPER CORP. TRAKKER: KT2000
    • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
  • SMITTYBILT: XRC 2.
  • SMITTYBILT: XRC 3.0 / XRC 4.0
  • XGEAR: X3000 / X4000
  • VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
    • All with 3.00" x 4.875" Bolt Pattern mount-up
    • All with 3.00" x 6.600" Bolt Pattern mount-up
  • Traveller: 1078311
  • Traveller: 1078088 / 1078302
    • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
  • Possibly many others with the below standard mounting patterns, call to confirm.
    • 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
    • 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
    • 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
      • Requires additional part #100480
  • QUADBOSS: RP25 / RP35

Specifications:

  • 100% MADE IN USA.
  • Plate Constructed of 3/16" steel.
  • Fairlead bracket constructed of 10ga steel.
  • Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
  • Powder coated black for supreme durability.
  • Very easy to install.
  • Complete installation instructions included.
  • All mounting hardware included.
  • Satisfaction guaranteed.
  • Roller fairlead and winch not included.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
KAWASAKI TERYX WINCH MOUNT

$111.99

Product Specifications

General Information

Brandkfi
LabelKAWASAKI 2020 TERYX 1000 WINCH MOUNT
Universevtt_utv
Categorypieces_et_accessoires_pour_treuils
Supplier Part #101805
ITL ID179-101805

Dimensions & Physical

Weight 6.261 lbs
Length12
Width8
Thickness4

Vehicle Fitment

Total Applications28
Applications KAWASAKI KRF1000 TERYX KRX1000 EPS 2020KAWASAKI KRF1000 TERYX KRX1000 EPS 2021KAWASAKI KRF1000 TERYX KRX1000 EPS 2022KAWASAKI KRF1000 TERYX KRX1000 EPS 2023KAWASAKI KRF1000 TERYX KRX1000 EPS 2024KAWASAKI KRF1000 TERYX KRX1000 EPS 2025KAWASAKI KRF1000 TERYX KRX1000 ES EPS 2022KAWASAKI KRF1000 TERYX KRX1000 ES EPS 2023KAWASAKI KRF1000 TERYX KRX1000 ES EPS 2024KAWASAKI KRF1000 TERYX KRX1000 ES EPS 2025KAWASAKI KRF1000 TERYX KRX1000 SE EPS 2021KAWASAKI KRF1000 TERYX KRX1000 SE EPS 2022KAWASAKI KRF1000 TERYX KRX1000 SE EPS 2023KAWASAKI KRF1000 TERYX KRX1000 SE EPS 2024KAWASAKI KRF1000 TERYX KRX1000 TRAIL EPS 2021KAWASAKI KRF1000 TERYX KRX1000 TRAIL EPS 2022KAWASAKI KRF1000 TERYX KRX1000 TRAIL EPS 2023KAWASAKI KRF1000 TERYX KRX1000 TRAIL EPS 2024KAWASAKI KRF1000 TERYX KRX1000 TRAIL EPS 2025KAWASAKI KRT1000 TERYX KRX 1000 BLACKOUT EPS 2025KAWASAKI KRT1000 TERYX KRX 1000 LIFTED EPS 2025KAWASAKI KRT1000 TERYX4 KRX1000 ES SE EPS 2023KAWASAKI KRT1000 TERYX4 KRX1000 ES SE EPS 2024KAWASAKI KRT1000 TERYX4 KRX1000 SE EPS 2023KAWASAKI KRT1000 TERYX4 KRX1000 SE EPS 2024KAWASAKI KRT1000E TERYX KRX4 1000 EPS 2025KAWASAKI KRT1000H TERYX KRX4 1000 BLACKOUT EPS 2025KAWASAKI KRT1000J TERYX KRX4 1000 LIFTED EPS 2025
Makes KAWASAKI
Models KRF1000 TERYX KRX1000 EPSKRF1000 TERYX KRX1000 ES EPSKRF1000 TERYX KRX1000 SE EPSKRF1000 TERYX KRX1000 TRAIL EPSKRT1000 TERYX KRX 1000 BLACKOUT EPSKRT1000 TERYX KRX 1000 LIFTED EPSKRT1000 TERYX4 KRX1000 ES SE EPSKRT1000 TERYX4 KRX1000 SE EPSKRT1000E TERYX KRX4 1000 EPSKRT1000H TERYX KRX4 1000 BLACKOUT EPSKRT1000J TERYX KRX4 1000 LIFTED EPS
Years 202020212022202320242025
