INTERNAL ROTOR IGNITION WITH LIGHT

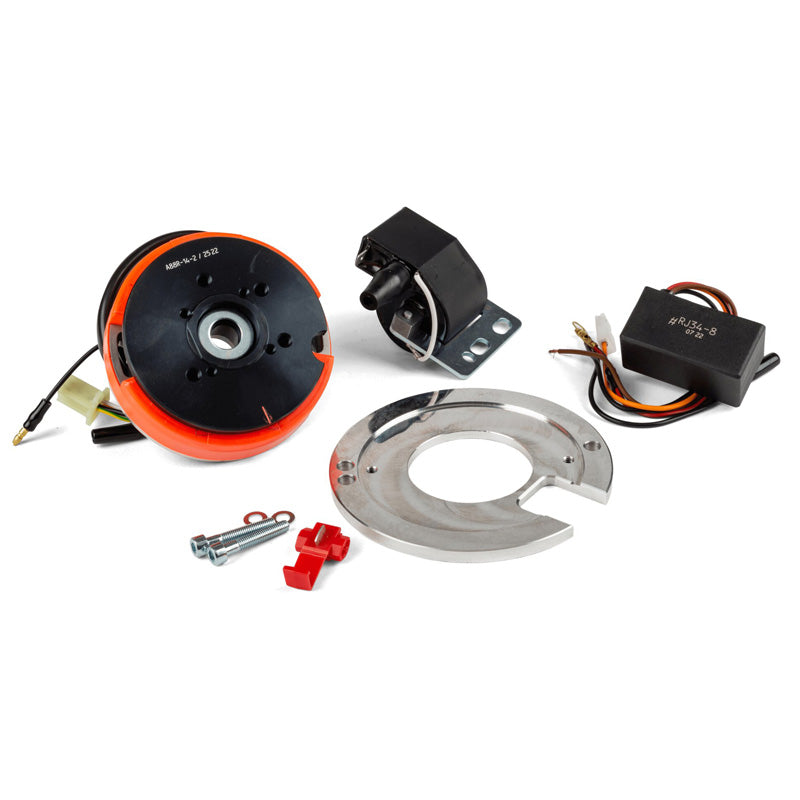

MVT Digital Direct 19 internal rotor ignition with light for Minarelli engines after 2004.

MVT DIGITAL DIRECT - TOP PERFORMANCE PLUS LIGHT

The MVT Digital Direct (short "MVT DD") is a digital internal rotor ignition with variable ignition timing, i.e. the ignition timing changes via the CDI depending on the engine speed to offer maximum power at any given time. It is primarily intended for use with racing or high-end setups of 70cc and more.

The main advantage of the MVT DD ignition is that it comes with a 12-volt 55-watt output. Unlike with many other internal rotor ignitions, you can retain lighting and on-board electronics with this ignition. Performance is noticeably improved, especially in terms of power band and responsivity.

SPECIFICATIONS:

  • Power: 60W
  • Ignition voltage: 42kV
  • Max. Speed: 22.000rpm

ADJUSTING AND CALIBRATING THE MVT DD IGNITION

  • First remove the original ignition and properly install the MVT Digital Direct ignition. Do not tighten the stator and rotor until the ignition has been adjusted.
  • Using a micrometer or a TDC dial indicator, set the following parameters: for original stroke 0.4 mm before TDC, for long stroke 0.35 mm.
  • Then connect the ignition to the wiring harness so that the vehicle lighting works (see assembly instructions).

If you need even more power, you can combine the ignition with the MVT Eprom Box to select an appropriate ignition curve.

We recommend to use a racing spark plug and a carburetor with at least 19 mm diameter.

REQUIREMENTS

    • A micrometer for precise ignition adjustment
    • A charged 12 volt battery.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
INTERN.ROTOR IGNITION MVT DIGITAL DIRECT W/LIGHT

$584.99

Product Specifications

General Information

Brandmvt
LabelINTERN.ROTOR IGNITION MVT DIGITAL DIRECT W/LIGHT
Universescooter
Categoryallumage
Supplier Part #MVT-DD19
ITL ID423-DD19

Dimensions & Physical

Weight 3.75 lbs
Length10
Width5.75
Thickness2.75

Vehicle Fitment

Total Applications10
Applications YAMAHA YW50 BW'S NEXT 2002YAMAHA YW50 BW'S NEXT 2003YAMAHA YW50 BW'S NEXT 2004YAMAHA YW50 BW'S NEXT 2005YAMAHA YW50 BW'S NEXT 2006YAMAHA YW50 BW'S NEXT 2007YAMAHA YW50 BW'S NEXT 2008YAMAHA YW50 BW'S NEXT 2009YAMAHA YW50 BW'S NEXT 2010YAMAHA YW50 BW'S NEXT 2011
Makes YAMAHA
Models YW50 BW'S NEXT
Years 2002200320042005200620072008200920102011
