Recall-Type Stator + Kokusan Flywheel Rotor + Gasket + Puller For Aprilia 2009-2020 RSV4 & 2011-2020 Tuono V4 Repl.# 2D000049 897479

Introducing our newest heavy-duty recall-type charging system upgrade kit for Aprilia 2009-2020 RSV4 & 2011-2020 Tuono V4.

Anyone who rides or repairs Aprilia's motorcycles is probably familiar with the stator, flywheel, and sometimes voltage regulator issues common to these models. Most of these bikes will have had at least one stator fail in its lifetime so far. The main problem was extremely strong magnets were used on the original flywheels, creating a very high power stator output, which generated excessive heat. This usually resulted in burned up, or shorted stator winding, and often in a failed voltage regulator.

The solution was a new flywheel from Kokusan with lower strength magnets, dropping the stator output and heat generation. This results in a charging system output perfectly matched for the bike's electronic needs, and long term reliability of the stator and voltage regulator.

To prevent or correct the flywheel problems, our engineers at RMS Labs have come up with a complete reliable heavy-duty charging system replacement kit for your Aprilia. Upgrade today if you haven't already!

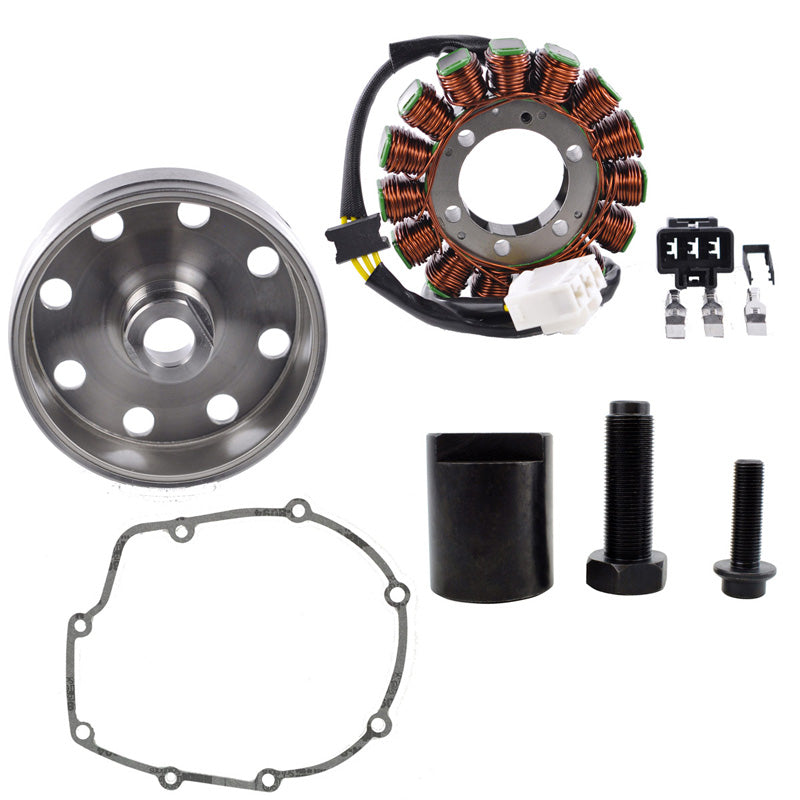

Included in this kit



  • Heavy-duty Kokusan brand recall-type OEM flywheel
  • Triple-tested heavy-duty stator
  • Stator crankcase cover gasket
  • Flywheel puller



With this kit, you will be able to upgrade your current failure-prone charging system with a heavy-duty version using the latest technologies



Features



Kokusan upgrade/recall type flywheel

Lower-strength magnets for correct stator output, low heat generation, and long-term reliability.

Built to OEM size

Fits precisely in your ride: install it and forget it.

Improved epoxy

Uses high temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment

High grade steel capping

Prevents harsh additives in motor oil from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator.

Precise balancing

Eliminates crankshaft vibrations for longer engine longevity.

Shop with confidence

All products are tested.

Don't waste time with temporary solutions, and start fixing your ride like a pro!

Specifications:

Stator Dimensions
Interior diameter : 43 mm
Exterior diameter : 105 mm
Thickness : 13.8 mm
Length of wires stator to grommet : 125 mm
Length of wires grommet to plug : 320 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Between each Yellow = 0.3 ohms +-20%

Flywheel Dimensions
Exterior Diameter: 121 mm
Interior Diameter: 107 mm
Interior Diameter Center Housing: 19 mm
Exterior Diameter Center Housing: 34 mm
Thickness (exterior): 35.3 mm
Thickness (interior): 31.65 mm

Flywheel Puller Specifications
36 mm x 1.5 right hand male
Length: 60 mm
Exterior Diameter: 48 mm
Interior Diameter: 35 mm
Exterior Diameter Center Housing: 37 mm

Fitment notice:

Please note: There are two possible kits for RSV4 engine. This kit ONLY fits RSV4 engine numbers HIGHER than 3413 with KOKUSAN flywheels. Please compare our flywheel to your original.

If your RSV4 engine number is LOWER than 3413, your m

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelKIT APRILIA RSV4|TUONO V4 100/ 1100 11-20
Universemoto
Categorysysteme_de_charge
Supplier Part #RMS900-103880
ITL ID351-900179

Dimensions & Physical

Weight 4.1 lbs
Length0
Width0
Thickness0

Vehicle Fitment

Total Applications18
Applications APRILIA RSV4 FACTORY 2019APRILIA RSV4 FACTORY 2020APRILIA RSV4 R 2012APRILIA RSV4 RF 2016APRILIA RSV4 RF 2017APRILIA RSV4 RF 2018APRILIA RSV4 RR 2016APRILIA RSV4 RR 2017APRILIA RSV4 RR 2018APRILIA RSV4 RR 2019APRILIA TUONO V4 1100 FACTORY 2016APRILIA TUONO V4 1100 FACTORY 2017APRILIA TUONO V4 1100 FACTORY 2019APRILIA TUONO V4 1100 FACTORY 2020APRILIA TUONO V4 R APRC 2012APRILIA TUONO V4 R APRC 2013APRILIA TUONO V4 R APRC 2014APRILIA TUONO V4 R APRC 2015
Makes APRILIA
Models RSV4 FACTORYRSV4 RRSV4 RFRSV4 RRTUONO V4 1100 FACTORYTUONO V4 R APRC
Years 201220132014201520162017201820192020
