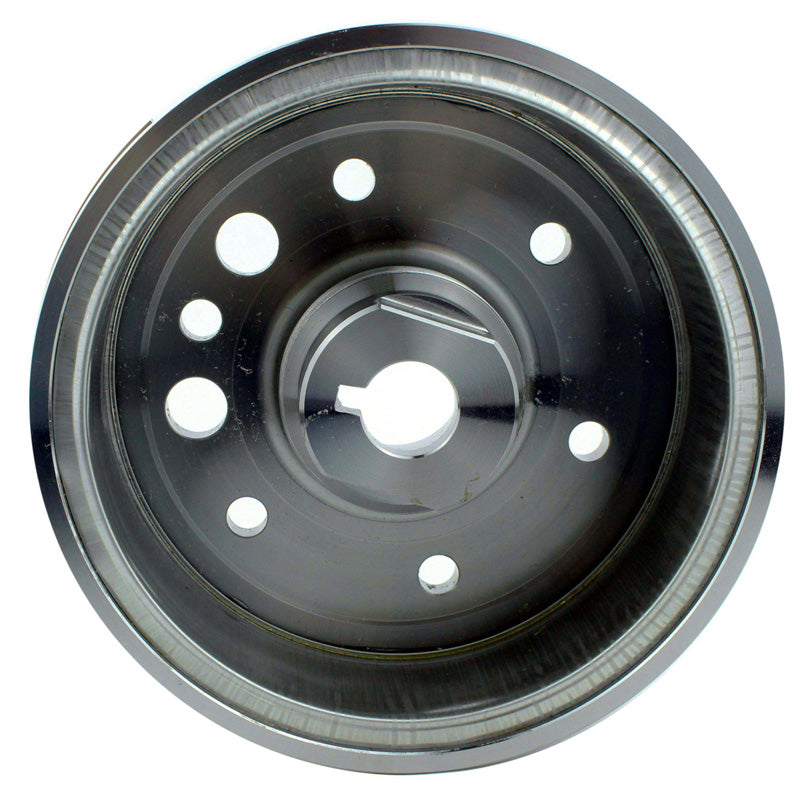

IMPROVED MAGNETO FLYWHEEL ROTOR

IMPROVED MAGNETO FLYWHEEL ROTOR

6 in stock


Regular price $147.99
Sale price $147.99 Regular price
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088


  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Have you considered buying in kits including stator, puller and more ?

This product was featured in ATV Illustrated Magazine



Improved Magneto Flywheel Rotor

RMSTATOR is offering a new improved replacement flywheel for your Suzuki and Arctic Cat. This flywheel can be used as a direct replacement to the OEM.

  • All products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part

What is improved about the RM11502 flywheel?

2002-2007 Suzuki Eiger 400 and 2003-2008 Arctic Cat 400 ATVs are plagued with problems on the original flywheels. The additives in the motor oil were dissolving the epoxy that holds the magnets in the flywheel, causing them to detach and scatter throughout the engine.

1 EXPOSED EPOXY
2 DETACHED MAGNET

The bad news is that by the time the problem occurred, no manufacturer would provide warranty repairs.

The good news is that RMSTATOR has manufactured a redesigned flywheel where the magnets are sealed in the flywheel, which reinforces the epoxy and prevents them from detaching. This new flywheel configuration corrects the problem permanently.

Dealership estimates to repair this failure are over $500 in parts alone. RMSTATOR offers you a high quality replacement part that corrects the problem for half the price. The RM11502 flywheel is not only a cost effective way to replace your failed Suzuki or Arctic Cat flywheel, but a great investment when replaced before the failure occurs.

3 SEAL THAT PROTECTS THE MAGNET’S EPOXY FROM OIL ADDITIVES

original-flywheel


improved-flywheel

Specifications:

Dimensions:

Exterior Diameter: 143 mm
Interior Diameter: 120 mm
Interior Diameter Center Housing: 18 mm
Exterior Diameter Center Housing: 42 mm
Thickness (exterior): 12 mm
Thickness (interior): 13 mm




Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

IMPROVED MAGNETO FLYWHEEL ROTOR

$147.99

Product Specifications

General Information

Brandrms
LabelFLYWHEEL SUZ LT-A400|A-C 375 400 TBX|TRV 02-08
Universevtt_utv
Categorysysteme_de_charge
Supplier Part #RM11502
ITL ID351-120002

Dimensions & Physical

Weight 4.64 lbs
Length2.2
Width6.7
Thickness6.9

Vehicle Fitment

Total Applications50
Applications ARCTIC CAT 375 2X4 AUTOMATIC 2002ARCTIC CAT 375 4X4 AUTOMATIC 2002ARCTIC CAT 400 2X4 AUTOMATIC FIS 2003ARCTIC CAT 400 2X4 AUTOMATIC FIS 2004ARCTIC CAT 400 2X4 MANUAL FIS 2003ARCTIC CAT 400 2X4 MANUAL FIS 2004ARCTIC CAT 400 4X4 AUTOMATIC 2003ARCTIC CAT 400 4X4 AUTOMATIC 2004ARCTIC CAT 400 4X4 AUTOMATIC 2005ARCTIC CAT 400 4X4 AUTOMATIC FIS 2003ARCTIC CAT 400 4X4 AUTOMATIC FIS 2004ARCTIC CAT 400 4X4 AUTOMATIC FIS 2005ARCTIC CAT 400 4X4 AUTOMATIC FIS 2006ARCTIC CAT 400 4X4 AUTOMATIC FIS 2007ARCTIC CAT 400 4X4 AUTOMATIC FIS 2008ARCTIC CAT 400 4X4 AUTOMATIC TBX 2004ARCTIC CAT 400 4X4 AUTOMATIC TBX 2005ARCTIC CAT 400 4X4 AUTOMATIC TBX 2006ARCTIC CAT 400 4X4 AUTOMATIC TRV 2006ARCTIC CAT 400 4X4 AUTOMATIC TRV 2007ARCTIC CAT 400 4X4 AUTOMATIC TRV 2008ARCTIC CAT 400 4X4 AUTOMATIC VP 2005ARCTIC CAT 400 4X4 AUTOMATIC VP 2006ARCTIC CAT 400 4X4 MANUAL 2003ARCTIC CAT 400 4X4 MANUAL 2004ARCTIC CAT 400 4X4 MANUAL 2006ARCTIC CAT 400 4X4 MANUAL FIS 2003ARCTIC CAT 400 4X4 MANUAL FIS 2004ARCTIC CAT 400 4X4 MANUAL FIS 2005ARCTIC CAT 400 4X4 MANUAL FIS 2006ARCTIC CAT 400 4X4 MANUAL FIS 2007ARCTIC CAT 400 4X4 MANUAL FIS 2008ARCTIC CAT 400 4X4 MANUAL VP 2005ARCTIC CAT 400 4X4 MANUAL VP 2006SUZUKI LT-A400 - EIGER AUTO 2WD 2003SUZUKI LT-A400 - EIGER AUTO 2WD 2004SUZUKI LT-A400F - EIGER AUTO 4WD 2002SUZUKI LT-A400F - EIGER AUTO 4WD 2003SUZUKI LT-A400F - EIGER AUTO 4WD 2004SUZUKI LT-A400F - EIGER AUTO 4WD 2005SUZUKI LT-A400F - EIGER AUTO 4WD 2006SUZUKI LT-A400F - EIGER AUTO 4WD 2007SUZUKI LT-F400 - EIGER 2WD 2003SUZUKI LT-F400 - EIGER 2WD 2004SUZUKI LT-F400F - EIGER 4WD 2002SUZUKI LT-F400F - EIGER 4WD 2003SUZUKI LT-F400F - EIGER 4WD 2004SUZUKI LT-F400F - EIGER 4WD 2005SUZUKI LT-F400F - EIGER 4WD 2006SUZUKI LT-F400F - EIGER 4WD 2007
Makes ARCTIC CATSUZUKI
Models 375 2X4 AUTOMATIC375 4X4 AUTOMATIC400 2X4 AUTOMATIC FIS400 2X4 MANUAL FIS400 4X4 AUTOMATIC400 4X4 AUTOMATIC FIS400 4X4 AUTOMATIC TBX400 4X4 AUTOMATIC TRV400 4X4 AUTOMATIC VP400 4X4 MANUAL400 4X4 MANUAL FIS400 4X4 MANUAL VPLT-A400 - EIGER AUTO 2WDLT-A400F - EIGER AUTO 4WDLT-F400 - EIGER 2WDLT-F400F - EIGER 4WD
Years 2002200320042005200620072008
