• HIGH POWER 300W STATOR + FLYWHEEL + MOSFET VOLTAGE REGULATOR (YAMAHA)

HIGH POWER 300W STATOR + FLYWHEEL + MOSFET VOLTAGE REGULATOR (YAMAHA)

HIGH POWER 300W STATOR + FLYWHEEL + MOSFET VOLTAGE REGULATOR (YAMAHA)

Low stock! Only 2 left
$769.99
$769.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

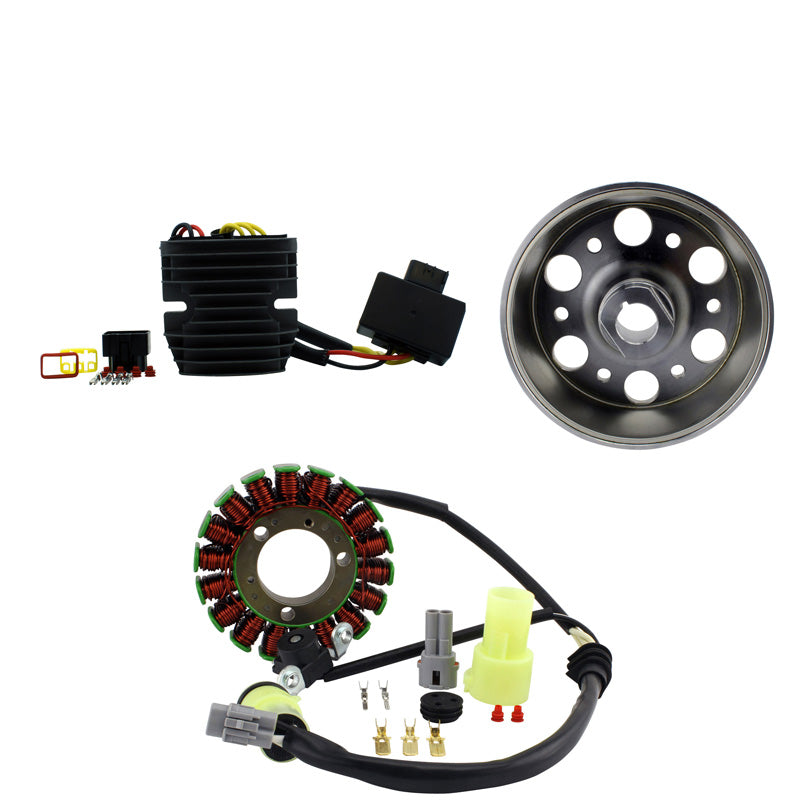

Brand new aftermarket Kit Stator Magneto Flywheel Rotor and Voltage Regulator Rectifier

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Pick up pulsar coil included
  • Connectors included
  • Rubber grommet included
  • All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.



Why use Mosfet Enhanced technology?





Runs cooler

Runs much cooler than the traditional Shunt voltage regulator rectifier.


Saves gas

Less load on the stator, less work, less fuel is used and you save.

Regulated energy

The power charging your battery is steadier and smooth.




Extended battery life

Extends the battery’s life and cold cranking capacity.


More engine power

Removes stator load resulting in more engine power.

Optimized power

Optimize power delivery by switching the stator coils on or off.

RMSTATOR Enhanced technology=


With enhanced technologydesign

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.



Brand new Mosfet Voltage Regulator Rectifier

STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.



Specifications:



Specifications of Stator:

Dimensions:
Interior diameter: 37 mm
Exterior diameter: 97 mm
Thickness: 14 mm
Length of wires stator to grommet: 160 mm
Length of wires grommet to plug: 180 mm
Length of pickup coil's wire to grommet: 180 mm

Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: White to White = 0.2 ohms +-20%
Pickup: White to Black = 260 ohms +-20%

Specifications of Flywheel:

Dimensions:
Exterior Diameter: 110 mm
Interior Diameter: 99 mm
Interior Diameter Center Housing: 30 mm
Exterior Diameter Center Housing: 33 mm
Thickness (exterior): 31 mm
Thickness (interior): 38 mm

Specifications of Regulator:

Dimensions:
Width: 93 mm
Length: 27 mm
Height: 102 mm
Fixation holes center to center: 72 mm

Other specifications:
Number of plugs: 1
Number of pins: 6

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

Our RM30801H is an improved MOSFET voltage regulator with a much larger housing than the original YFZ450R regulator. It will not fit in the original mounting location. It will plug in to the stock connector with the attached wiring harness, but will require you find a new mounting location on your vehicle.
