• HIGH OUTPUT STATOR (HONDA)

HIGH OUTPUT STATOR (HONDA)

HIGH OUTPUT STATOR (HONDA)

Out of stock
$236.99
$236.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out

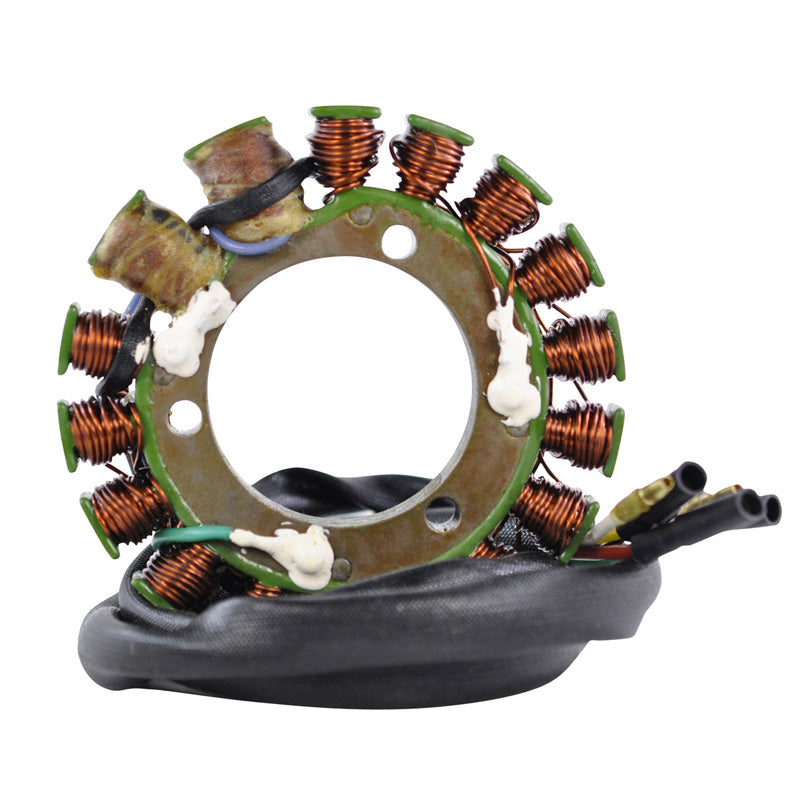

Brand new high output Stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation.
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius.
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 54 mm
Exterior diameter: 115 mm
Thickness: 15 mm
Length of wires stator to grommet: 130 mm

Other specifications:
Number of wires: 5
Number of plugs: 5
Number of pins: 5

Wire to wire resistance:
Alternator: White to Green = 0.4 ohms +/-20%
Alternator: Yellow to Red = 0.4 ohms +/-20%
Source: Green to Red/Black = 140 ohms +/-20%

Warning:

This stator looks very different from many of the compatible OEM Honda XR/XL 350/500/600 stators. However, it will work perfectly to replace and upgrade these parts.

To duplicate OEM functionality connect the Red/Black wire (ignition source coil), and the White wire (lighting coil) to their respective wires on the bike's harness, and ground the Green wire to the frame. The Yellow and Red wires can be insulated and tied up, unused.

Between the Yellow and Red wires is another 100 Watt coil that is floated, or NOT grounded to the stator core. This coil can be used with a regulator/rectifier to charge a battery, or to drive additional lights, heated grips, or other electrical accessories. If you are running an additional light directly from this coil (AC current), make sure to use an additional AC regulator to protect this lighting circuit.

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelSTATOR HON XL/XR350/500/600 83-87
Universemoto
Categorysysteme_de_charge
Supplier Part #RM01050S
ITL ID351-010040

Dimensions & Physical

Weight 1.88 lbs
Length5.1
Width6.3
Thickness2.4

Vehicle Fitment

Total Applications9
Applications HONDA XL600R 1983HONDA XL600R 1984HONDA XL600R 1985HONDA XL600R 1986HONDA XL600R 1987HONDA XR350R 1983HONDA XR350R 1984HONDA XR500R 1983HONDA XR500R 1984
Makes HONDA
Models XL600RXR350RXR500R
Years 19831984198519861987
