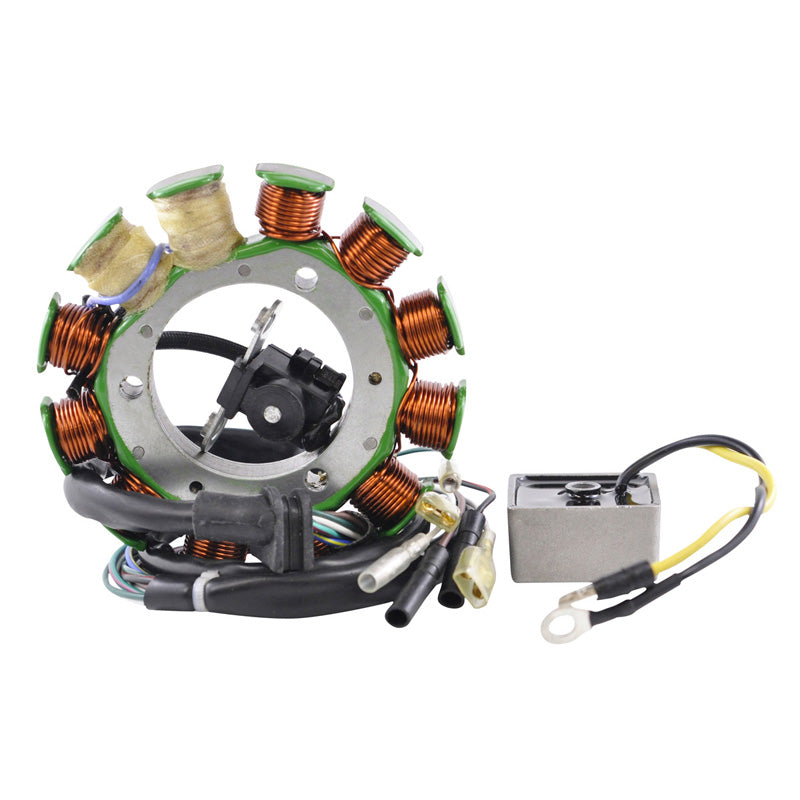

• HIGH OUTPUT STATOR + AC REGULATOR (HONDA)

HIGH OUTPUT STATOR + AC REGULATOR (HONDA)

HIGH OUTPUT STATOR + AC REGULATOR (HONDA)

Out of stock
$280.99
$280.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out

200 W High Efficiency Stator

  • Direct replacement for your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest quality lamination materials
  • Highest quality copper windings, resistant to 200 degrees Celsius.
  • Pulsar pickup coil included
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

Heavy Duty AC Voltage Regulator Rectifier

  • 12 Volt regulator used by Baja winners.
  • Robust and improved regulator rectifier.
  • For use with all standard halogen and quartz lamps.
  • Precise tension control, eliminates light burnout.
  • Reduce flickering and dimming
  • Simple setup.
  • Works with all other OEM parts.
  • Rated power of 225 watts.
  • All products are tested before shipping.

20% MORE PERFORMANCE OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

All item images are accurate; if in doubt, do not hesitate to compare our article to your original part.

Specifications:

High Output Stator 200 W

Dimensions:
Interior diameter: 53 mm
Exterior diameter: 115 mm
Thickness: 14 mm

Length of wires stator to grommet : 50 mm
Length of wires grommet to plug : 600 mm
Length of pickup coil's wire to grommet : 85 mm

Other specifications:
Number of wires : 8
Number of plugs : 7
Number of pins: 8

Wire to wire resistance:
Alternator : Green to White = 0.2 ohms+/-20%
Pick up : Blue/yellow to Green/red = 250 ohms+/-20%
Source : Black/Red to Brown = 100 ohms+/-20%

Heavy Duty AC Voltage Regulator Rectifier

Dimensions :
Width : 45 mm
Length : 45 mm
Height: 20 mm

Other specifications :
Number of pins : 2
Minimum Charging Voltage: 13 V +/- 0.5 V
Maximum Charging Current: 6 A - 10 A / 50 W - 200 W
Open Circuit Voltage: <15 V
Operation Temperature: -20? to 85?

Please note : this regulator has two wires, yellow to power and black to ground.

Warning:

If you would like to use this stator to add a battery to your bike, you will need a single phase voltage regulator rectifier.

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelSTATOR HON XR400/650R 96-07
Universemoto
Categorysysteme_de_charge
Supplier Part #RM01023
ITL ID351-010018

Dimensions & Physical

Weight 2.05 lbs
Length5.1
Width6.3
Thickness2.4

Vehicle Fitment

Total Applications16
Applications HONDA XR400R 1996HONDA XR400R 1997HONDA XR400R 1998HONDA XR400R 1999HONDA XR400R 2000HONDA XR400R 2001HONDA XR400R 2002HONDA XR400R 2003HONDA XR400R 2004HONDA XR650R 2000HONDA XR650R 2001HONDA XR650R 2002HONDA XR650R 2003HONDA XR650R 2004HONDA XR650R 2005HONDA XR650R 2006
Makes HONDA
Models XR400RXR650R
Years 19961997199819992000200120022003200420052006
