• HIGH OUTPUT STATOR

HIGH OUTPUT STATOR

HIGH OUTPUT STATOR

Low stock! Only 2 left
$250.99
$250.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

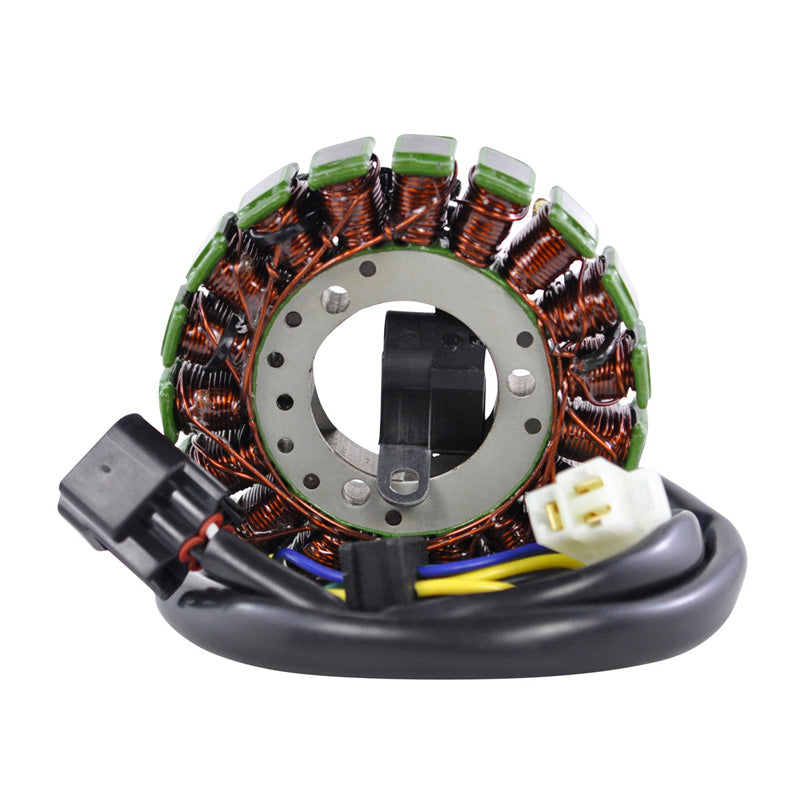

Brand new high output stator

  • Direct replacement to your original unit
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • All products shipped are tested

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 34 mm
Exterior diameter: 93 mm
Thickness: 14 mm
Length of wires stator to grommet: 100 mm
Length of wires grommet to plug: 400 mm & 600 mm
Length of pickup coil's wire to grommet: 110 mm

Other specifications:
Number of wires: 7
Number of plugs: 2
Number of pins: 7

Wire to wire resistance:
Alternator: Yellow Between each Yellow = 0.7 ohms +/-20%
Alternator: Yellow to Ground O.L on display
Pickup: Blue to Green = 200 ohms +/-20%
Position Sensor: Black to White = 0.3 ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
HIGH OUTPUT STATOR

$250.99

Product Specifications

General Information

Brandrms
LabelSTATOR SUZ DRZ250/400|KAW KLX400 00-22
Universemoto
Categorysysteme_de_charge
Supplier Part #RM01049
ITL ID351-010039

Dimensions & Physical

Weight 1.55 lbs
Length5.1
Width6.3
Thickness2.4

Vehicle Fitment

Total Applications61
Applications KAWASAKI KLX400-B 2003KAWASAKI KLX400-B 2004SUZUKI DR-Z250 2001SUZUKI DR-Z250 2002SUZUKI DR-Z250 2003SUZUKI DR-Z250 2004SUZUKI DR-Z250 2005SUZUKI DR-Z250 2006SUZUKI DR-Z250 2007SUZUKI DR-Z400E 2001SUZUKI DR-Z400E 2002SUZUKI DR-Z400E 2003SUZUKI DR-Z400E 2004SUZUKI DR-Z400E 2005SUZUKI DR-Z400E 2006SUZUKI DR-Z400E 2007SUZUKI DR-Z400S 2000SUZUKI DR-Z400S 2001SUZUKI DR-Z400S 2002SUZUKI DR-Z400S 2003SUZUKI DR-Z400S 2004SUZUKI DR-Z400S 2005SUZUKI DR-Z400S 2006SUZUKI DR-Z400S 2007SUZUKI DR-Z400S 2008SUZUKI DR-Z400S 2009SUZUKI DR-Z400S 2010SUZUKI DR-Z400S 2011SUZUKI DR-Z400S 2012SUZUKI DR-Z400S 2013SUZUKI DR-Z400S 2014SUZUKI DR-Z400S 2015SUZUKI DR-Z400S 2016SUZUKI DR-Z400S 2017SUZUKI DR-Z400S 2018SUZUKI DR-Z400S 2019SUZUKI DR-Z400S 2020SUZUKI DR-Z400S 2021SUZUKI DR-Z400S 2022SUZUKI DR-Z400S 2023SUZUKI DR-Z400S 2024SUZUKI DR-Z400SM SUPER MOTO 2005SUZUKI DR-Z400SM SUPER MOTO 2006SUZUKI DR-Z400SM SUPER MOTO 2007SUZUKI DR-Z400SM SUPER MOTO 2008SUZUKI DR-Z400SM SUPER MOTO 2009SUZUKI DR-Z400SM SUPER MOTO 2010SUZUKI DR-Z400SM SUPER MOTO 2011SUZUKI DR-Z400SM SUPER MOTO 2012SUZUKI DR-Z400SM SUPER MOTO 2013SUZUKI DR-Z400SM SUPER MOTO 2014SUZUKI DR-Z400SM SUPER MOTO 2015SUZUKI DR-Z400SM SUPER MOTO 2016SUZUKI DR-Z400SM SUPER MOTO 2017SUZUKI DR-Z400SM SUPER MOTO 2018SUZUKI DR-Z400SM SUPER MOTO 2019SUZUKI DR-Z400SM SUPER MOTO 2020SUZUKI DR-Z400SM SUPER MOTO 2021SUZUKI DR-Z400SM SUPER MOTO 2022SUZUKI DR-Z400SM SUPER MOTO 2023SUZUKI DR-Z400SM SUPER MOTO 2024
Makes KAWASAKISUZUKI
Models DR-Z250DR-Z400EDR-Z400SDR-Z400SM SUPER MOTOKLX400-B
Years 2000200120022003200420052006200720082009201020112012201320142015201620172018201920202021202220232024
