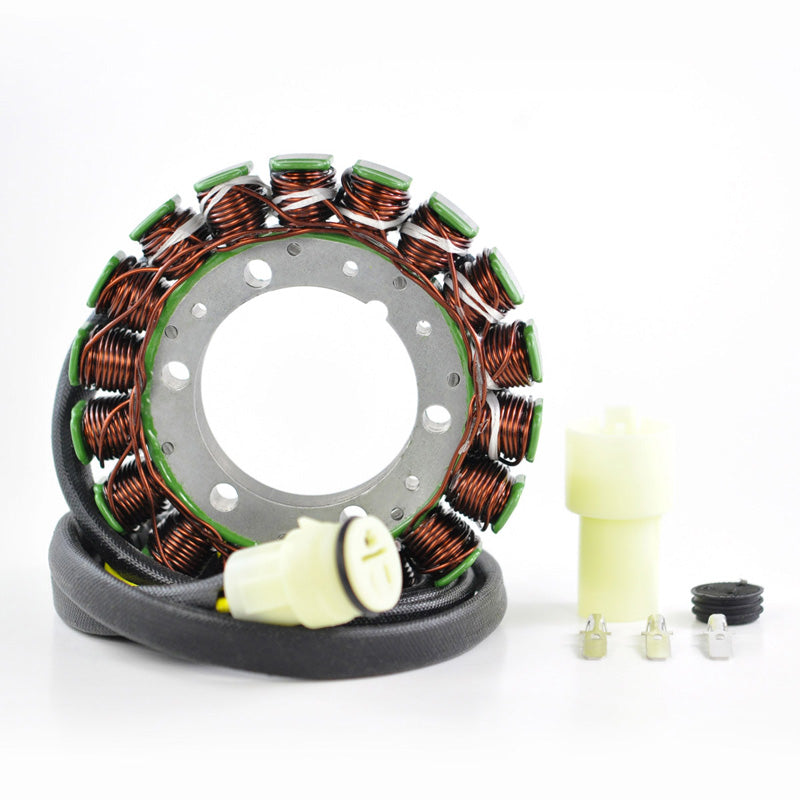

Brand new high output aftermarket stator
- Direct replacement to your original unit
- Connector included
- Opposite connector included
- Rubber grommet included
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- All product shipped are tested
20% More output over stock, works with all other OEM components.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimensions :Interior diameter : 53 mm
Exterior diameter : 114 mm
Thickness : 14 mm
Length of wires stator to grommet : 200 mm
Length of wires grommet to plug : 750 mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Wire to wire resistance :
Alternator : Yellow/Red between each Yellow/Red = 0.2 ohms +/-20%
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
Secure your shopping experience with various safe and trusted payment methods.
Payment methods
Product Specifications
General Information
| Brand | rms |
| Label | STATOR KAW KVF650-750|SUZ LTV700F 02-13 |
| Universe | vtt_utv |
| Category | systeme_de_charge |
| Supplier Part # | RM01045 |
| ITL ID | 351-010036 |
Dimensions & Physical
| Weight | 2.12 lbs |
| Length | 5.1 |
| Width | 6.3 |
| Thickness | 2.4 |
Vehicle Fitment
| Total Applications | 30 |
| Applications | KAWASAKI KFX700 V FORCE 2004KAWASAKI KVF650 4X4 BRUTE FORCE 2005KAWASAKI KVF650 4X4 BRUTE FORCE 2006KAWASAKI KVF650 4X4 BRUTE FORCE 2007KAWASAKI KVF650 4X4 BRUTE FORCE 2008KAWASAKI KVF650 4X4 BRUTE FORCE 2009KAWASAKI KVF650 4X4 BRUTE FORCE 2010KAWASAKI KVF650 4X4 BRUTE FORCE 2011KAWASAKI KVF650 4X4 BRUTE FORCE 2012KAWASAKI KVF650 4X4 BRUTE FORCE 2013KAWASAKI KVF650 4X4 BRUTE FORCE 2014KAWASAKI KVF650 4X4 PRAIRIE 2002KAWASAKI KVF650 4X4 PRAIRIE 2003KAWASAKI KVF650 4X4I BRUTE FORCE 2006KAWASAKI KVF650 4X4I BRUTE FORCE 2007KAWASAKI KVF650 4X4I BRUTE FORCE 2008KAWASAKI KVF650 4X4I BRUTE FORCE 2009KAWASAKI KVF650 4X4I BRUTE FORCE 2010KAWASAKI KVF650 4X4I BRUTE FORCE 2011KAWASAKI KVF650 4X4I BRUTE FORCE 2012KAWASAKI KVF650 4X4I BRUTE FORCE 2013KAWASAKI KVF650 4X4I BRUTE FORCE 2014KAWASAKI KVF700 4X4 PRAIRIE 2004KAWASAKI KVF700 4X4 PRAIRIE 2005KAWASAKI KVF700 4X4 PRAIRIE 2006KAWASAKI KVF750 4X4I BRUTE FORCE 2005KAWASAKI KVF750 4X4I BRUTE FORCE 2006KAWASAKI KVF750 4X4I BRUTE FORCE 2007SUZUKI LT-V700F - TWIN PEAKS 2004SUZUKI LT-V700F - TWIN PEAKS 2005 |
| Makes | KAWASAKISUZUKI |
| Models | KFX700 V FORCEKVF650 4X4 BRUTE FORCEKVF650 4X4 PRAIRIEKVF650 4X4I BRUTE FORCEKVF700 4X4 PRAIRIEKVF750 4X4I BRUTE FORCELT-V700F - TWIN PEAKS |
| Years | 2002200320042005200620072008200920102011201220132014 |
-
