• HIGH OUTPUT PERFORMANCE STATOR 100 W (YAMAHA)

HIGH OUTPUT PERFORMANCE STATOR 100 W (YAMAHA)

HIGH OUTPUT PERFORMANCE STATOR 100 W (YAMAHA)

Out of stock
$206.99
$206.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out

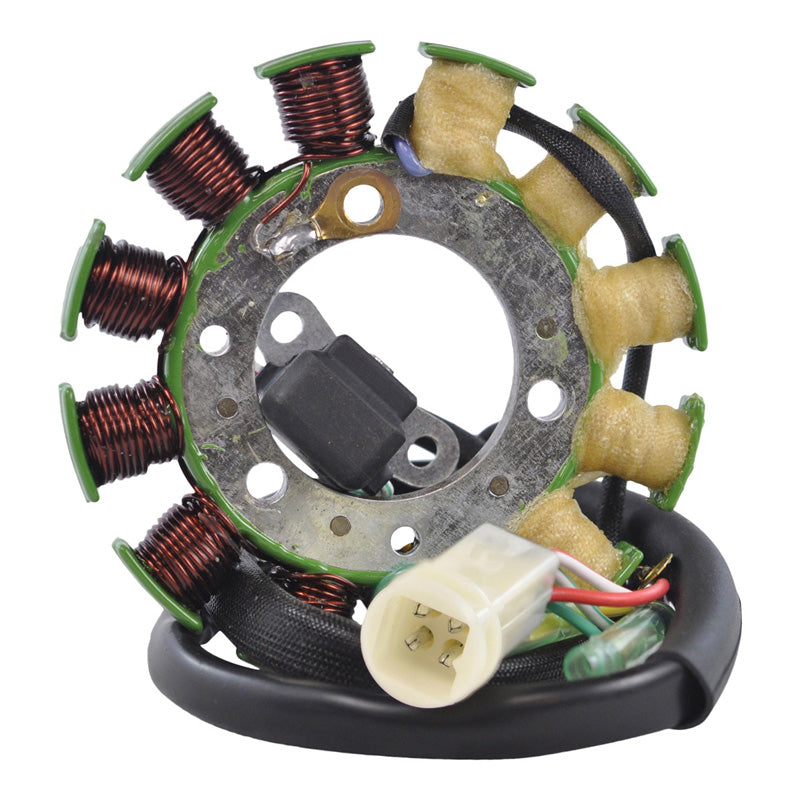

Brand new high output stator 100 watts

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation.
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Pick up pulsar coil included
  • Rubber grommet included
  • Connector included
  • All product shipped are tested

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 41 mm
Exterior diameter : 103 mm
Thickness : 5 mm
Length of wires stator to grommet : 200 mm
Length of wires grommet to plug : 300 mm
Length of pickup coil's wire to grommet : 100 mm

Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 6

Wire to wire resistance :
Alternator : Black to Yellow = 0.4 ohms +/-20%
Pickup : White/Red to White/Green = 125 ohms +/-20%
Source : Green to Red = 21 ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

Two other stators for these models can be offer:

  • Stator 100 W with a backplate
  • Stator 200 W with a backplate and a regulator

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelSTATOR YAM YFZ 350 BANSHEE 87-94
Universevtt_utv
Categorysysteme_de_charge
Supplier Part #RM01044
ITL ID351-010035

Dimensions & Physical

Weight 1.44 lbs
Length5.1
Width6.3
Thickness2.4

Vehicle Fitment

Total Applications8
Applications YAMAHA YFZ350 - BANSHEE 1987YAMAHA YFZ350 - BANSHEE 1988YAMAHA YFZ350 - BANSHEE 1989YAMAHA YFZ350 - BANSHEE 1990YAMAHA YFZ350 - BANSHEE 1991YAMAHA YFZ350 - BANSHEE 1992YAMAHA YFZ350 - BANSHEE 1993YAMAHA YFZ350 - BANSHEE 1994
Makes YAMAHA
Models YFZ350 - BANSHEE
Years 19871988198919901991199219931994
