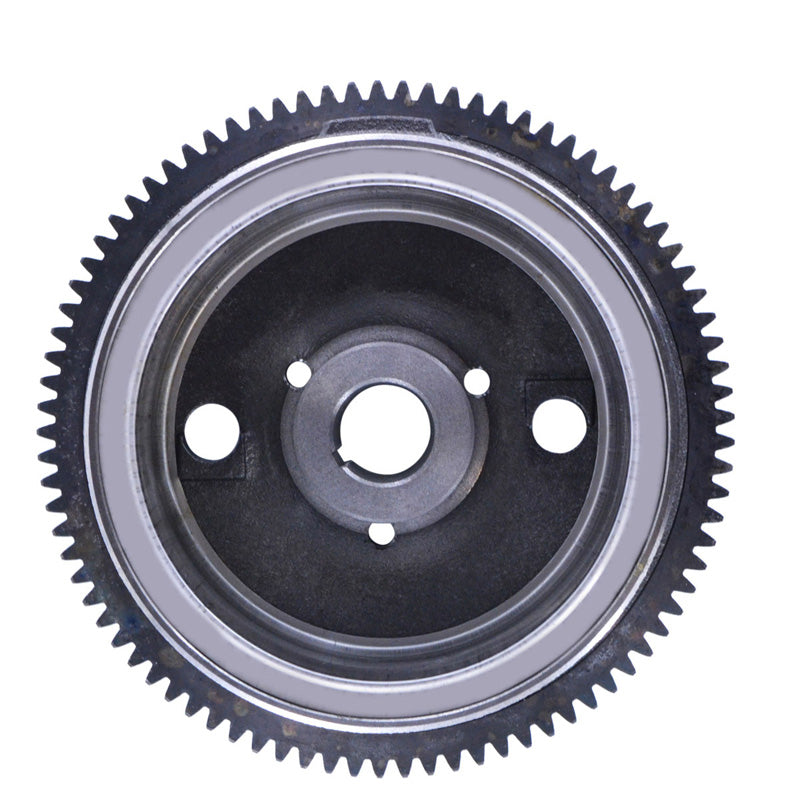

• FF97 FLYWHEEL ROTOR (POLARIS)

FF97 FLYWHEEL ROTOR (POLARIS)

FF97 FLYWHEEL ROTOR (POLARIS)

Out of stock
$265.99
$265.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out

Introducing our newest Heavy Duty Flywheel Rotor For Polaris 400 & 500cc ATVs.

Anyone who rides or repairs the Polaris 500cc ATVs is probably familiar with the flywheel problems common to these models. Most of these bikes will have at least one flywheel failure in their lifetime so far. Low quality epoxy was used on OEM flywheels to secure the magnets to the rotor body. Over time and many heat cycles, the epoxy fails allowing the magnets to come loose and contact the stator, potentially causing catastrophic damage.

For years, service shops & dealerships have offered low cost repairs for Polaris flywheels to save the 400$+ OEM replacement. This sounds like a great idea at first, but there are some serious issues!

The common repair is using JB Weld© Marine Blue Epoxy to reattach the loose original magnets, or to install new ones. Epoxy fixes do repair flywheels in short term, if they are done correctly. However, this kind of repair can easily cause immediate problems, and impact long term reliability of your ATV.



A Heavy Duty Flywheel to the rescue!

New RMSTATOR heavy-duty flywheel rotor for Polaris ATVs is a well-priced solution to problems with the OEM flywheel, and an excellent alternative to all the mechanical troubles you can encounter with a repair.

Features

  • Built to OEM size
    Fits precisely in your ride: install it and forget it.

  • Improved epoxy
    Uses high temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment.

  • High grade steel capping
    Prevents harsh additives in motor oil from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator.

  • Precise balancing
    Eliminates crankshaft vibrations for longer engine longevity.

  • Shop with confidence
    One year warranty. All products are tested.

Don't waste time with temporary solutions, and start fixing your ride like a pro!


Why cheap repairs won't work?

Quick stronger epoxy fixes do repair flywheels in short term. It might however impair long term performance and reliability of your ride.

Remaining OEM magnets:
Original magnets remaining can still come loose at any time.

Magnet alignment:
The alignment of magnets around the flywheel is critical for proper stator operation. Even very fine misalignment will reduce stator efficiency significantly.

Magnet spacing:
Excessive epoxy or incorrect magnet spacing around the flywheel can easily affect the flywheel balance. This can cause stator contact or even crankshaft damages.

Incorrect replacement magnets:
The magnetic field strength of new magnets MUST match the originals. Stator failure can occur quickly with stronger magnets and stator output can be decreased significantly using weaker magnets.

Wrong epoxy properties:
Epoxy that is not rated to permanently handle high temperatures and oil immersion can quickly cause a serious failure.

Oil contamination:
Wrong epoxy for the application can also contaminate the crankcase oil, damaging the motor.

All these reasons make us strongly recommend that you replace your broken flywheel with a new 400+ OEM one or our new heavy duty flywheel.

Specifications:

Dimensions:

Exterior Diameter: 141 mm
Interior Diameter: 117 mm
Interior Diameter Center Housing: 25 mm
Exterior Diameter Center Housing: 23 mm

Warning:

We are aware our flywheel does not have timing marks on the outer diameter like the OEM part. We are in the process of adding these to our flywheel; they will be on all future production. Until our new production is available, if you need to adjust your timing, please line up our flywheel with your OEM, matching the woodruff keyway orientation. You can then add timing marks in the same location to our flywheel with a permanent marker or paint pen.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelFLYWHEEL POL SPORTSMAN SCRAMBLER MAGNUM 500 97-04
Universevtt_utv
Categoryallumage
Supplier Part #RM11512
ITL ID351-120005

Dimensions & Physical

Weight 5.71 lbs
Length2
Width2.8
Thickness2.2

Vehicle Fitment

Total Applications26
Applications POLARIS ATP 500 HO 4X4 2004POLARIS BIG BOSS 500 6X6 1998POLARIS BIG BOSS 500 6X6 1999POLARIS MAGNUM 500 4X4 1999POLARIS MAGNUM 500 4X4 2000POLARIS MAGNUM 500 4X4 2001POLARIS MAGNUM 500 4X4 2002POLARIS SCRAMBLER 500 2X4 2001POLARIS SCRAMBLER 500 2X4 2002POLARIS SCRAMBLER 500 4X4 1997POLARIS SCRAMBLER 500 4X4 1998POLARIS SCRAMBLER 500 4X4 1999POLARIS SCRAMBLER 500 4X4 2000POLARIS SCRAMBLER 500 4X4 2001POLARIS SCRAMBLER 500 4X4 2002POLARIS SCRAMBLER 500 4X4 2003POLARIS SPORTSMAN 400 2003POLARIS SPORTSMAN 500 1998POLARIS SPORTSMAN 500 1999POLARIS SPORTSMAN 500 2000POLARIS SPORTSMAN 500 6X6 2000POLARIS SPORTSMAN 500 6X6 2001POLARIS SPORTSMAN 500 6X6 2002POLARIS SPORTSMAN 500 HO 2001POLARIS SPORTSMAN 500 HO 2002POLARIS SPORTSMAN 500 HO 2003
Makes POLARIS
Models ATP 500 HO 4X4BIG BOSS 500 6X6MAGNUM 500 4X4SCRAMBLER 500 2X4SCRAMBLER 500 4X4SPORTSMAN 400SPORTSMAN 500SPORTSMAN 500 6X6SPORTSMAN 500 HO
Years 19971998199920002001200220032004
