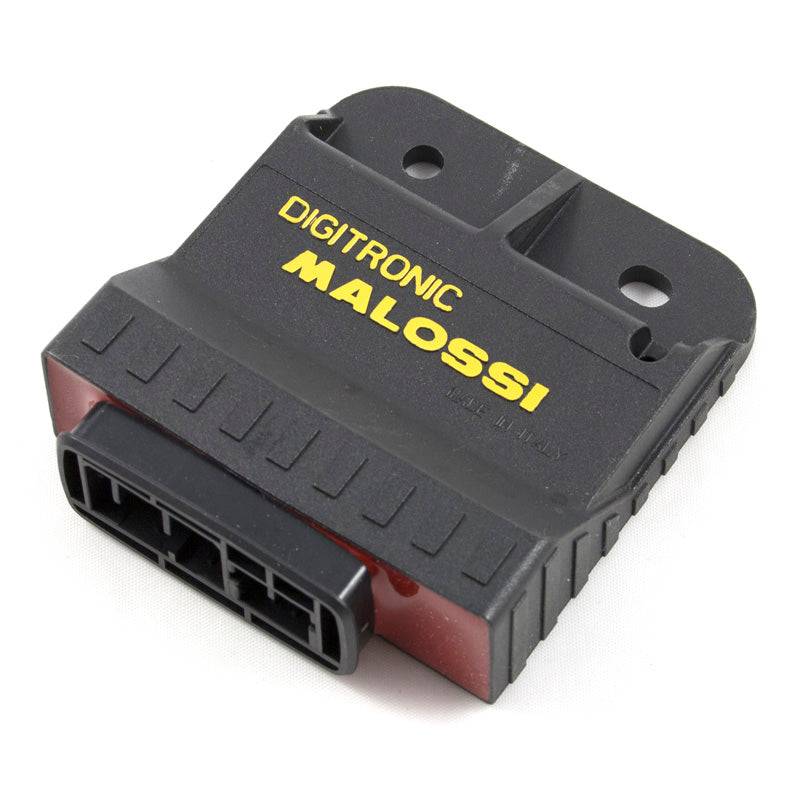

Malossi is proud to offer its new Digitronic ECU with variable ignition timing!

Compared to the original ECU, Malossi has completely modified the ignition timing performance maps and increased the rev limit by 1000 RPMs.

The new Digitronic controls the ignition timing, SAS valve, and PTC heater performance maps.

Ignition Timing Performance Map

The ignition timing is controlled by performing a linear interpolation of a tri-dimensional performance map, containing 16 break points for engine speed and 8 break points for engine temperature.

SAS Valve Performance Map

The secondary air supply to the base of the throttle body enables the engine management system to compensate for the non-linearity typical in carburettor systems. The SAS Valve (Secondary Air Source) is controlled by the ECU which performs a linear interpolation of a performance map, containing 16 break points for engine speed and 8 break points for engine temperature. The SAS Valve reduces emissions and optimizes engine performance for all operating conditions.

PTC Heater

Special attention has been given to cold start conditions, guaranteeing correct fuel vaporization under low temperature conditions. The ECU controls a PTC heater, positioned on the carburettor, which maintains the fuel at a constant temperature in the carburettor's fuel bowl.

Ignition Coil Charging Period

To increase the life of the 8 mm spark plug used on the vehicle, a strategy was introduced to limit the ignition coil charging period, reducing spark plug wear due to the electro-erosion effect. This strategy reduces the amount of discharge energy needed at elevated engine speeds and elevated alternator voltage without compromising engine performance. In addition, the ECU guarantees engine operation even with a weak battery or no battery. It is possible to start the vehicle using the kick-starter regardless of battery condition.

Products reserved exclusively for competitions in places intended for them in accordance with the provisions of the competent sports authorities. We Disclaim all liability for improper use

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandmalossi
LabelDIGITRONIC AVANCE VARIABLE
Universescooter
Categoryallumage
Supplier Part #5514396
ITL ID444-5514396

Dimensions & Physical

Weight 0.441 lbs
Length8.25
Width5.25
Thickness2.5

Vehicle Fitment

Total Applications65
Applications APRILIA SCARABEO 50 2007APRILIA SCARABEO 50 2008APRILIA SPORT CITY ONE 50 4T 4V 2009APRILIA SPORT CITY ONE 50 4T 4V 2010APRILIA SPORT CITY ONE 50 4T 4V 2011APRILIA SPORT CITY ONE 50 4T 4V 2012APRILIA SPORT CITY ONE 50 4T 4V 2013APRILIA SR MOTARD 50 4T 4V 2013APRILIA SR MOTARD 50 4T 4V 2014APRILIA SR MOTARD 50 4T 4V 2015APRILIA SR MOTARD 50 4T 4V 2016APRILIA SR MOTARD 50 4T 4V 2017APRILIA SR MOTARD 50 4T 4V 2018APRILIA SR MOTARD 50 4T 4V 2019APRILIA SR MOTARD 50 4T 4V 2020APRILIA SR MOTARD 50 4T 4V 2021APRILIA SR MOTARD 50 4T 4V 2022APRILIA SR MOTARD 50 4T 4V 2023PIAGGIO FLY 50 4T 4V 2011PIAGGIO FLY 50 4T 4V 2012PIAGGIO FLY 50 4T 4V 2013PIAGGIO FLY 50 4T 4V 2014PIAGGIO FLY 50 4T 4V 2015PIAGGIO FLY 50 4T 4V 2016PIAGGIO FLY 50 4T 4V 2017PIAGGIO FLY 50 4T 4V 2018PIAGGIO FLY 50 4T 4V 2019PIAGGIO FLY 50 4T 4V 2020PIAGGIO TYPHOON 50 4T 4V 2013PIAGGIO TYPHOON 50 4T 4V 2014PIAGGIO TYPHOON 50 4T 4V 2015PIAGGIO TYPHOON 50 4T 4V 2016PIAGGIO TYPHOON 50 4T 4V 2017PIAGGIO TYPHOON 50 4T 4V 2018PIAGGIO TYPHOON 50 4T 4V 2019PIAGGIO TYPHOON 50 4T 4V 2020PIAGGIO TYPHOON 50 4T 4V 2021PIAGGIO TYPHOON 50 4T 4V 2022PIAGGIO TYPHOON 50 4T 4V 2023VESPA LX 50 4V 2011VESPA LX 50 4V 2012VESPA LX 50 4V 2013VESPA LX 50 4V 2014VESPA PRIMAVERA 50 2015VESPA PRIMAVERA 50 2016VESPA PRIMAVERA 50 2017VESPA PRIMAVERA 50 2018VESPA PRIMAVERA 50 2019VESPA PRIMAVERA 50 2020VESPA PRIMAVERA 50 2021VESPA PRIMAVERA 50 2022VESPA PRIMAVERA 50 2023VESPA S 50 4V 2011VESPA S 50 4V 2012VESPA S 50 4V 2013VESPA S 50 4V 2014VESPA SPRINT 50 2015VESPA SPRINT 50 2016VESPA SPRINT 50 2017VESPA SPRINT 50 2018VESPA SPRINT 50 2019VESPA SPRINT 50 2020VESPA SPRINT 50 2021VESPA SPRINT 50 2022VESPA SPRINT 50 2023
Makes APRILIAPIAGGIOVESPA
Models FLY 50 4T 4VLX 50 4VPRIMAVERA 50S 50 4VSCARABEO 50SPORT CITY ONE 50 4T 4VSPRINT 50SR MOTARD 50 4T 4VTYPHOON 50 4T 4V
Years 20072008200920102011201220132014201520162017201820192020202120222023
