Stage6 Cylinder Kit 70cc Racing MK2 12mm piston pin China 2-stroke AC / CPI / Keeway. The successor of the successful Stage6 70cc racing cylinder is called Stage6 Racing MKII 70cc and was completely redesigned for even better out of the box performance.

The cylinder with high-strength hard chrome bore plating was completely redesigned. A new transfer port design (6 instead of 5 ports) improves cylinder filling. The piston is no longer flat but domed, with a 0.8 mm thick piston ring to optimise performance and improve heat dissipation. Thermal properties were improved in all areas. Generous flushing of the bridged exhaust port; a pentagonal design and internal cooling ribs; one-piece head with cast scavenging canals – to name but a few of the improvements. Port timings are 190°-130°.

The cylinder yields 2 to 3 hp more power than the MK1, between 17-19 hp, without any additional modifications and in combination with the corresponding components. There is enough material for further modifications to get the cylinder above 20 hp. Definitely one of the most powerful 70cc kits on the market!

We recommend using a reinforced crankshaft, a min. 21mm carburetor and a racing exhaust to exploit the full power of this tuning cylinder..

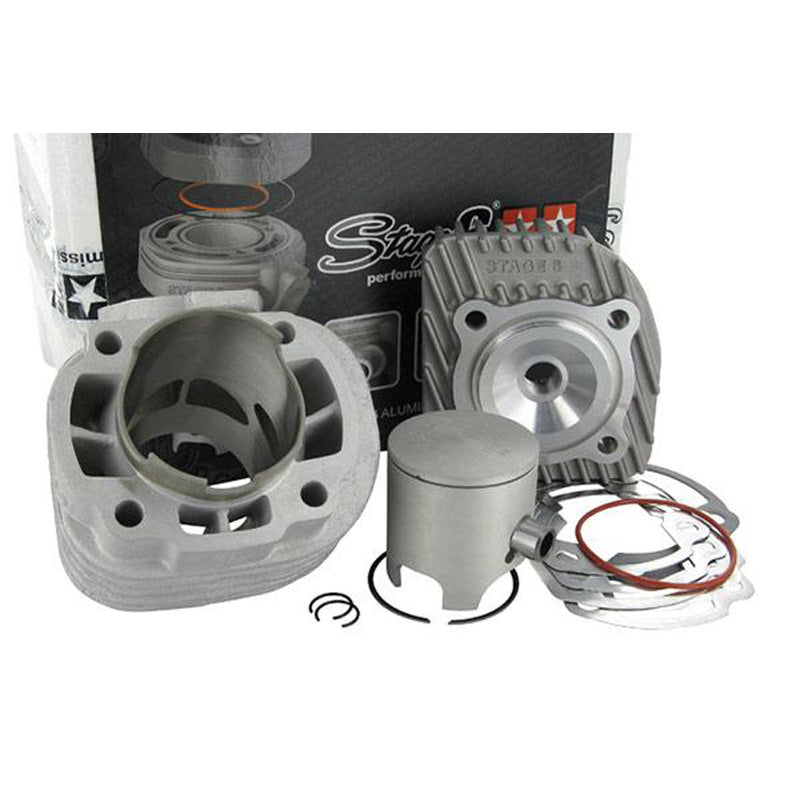

The kit includes.

  • aluminium cylinder, 47.6mm bore
  • 1-ring piston with 12mm piston pin
  • one-piece cylinder head
  • gasket set

We recommend to clean the engine before assembly, check the condition of all components and use a new spark plug and new small end bearing. Do not forget to change your carburetor settings if necessary.

Squish clearance should be between 0.75 and 0.85. The cylinder should be run in for approx. 300 km with a 1:33 mixture to improve robustness and life expectancy.

Attention:

- Original exhausts cannot be mounted with this cylinder.
- The temperature sensor (including thread) may not be longer than 18mm, otherwise it may knock against the cylinder head.

WITHOUT HOMOLOGATION (in some countries)

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandstage_6
LabelCYL.KIT RCING MKII D47MM,MINA.EURO II AC ALU.12MM
Universescooter
Categorypistons_et_cylindres
Supplier Part #S6-7419502
ITL ID424-19502

Dimensions & Physical

Weight 0 lbs
Length0
Width0
Thickness0

Vehicle Fitment

Total Applications26
Applications BENELLI PEPE 50 2T 2011BENELLI PEPE 50 4T 2013BENELLI PEPE 50 4T 2014BENELLI QUATRONOVEX 49X 2T 2009BENELLI QUATRONOVEX 49X 2T 2010BENELLI QUATRONOVEX 49X 2T 2011BENELLI QUATRONOVEX 49X 4T 2013BENELLI QUATRONOVEX 49X 4T 2014CPI TRACKER/OLIVER 50 (12MM) 2003CPI TRACKER/OLIVER 50 (12MM) 2004CPI TRACKER/OLIVER 50 (12MM) 2005CPI TRACKER/OLIVER 50 (12MM) 2006CPI TRACKER/OLIVER 50 (12MM) 2007CPI TRACKER/OLIVER 50 (12MM) 2008CPI TRACKER/OLIVER 50 (12MM) 2009CPI TRACKER/OLIVER 50 (12MM) 2010KEEWAY F-ACT 50 2T 2008KEEWAY F-ACT 50 2T 2009KEEWAY F-ACT 50 2T 2010KEEWAY F-ACT 50 2T 2011KEEWAY F-ACT 50 2T 2012KEEWAY HURRICANE 50 2008KEEWAY HURRICANE 50 2009KEEWAY HURRICANE 50 2010KEEWAY HURRICANE 50 2011KEEWAY HURRICANE 50 2012
Makes BENELLICPIKEEWAY
Models F-ACT 50 2THURRICANE 50PEPE 50 2TPEPE 50 4TQUATRONOVEX 49X 2TQUATRONOVEX 49X 4TTRACKER/OLIVER 50 (12MM)
Years 200320042005200620072008200920102011201220132014
