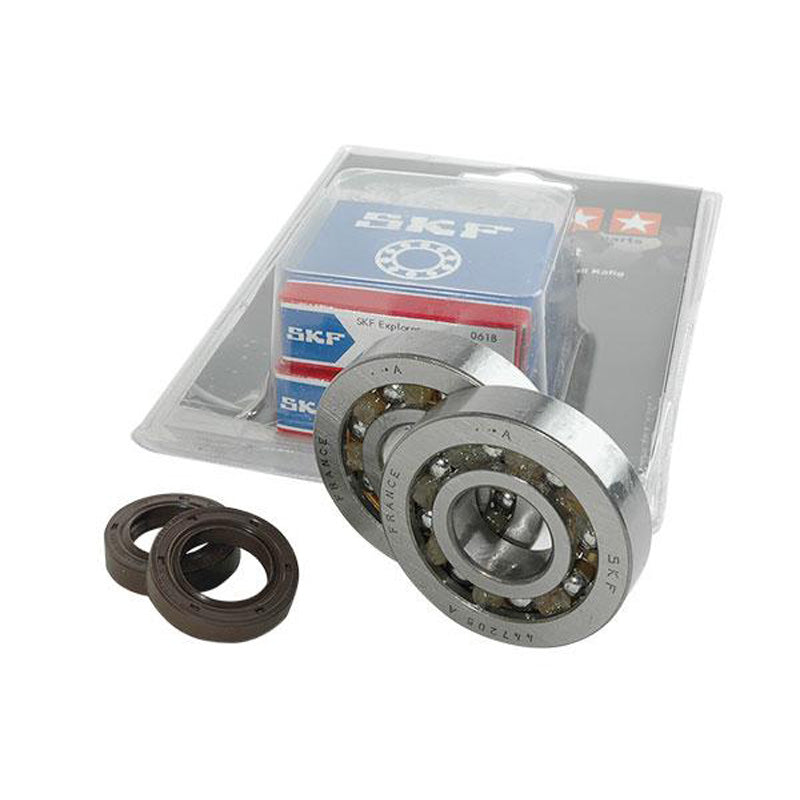

• CRANKSHAFT BEARING KIT TN9 - PIAGGIO

CRANKSHAFT BEARING KIT TN9 - PIAGGIO

CRANKSHAFT BEARING KIT TN9 - PIAGGIO

3 in stock
$79.99
$79.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Stage6 Crankshaft Bearings + Oil Seals C4 polymer cage Piaggio / Gilera / Vespa.

Saving on the quality of crankshaft bearings is certainly the wrong approach, especially when it comes to tuned engines. That's why Stage6 is only working with with leading European and Japanese manufacturers such as SKF or Corteco. The bearings are available in 2 versions - with low-friction, high-elasticity polymer cage for racing, and with robust metal cage for daily road use. Both types are SKF-approved up to 20,000rpm and have the clearance necessary for crankshaft bearings. Sufficient lubrication and proper installation of crankshaft and bearings are prerequisites for long bearing life.

The polymer cage version has higher elasticity and reduced friction. This is the type of bearing that we prefer for our racing engines. Please keep in mind that for this type of bearing ignition timing and carburetor settings have to be perfect, since the plastic cages are not built to take more than 120°C for a long time. This is also the reason why these TN9 bearings should not be used in engines with catalytic converters. Note: the open side of the cage has to face the crank webs.

The metal cage bearing is more resistant than the polymer version, but it also generates more friction and hence more heat.

Note - The polymer cage bearings can only be used with exhausts or exhausts (original or tuning) without catalytic converter.

Polymer cage (SKF BB1B-447205A)

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
CRANKSHAFT BEARING KIT TN9 - PIAGGIO

$79.99

Product Specifications

General Information

Brandstage_6
LabelCRANK BEARING HQ,INCL.SEALS,POLYMER CAGE PIAGGIO
Universescooter
Categoryvilebrequins_et_bielles
Supplier Part #S6-80340C4/TN9
ITL ID424-34049

Dimensions & Physical

Weight 0.661 lbs
Length7.5
Width5
Thickness2

Vehicle Fitment

Total Applications28
Applications APRILIA SR50 DITECH (PIAGGIO) 2009APRILIA SR50 DITECH (PIAGGIO) 2010APRILIA SR50 DITECH (PIAGGIO) 2011APRILIA SR50 DITECH (PIAGGIO) 2012APRILIA SR50 DITECH (PIAGGIO) 2013APRILIA SR50 DITECH (PIAGGIO) 2014APRILIA SR50 DITECH (PIAGGIO) 2015DERBI ATLANTIS (PIAGGIO) 2003DERBI ATLANTIS (PIAGGIO) 2004DERBI ATLANTIS (PIAGGIO) 2005DERBI ATLANTIS (PIAGGIO) 2006DERBI ATLANTIS (PIAGGIO) 2007DERBI ATLANTIS (PIAGGIO) 2008DERBI ATLANTIS (PIAGGIO) 2009DERBI ATLANTIS (PIAGGIO) 2010DERBI GP1 (PIAGGIO) 2003DERBI GP1 (PIAGGIO) 2004DERBI GP1 (PIAGGIO) 2005DERBI GP1 (PIAGGIO) 2006DERBI GP1 (PIAGGIO) 2007DERBI GP1 (PIAGGIO) 2008DERBI GP1 (PIAGGIO) 2009DERBI GP1 (PIAGGIO) 2010PIAGGIO TYPHOON 50 2T 2006PIAGGIO TYPHOON 50 2T 2007PIAGGIO TYPHOON 50 2T 2008VESPA ET2 50 2T 2004VESPA ET2 50 2T 2005
Makes APRILIADERBIPIAGGIOVESPA
Models ATLANTIS (PIAGGIO)ET2 50 2TGP1 (PIAGGIO)SR50 DITECH (PIAGGIO)TYPHOON 50 2T
Years 2003200420052006200720082009201020112012201320142015
