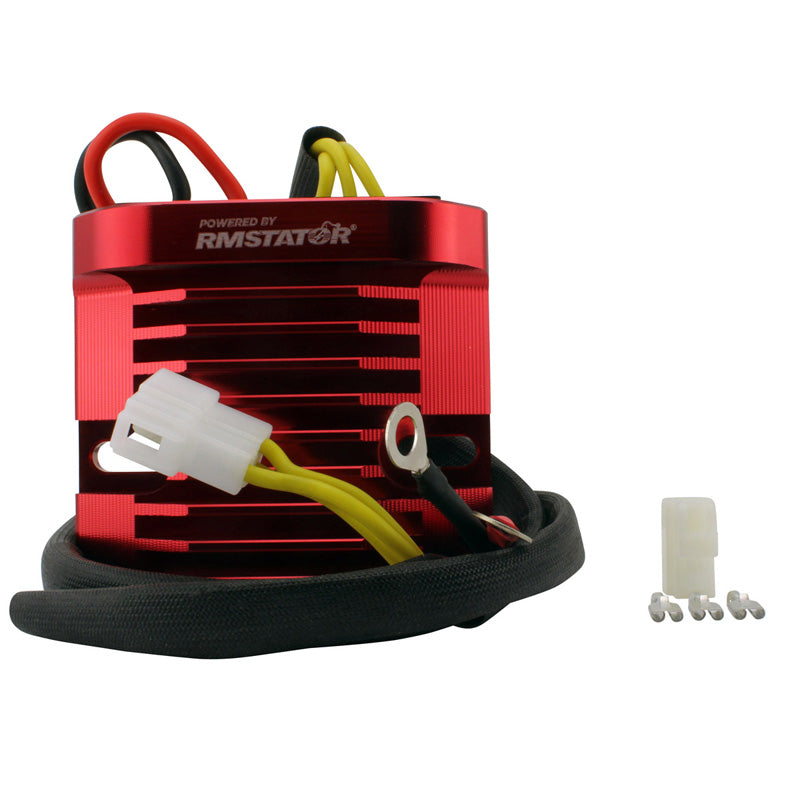

Brand new RMSTATOR Red Machined Aluminum Mosfet Regulator

Our new RMSTATORmachined aluminum Mosfet voltage regulator is a great upgrade for heat dissipation in any powersports charging system. After 10 minutes of use, our billet aluminum heatsink runs cooler by 33% than standard cast regulator housings. Our new RMSTATORred regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.

STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up, it will simply turn off for a while and cool off.
  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • The quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components
  • All shipped products are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Why use Mosfet Enhanced technology?



Runs cooler

Runs much cooler than the traditional Shunt voltage regulator rectifier.


Saves gas

Less load on the stator, less work, less fuel is used and you save.


Regulated energy

The power charging your battery is steadier and smooth.




Extended battery life

Extends the battery’s life and cold cranking capacity.


More engine power

Removes stator load resulting in more engine power.


Optimized power

Optimize power delivery by switching the stator coils on or off.

RMSTATOR Enhanced technology=


With enhanced technologydesign

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

Specifications:

Dimensions:
Width: 95 mm
Length: 90 mm
Height: 30 mm
Wires length: 811 mm and 350 mm
Fixation holes center to center: 75 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° C to 85°C

Warning:

This special regulator bypasses the vehicle’s failure-prone wiring harness between the regulator and battery, and instead connects directly to the battery with ring terminals for the best possible connection. For Triumph fitments please check your stator to regulator connector as there were 2 versions used and select the correct one. Our possible part numbers are :
  • RMS022-106222
  • RMS022-107616
Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
ALUMINUM MOSFET REGULATOR (SUZUKI)

$206.99

Product Specifications

General Information

Brandrms
LabelMOSFET REG CNC TRI DAYTONA 06-20|SUZ GSX-R 96-00
Universemoto,vtt_utv
Categorysysteme_de_charge
Supplier Part #RMS022-107616
ITL ID351-022007

Dimensions & Physical

Weight 1.25 lbs
Length5.1
Width6.3
Thickness2.4

Vehicle Fitment

Total Applications160
Applications SUZUKI DL650 V-STROM 2008SUZUKI DL650 V-STROM 2009SUZUKI DL650 V-STROM 2011SUZUKI DL650 V-STROM 2012SUZUKI DL650 V-STROM 2013SUZUKI DL650 V-STROM 2014SUZUKI DL650 V-STROM 2015SUZUKI DL650 V-STROM 2016SUZUKI DL650 V-STROM 2017SUZUKI DL650 V-STROM 2019SUZUKI GSF1250S BANDIT 2007SUZUKI GSF1250S BANDIT 2008SUZUKI GSF1250SA BANDIT 2009SUZUKI GSX-R1000 2005SUZUKI GSX-R1000 2006SUZUKI GSX-R1000 2009SUZUKI GSX-R1000 2011SUZUKI GSX-R1000 2012SUZUKI GSX-R1000 2013SUZUKI GSX-R1000 2014SUZUKI GSX-R1000 2015SUZUKI GSX-R1000 2016SUZUKI GSX-R600 1997SUZUKI GSX-R600 1998SUZUKI GSX-R600 1999SUZUKI GSX-R600 2000SUZUKI GSX-R600 2008SUZUKI GSX-R600 2009SUZUKI GSX-R600 2011SUZUKI GSX-R600 2012SUZUKI GSX-R600 2013SUZUKI GSX-R600 2014SUZUKI GSX-R600 2015SUZUKI GSX-R600 2016SUZUKI GSX-R600 2017SUZUKI GSX-R600 2018SUZUKI GSX-R600 2019SUZUKI GSX-R750 1996SUZUKI GSX-R750 1997SUZUKI GSX-R750 1998SUZUKI GSX-R750 1999SUZUKI GSX-R750 2008SUZUKI GSX-R750 2009SUZUKI GSX-R750 2011SUZUKI GSX-R750 2012SUZUKI GSX-R750 2013SUZUKI GSX-R750 2014SUZUKI GSX-R750 2015SUZUKI GSX-R750 2016SUZUKI GSX-R750 2017SUZUKI GSX-R750 2018SUZUKI GSX-R750 2019SUZUKI GSX-S750 2015SUZUKI GSX-S750 2016SUZUKI GSX1250FA 2011SUZUKI GSX650F 2008SUZUKI GSX650F 2009SUZUKI LT-F500F - QUADRUNNER 4WD 1998SUZUKI LT-F500F - QUADRUNNER 4WD 1999SUZUKI SFV650 GLADIUS 2009SUZUKI SFV650 GLADIUS 2014SUZUKI SFV650 GLADIUS 2015SUZUKI SV650A 2017SUZUKI SV650A 2019SUZUKI VL1500 BOULEVARD C90 2005SUZUKI VL1500 BOULEVARD C90 2006SUZUKI VL1500 BOULEVARD C90 2007SUZUKI VL1500 BOULEVARD C90 2008SUZUKI VL1500 BOULEVARD C90 2009SUZUKI VL1500 INTRUDER 1998SUZUKI VL1500 INTRUDER 1999SUZUKI VL1500 INTRUDER 2000SUZUKI VL1500 INTRUDER 2001SUZUKI VL1500 INTRUDER 2002SUZUKI VL1500 INTRUDER 2003SUZUKI VL1500 INTRUDER 2004SUZUKI VL1500SE INTRUDER SE 2000SUZUKI VL1500SE INTRUDER SE 2001SUZUKI VL1500SE INTRUDER SE 2002SUZUKI VL1500SE INTRUDER SE 2003SUZUKI VL1500SE INTRUDER SE 2004SUZUKI VL1500T BOULEVARD C90T 2005SUZUKI VL1500T BOULEVARD C90T 2006SUZUKI VL1500T BOULEVARD C90T 2007SUZUKI VL1500T BOULEVARD C90T 2008SUZUKI VL1500T BOULEVARD C90T 2009SUZUKI VL800 BOULEVARD C50 2005SUZUKI VL800 BOULEVARD C50 2006SUZUKI VL800 BOULEVARD C50 2007SUZUKI VL800 BOULEVARD C50 2008SUZUKI VL800 BOULEVARD C50 2009SUZUKI VL800 BOULEVARD C50 2011SUZUKI VL800 BOULEVARD C50 2012SUZUKI VL800 BOULEVARD C50 2013SUZUKI VL800 BOULEVARD C50 2014SUZUKI VL800 BOULEVARD C50 2015SUZUKI VL800 BOULEVARD C50 2016SUZUKI VL800 BOULEVARD C50 2017SUZUKI VL800 BOULEVARD C50 2018SUZUKI VL800 BOULEVARD C50 2019SUZUKI VL800T BOULEVARD C50T 2005SUZUKI VL800T BOULEVARD C50T 2006SUZUKI VL800T BOULEVARD C50T 2007SUZUKI VL800T BOULEVARD C50T 2008SUZUKI VL800T BOULEVARD C50T 2009SUZUKI VL800T BOULEVARD C50T 2011SUZUKI VL800T BOULEVARD C50T 2012SUZUKI VL800T BOULEVARD C50T 2013SUZUKI VL800T BOULEVARD C50T 2014SUZUKI VL800T BOULEVARD C50T 2015SUZUKI VL800T BOULEVARD C50T 2016SUZUKI VL800T BOULEVARD C50T 2017SUZUKI VL800T BOULEVARD C50T 2018SUZUKI VL800T BOULEVARD C50T 2019SUZUKI VZ800 BOULEVARD M50 2005SUZUKI VZ800 BOULEVARD M50 2006SUZUKI VZ800 BOULEVARD M50 2007SUZUKI VZ800 BOULEVARD M50 2008SUZUKI VZ800 BOULEVARD M50 2009SUZUKI VZ800 BOULEVARD M50 2013SUZUKI VZ800 BOULEVARD M50 2014SUZUKI VZ800 BOULEVARD M50 2015SUZUKI VZ800 BOULEVARD M50 2016SUZUKI VZ800 BOULEVARD M50 2017SUZUKI VZ800 BOULEVARD M50 2018SUZUKI VZ800 BOULEVARD M50 2019TRIUMPH DAYTONA 675 2006TRIUMPH DAYTONA 675 2007TRIUMPH DAYTONA 675 2008TRIUMPH DAYTONA 675 2009TRIUMPH DAYTONA 675 2010TRIUMPH DAYTONA 675 2011TRIUMPH DAYTONA 675 2012TRIUMPH DAYTONA 675 2013TRIUMPH DAYTONA 675 2014TRIUMPH DAYTONA 675 2015TRIUMPH DAYTONA 675 2016TRIUMPH DAYTONA 675R 2011TRIUMPH DAYTONA 675R 2012TRIUMPH STREET TRIPLE 2008TRIUMPH STREET TRIPLE 2009TRIUMPH STREET TRIPLE 2010TRIUMPH STREET TRIPLE 2011TRIUMPH STREET TRIPLE 2012TRIUMPH STREET TRIPLE 2013TRIUMPH STREET TRIPLE 2014TRIUMPH STREET TRIPLE 2015TRIUMPH STREET TRIPLE 2016TRIUMPH STREET TRIPLE R 2009TRIUMPH STREET TRIPLE R 2010TRIUMPH STREET TRIPLE R 2011TRIUMPH STREET TRIPLE R 2012TRIUMPH STREET TRIPLE R 2013TRIUMPH STREET TRIPLE R 2014TRIUMPH STREET TRIPLE R 2015TRIUMPH STREET TRIPLE R 2016TRIUMPH STREET TRIPLE R 2017TRIUMPH STREET TRIPLE R 2018TRIUMPH STREET TRIPLE R 2019TRIUMPH STREET TRIPLE R 2020
Makes SUZUKITRIUMPH
Models DAYTONA 675DAYTONA 675RDL650 V-STROMGSF1250S BANDITGSF1250SA BANDITGSX-R1000GSX-R600GSX-R750GSX-S750GSX1250FAGSX650FLT-F500F - QUADRUNNER 4WDSFV650 GLADIUSSTREET TRIPLESTREET TRIPLE RSV650AVL1500 BOULEVARD C90VL1500 INTRUDERVL1500SE INTRUDER SEVL1500T BOULEVARD C90TVL800 BOULEVARD C50VL800T BOULEVARD C50TVZ800 BOULEVARD M50
Years 1996199719981999200020012002200320042005200620072008200920102011201220132014201520162017201820192020
