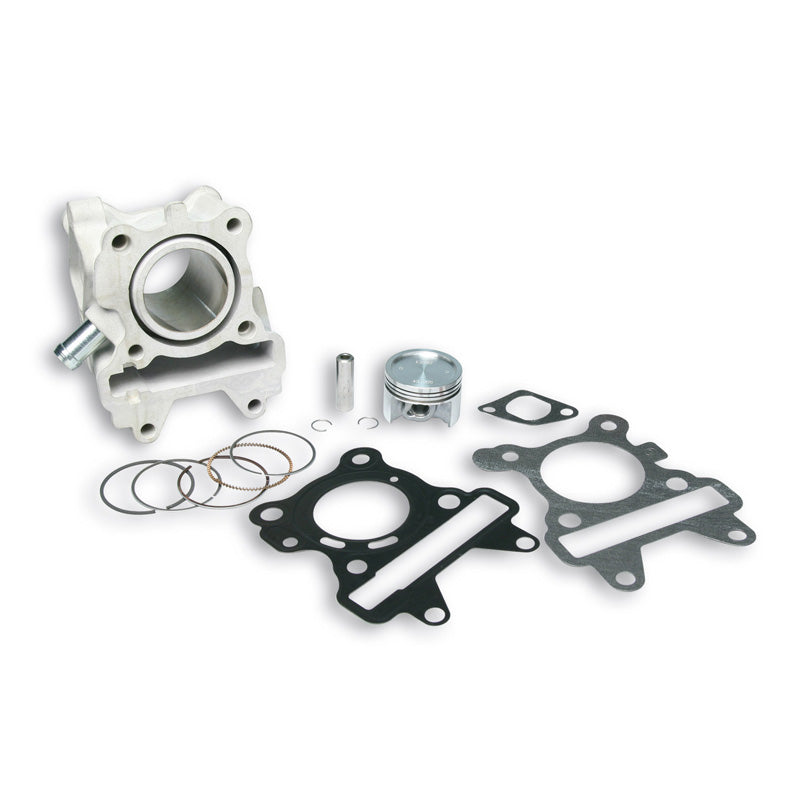

• ALUMINUM CYLINDER KIT 44MM - MINARELLI 4T

ALUMINUM CYLINDER KIT 44MM - MINARELLI 4T

ALUMINUM CYLINDER KIT 44MM - MINARELLI 4T

9 in stock
$519.99
$519.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

TECHNICAL FEATURES

Cylinder

  • Bore : Ø 44 mm
  • Stroke : 43.6 mm
  • Displacement : 66.3 cc
  • Compression ratio : 12.01
  • Material : primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances
  • Machining: on machine tools with high precision numerical control
  • Cylinder-piston connection with an allowance of 0.05 mm
  • Recalculated and upgraded heat exchange surfaces

Piston

  • Ultra compact with 3 rings
  • Material : special aluminium alloy with high silicon content, low thermal expansion and a tin facing on the sliding surfaces
  • Machining on machine tools with numerical control
  • Lightened and reinforced
  • Upgraded heat exchange surfaces

Piston rings

  • Special rings with high sliding ease and very high mechanical resistance
  • I° ring compression in nitrided and chromium steel
  • II° special cast iron ring
  • Three piece scraper ring made of chromium-plated special steel alloy




  To be installed exclusively with Force Master control unit 5518370
  YAMAHA AEROX 4 50 ie 4T LC euro 4 2018-> (A333E)
  YAMAHA NEO'S 4 50 ie 4T LC euro 4 2019->

  To be installed exclusively with Force Master control unit 5518429
  MBK NITRO 50 ie 4T LC euro 2
  MBK OVETTO UBS 50 ie 4T LC euro 2
  YAMAHA AEROX 4 50 ie 4T LC euro 2 (A326E)
  YAMAHA C3 [XF] 50 ie 4T LC euro 2 (A311E)
  YAMAHA GIGGLE [XF] 50 ie 4T LC euro 2 (A311E)
  YAMAHA NEO'S 4 50 ie 4T LC euro 2 (A316E)
  YAMAHA VOX [XF] 50 ie 4T LC euro 2 (A311E)
  YAMAHA ZUMA FX 50 ie 4T LC

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
ALUMINUM CYLINDER KIT 44MM - MINARELLI 4T

$519.99

Product Specifications

General Information

Brandmalossi
LabelCYL. KIT 44MM BW'S 4T / ZUMA X (66.3CC)
Universescooter
Categorypistons_et_cylindres
Supplier Part #3113579
ITL ID444-3113579

Dimensions & Physical

Weight 1.764 lbs
Length8
Width6
Thickness5.75

Vehicle Fitment

Total Applications17
Applications YAMAHA XF50 C3 CUBE 2007YAMAHA XF50 C3 CUBE 2008YAMAHA XF50 C3 CUBE 2009YAMAHA XF50 C3 CUBE 2010YAMAHA YW50F BW'S 4T 2012YAMAHA YW50F BW'S 4T 2013YAMAHA YW50F BW'S 4T 2014YAMAHA YW50F BW'S 4T 2015YAMAHA YW50F BW'S 4T 2016YAMAHA YW50F BW'S 4T 2017YAMAHA YW50F BW'S 4T 2018YAMAHA YW50F BW'S 4T 2019YAMAHA YW50FX ZUMA X 2014YAMAHA YW50FX ZUMA X 2015YAMAHA YW50FX ZUMA X 2016YAMAHA YW50FX ZUMA X 2017YAMAHA YW50FX ZUMA X 2018
Makes YAMAHA
Models XF50 C3 CUBEYW50F BW'S 4TYW50FX ZUMA X
Years 200720082009201020122013201420152016201720182019
