• ALTERNATOR STATOR (HONDA)

ALTERNATOR STATOR (HONDA)

ALTERNATOR STATOR (HONDA)

Out of stock
$206.99
$206.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out

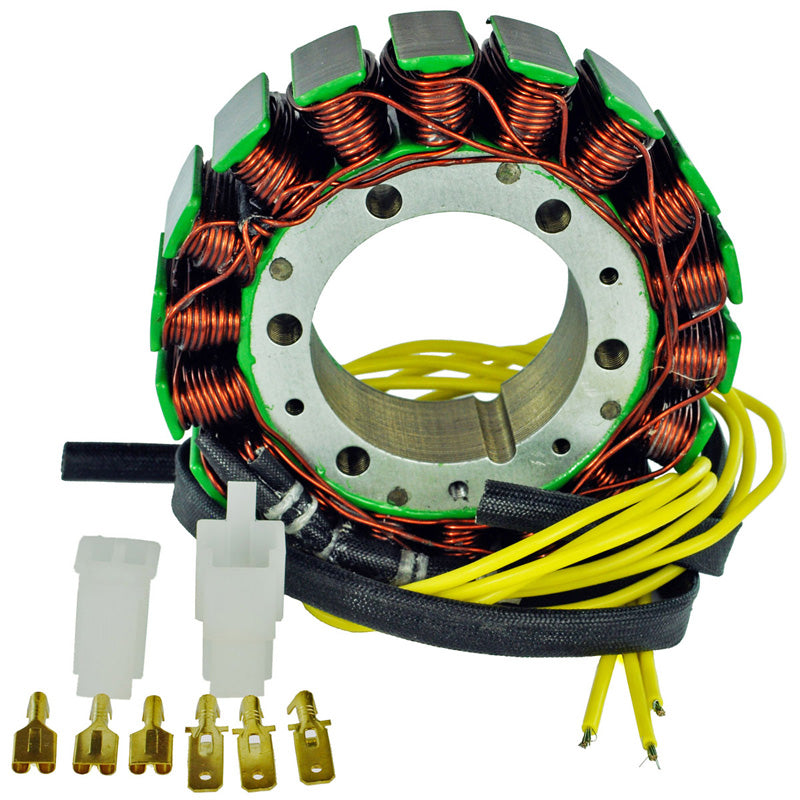

Brand new generator stator

  • You must re-install your original grommet (see picture).
  • Once your connector and grommet is re-installed, our part becomes a Plug-and-play unit, direct fit, and very easy to install.
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius.
  • All product shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 53 mm
Exterior diameter : 115 mm
Thickness : 27 mm
Length of wires stator to terminals : 600 mm


Other specifications :
Number of wires : 3
Number of plugs : 0
Number of pins : 3

Wire to wire resistance :
Alternator : Yellow to Yellow = 0.4 ohms +/-20%
Alternator : Yellow to Ground = O.L. on display

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelSTATOR HON GL/CX500/650|VT750/1100C 81-91
Universemoto
Categorysysteme_de_charge
Supplier Part #RM01014
ITL ID351-010010

Dimensions & Physical

Weight 3.11 lbs
Length2
Width2.8
Thickness2.2

Vehicle Fitment

Total Applications21
Applications HONDA CX500C CUSTOM 1982HONDA CX500TC TURBO 1982HONDA CX650C CUSTOM 1983HONDA CX650T TURBO 1983HONDA GL500 SILVERWING 1981HONDA GL500 SILVERWING 1982HONDA GL500I INTERSTATE 1981HONDA GL500I INTERSTATE 1982HONDA GL650I INTERSTATE 1983HONDA NT650 HAWK GT 1988HONDA NT650 HAWK GT 1989HONDA NT650 HAWK GT 1990HONDA VT1100C SHADOW 1985HONDA VT1100C SHADOW 1986SUZUKI GV1200GL MADURA 1985SUZUKI GV700GL MADURA 1985SUZUKI SV1000S 2003SUZUKI SV1000S 2004SUZUKI SV1000S 2005SUZUKI SV1000S 2006SUZUKI SV1000S 2007
Makes HONDASUZUKI
Models CX500C CUSTOMCX500TC TURBOCX650C CUSTOMCX650T TURBOGL500 SILVERWINGGL500I INTERSTATEGL650I INTERSTATEGV1200GL MADURAGV700GL MADURANT650 HAWK GTSV1000SVT1100C SHADOW
Years 1981198219831985198619881989199020032004200520062007
