• AC TO DC LIGHTING WITH 140W HIGH POWER STATOR + VOLTAGE REGULATOR + CDI + FLYWHEEL UPGRADE (YAMAHA)

AC TO DC LIGHTING WITH 140W HIGH POWER STATOR + VOLTAGE REGULATOR + CDI + FLYWHEEL UPGRADE (YAMAHA)

AC TO DC LIGHTING WITH 140W HIGH POWER STATOR + VOLTAGE REGULATOR + CDI + FLYWHEEL UPGRADE (YAMAHA)

Out of stock
$642.99
$642.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out

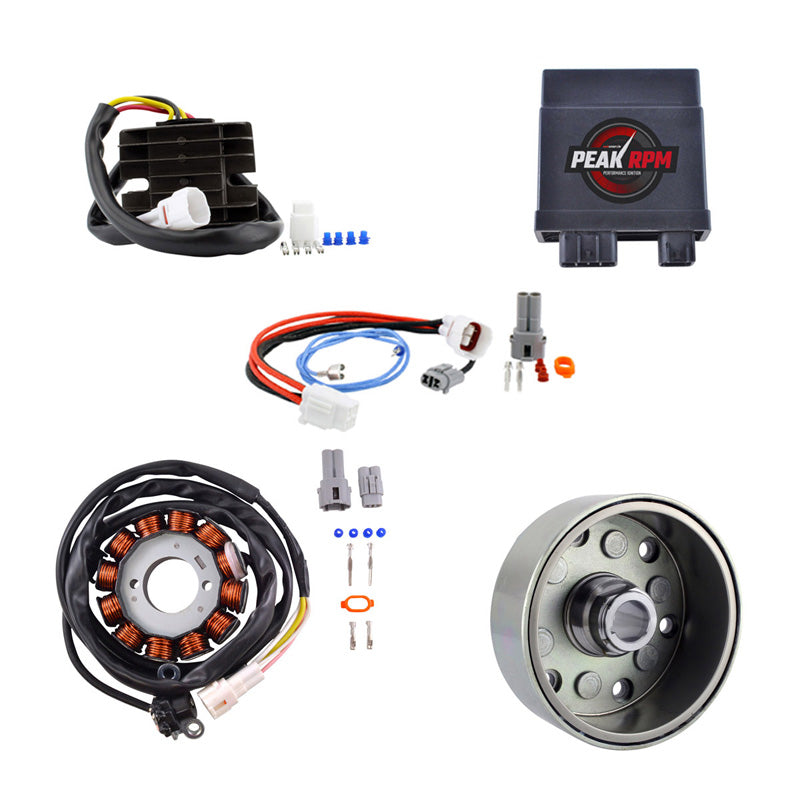

Brand New High Output Stator + Magneto Flywheel Rotor + Regulator + CDI + Harness

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All shipped products are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Brand new High output stator
  • High output stator generating 140W available for added accessories
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
Brand new Magneto Flywheel Rotor
  • The quality exceeds the OEM equipment
  • All products shipped are tested
Brand new Voltage regulator rectifier
  • The quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components
Brand new PeakRPM CDI Box
  • Our part is a Plug-and-play unit, direct fit, and easy to install.
  • Our PeakRPM CDI Box provides the optimal output for your ride
  • Higher grade of electronic components.
  • The Quality exceeds the OEM equipment
  • All products shipped are tested

Specifications:

Specifications of Stator:

Dimensions:
Interior diameter: 30 mm
Exterior diameter: 84 mm
Thickness: 12 mm
Length of wires stator to grommet: 180 mm
Length of wires grommet to plug: 980 mm
Length of pickup coil's wire to grommet: 95 mm

Other specifications:
Number of wires: 4
Number of plugs: 2
Number of pins: 4

Wire to wire resistance:
Alternator: White to Yellow = 0.3ohms +/-20%
Pickup: White to Red = 264ohms =+/-20%

Specifications of Flywheel:

Dimensions:
Exterior Diameter: 100.4 mm
Interior Diameter: 86.5 mm
Interior Diameter Center Housing: 16 mm
Exterior Diameter Center Housing: 28 mm & 33 mm

Specifications of Regulator:

Dimensions:
Width: 66 mm
Length: 78 mm
Height: 27 mm
Wires length: 465 mm
Distance between fixation holes center to center: 62 mm

Other specifications:
Number of plugs: 1
Number of pins: 4
Number of wires: 4
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C

Specifications of CDI:

Dimensions:
Height: 36 mm
Length: 86 mm
Width: 81 mm
Other specifications:
Number of plugs: 2
Number of pins: 12

Specifications of Harness:

Dimensions:
Length: 250 mm
Number of plugs: 2
Number of pins: 8

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
