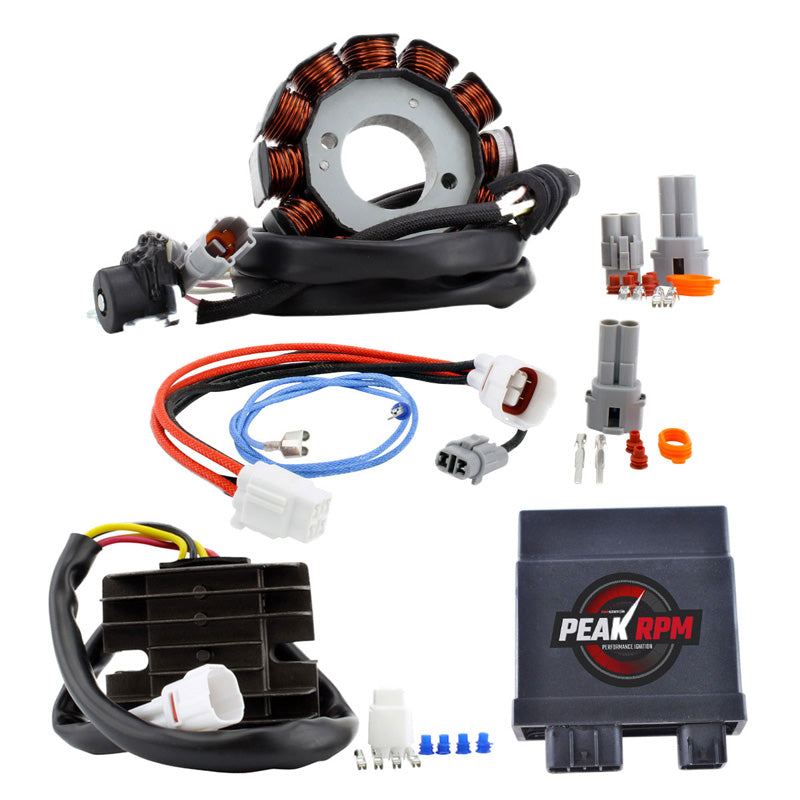

Brand new HO Stator + Heavy Duty Regulator Rectifier + PeakRPM CDI Box ECM Kit

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All shipped products are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Brand new High output stator
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
Brand new Heavy duty Voltage regulator rectifier
  • The Quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components
Brand new PeakRPM CDI Box
  • Our part is a Plug-and-play unit, direct fit, and easy to install.
  • Our PeakRPM CDI Box provides the optimal output for your ride
  • Higher grade of electronic components.
  • The Quality exceeds the OEM equipment
  • All products shipped are tested

Specifications:

Stator Dimensions :
Interior diameter : 30 mm
Exterior diameter : 85 mm
Thickness : 10 mm
Length of wires stator to grommet : 180 mm
Length of wires grommet to plug : 900 mm
Length of pickup coil's wire to grommet : 90 mm

Other specifications :
Number of wires : 4
Number of plugs : 2
Number of pins : 4

Wire to wire resistance :
Pickup : White to Red = 275 ohms +/- 20%
Alternator : White to Yellow = 0.4 ohms +/- 20%

Voltage Regulator Rectifier Dimensions :
Width : 63 mm
Length : 78 mm
Height : 26 mm
Fixation holes center to center : 60 mm
Wires length : 450 mm

Other specifications :
Number of plugs : 1
Number of pins : 4

HP CDI Box Dimensions :
Height : 36 mm
Length : 86 mm
Width : 81 mm

Other specifications :
Number of plugs : 2
Number of pins : 12

Warning:

Please note : This product is a AC to DC conversion kit and reconfigures the lights to run off of the battery.

This kit will not fit on "R" models.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelKIT YAM YFZ 450 04-09
Universevtt_utv
Categorysysteme_de_charge
Supplier Part #RMS900-106906
ITL ID351-900221

Dimensions & Physical

Weight 2.6 lbs
Length9
Width2
Thickness13

Vehicle Fitment

Total Applications1
Applications POLARIS SPORTSMAN 570 EPS 2016
Makes POLARIS
Models SPORTSMAN 570 EPS
Years 2016
