• 50W LIGHTING STATOR (KTM)

50W LIGHTING STATOR (KTM)

50W LIGHTING STATOR (KTM)

Out of stock
$206.99
$206.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out

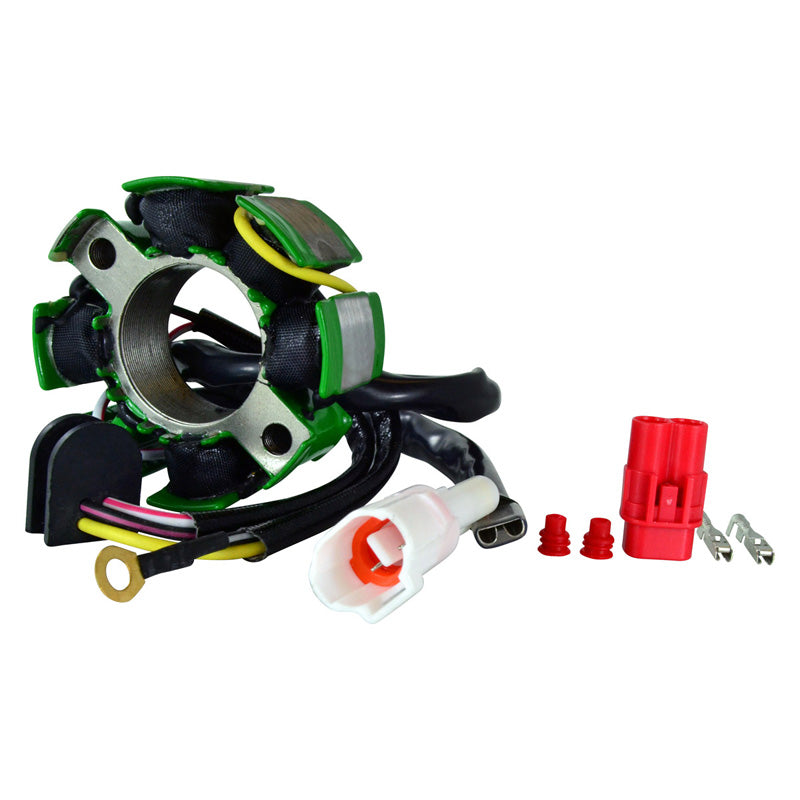

Brand new aftermarket 50W lighting stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 28 mm
Exterior diameter :58 mm
Thickness : 28 mm
Length of wires stator to grommet : 130 mm
Length of wires grommet to plug : 400 mm

Other specifications :
Number of wires : 3
Number of plugs : 2
Number of pins : 3
Number of poles : 6

Wire to wire resistance :
Alternator : Black/Red to White/Red = 0.02 ohms +-20%
Alternator to ground = O.L

Warning:

Please note : We suggest using a 35W halogen bulb in the headlight with a 12V AC regulator, which will ensure a good lighting output at most RPMs you will be running your KTM at.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelSTATOR KTM 250 SX-F|HUSABERG FC 450 00-10
Universemoto
Categorysysteme_de_charge
Supplier Part #RMS010-104489
ITL ID351-010359

Dimensions & Physical

Weight 0.55 lbs
Length2
Width5.9
Thickness3.7

Vehicle Fitment

Total Applications22
Applications HUSABERG FC450 2004HUSABERG FC450 2005HUSABERG FC550 2004HUSABERG FC550 2005KTM 250 SX-F 2006KTM 250 SX-F 2007KTM 250 SX-F 2008KTM 250 SX-F 2009KTM 250 SX-F 2010KTM 400 SX 2000KTM 400 SX 2001KTM 400 SX 2002KTM 450 SX 2003KTM 450 SX 2004KTM 450 SX 2005KTM 450 SX 2006KTM 450 XC 2006KTM 520 SX 2000KTM 525 SX 2003KTM 525 SX 2004KTM 525 SX 2005KTM 525 SX 2006
Makes HUSABERGKTM
Models 250 SX-F400 SX450 SX450 XC520 SX525 SXFC450FC550
Years 20002001200220032004200520062007200820092010
