• 50 AMP SERIES REGULATOR (YAMAHA)

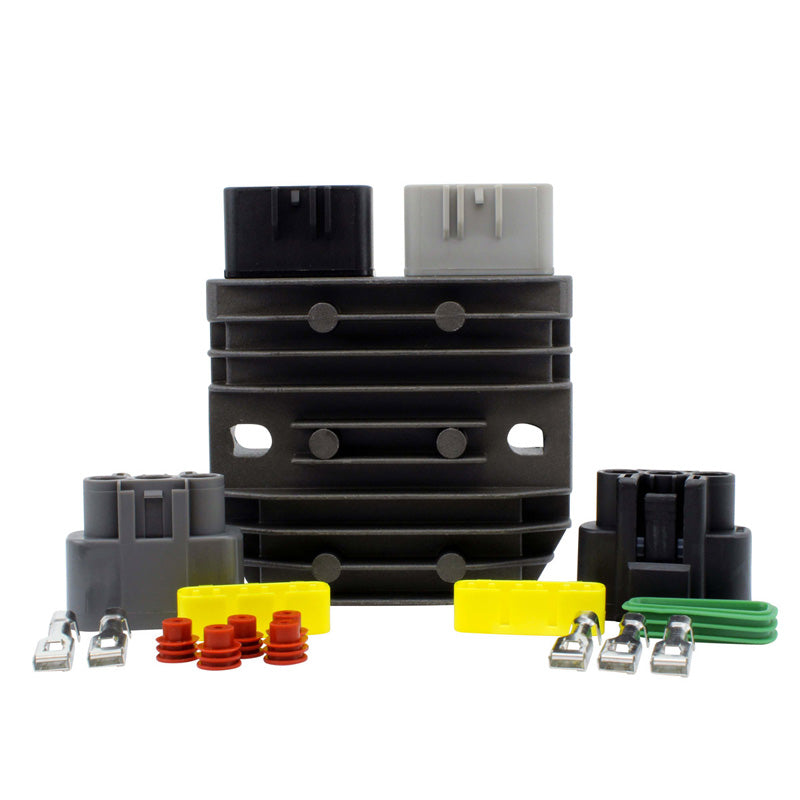

50 AMP SERIES REGULATOR (YAMAHA)

50 AMP SERIES REGULATOR (YAMAHA)

Out of stock
$206.99
$206.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out

WHY USE SERIES ENHANCED TECHNOLOGY?

  • Runs much cooler than the Shunt and MOSFET voltage regulator rectifier.
  • Power only flows through the electrical components when the battery is charging.
  • Allows the stator to have lower current flowing when not used, extending its lifetime.
  • The regulator is easier to mount because it’s smaller than the OEM one.

  • With enhanced technology design

    This product is an advanced technology that lowers operating temperatures for extended longevity and better performance than the OEM part.



    THE SERIES VOLTAGE REGULATION TECHNOLOGY

    RMSTATOR's SERIES voltage regulator brings better reliability and charging system performance. A SERIES regulator is a significant upgrade over typical shunt type voltage regulators. A shunt regulator controls battery voltage by grounding the stator coils to dissipate current as heat, rather than sending it on to the battery. SERIES regulators control battery voltage by intermittently disconnecting stator coils from the regulator electronics, limiting current flow through the unit and on to the battery completely. This results in lower regulator and stator temperatures, more accurate voltage regulation, and increased reliability of your charging system components.


    Brand new series voltage regulator rectifier

    THE ULTIMATE SOLUTION TO YOUR REGULATOR RECTIFIER PROBLEMS!
    It is time to update or replace your voltage regulator with the advanced series type. It runs cooler than all OEMs, Shunt or MOSFET, diode-style regulators. In addition, this rectifier has an overheat protection, rather than burn up it will simply turn off for a while and cool off.

    • Direct replacement to your original unit
    • Plug-and-play, direct fit, easy installation
    • The quality exceeds the OEM equipment
    • Improved heat sink and charging capabilities
    • Higher grade of electric components
    • All shipped products are tested

    We even include the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

    All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

    Specifications:

    Dimensions:
    Width: 84 mm
    Length: 90 mm
    Height: 32 mm
    Fixation holes centre to centre: 69 mm

    Other specifications:
    Number of plugs: 2
    Number of pins: 5

    Warning:

    Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.



Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelREGULATOR 50 AMP|OUTLANDER 570|YAM XTZ 700 08-24
Universemoto,vtt_utv
Categorysysteme_de_charge
Supplier Part #RMS020-106974
ITL ID351-021067

Dimensions & Physical

Weight 0.97 lbs
Length2
Width5.9
Thickness3.7

Vehicle Fitment

Total Applications209
Applications BRP/CAN-AM DEFENDER HD5 2017BRP/CAN-AM DEFENDER HD5 2018BRP/CAN-AM DEFENDER HD5 2019BRP/CAN-AM DEFENDER HD5 2020BRP/CAN-AM DEFENDER HD5 2021BRP/CAN-AM DEFENDER HD5 DPS 2017BRP/CAN-AM DEFENDER HD5 DPS 2018BRP/CAN-AM DEFENDER HD5 DPS 2019BRP/CAN-AM DEFENDER HD5 DPS 2020BRP/CAN-AM DEFENDER HD5 DPS 2021BRP/CAN-AM OUTLANDER 450 2022BRP/CAN-AM OUTLANDER 450 2023BRP/CAN-AM OUTLANDER 450 DPS 2017BRP/CAN-AM OUTLANDER 450 DPS 2018BRP/CAN-AM OUTLANDER 450 DPS 2019BRP/CAN-AM OUTLANDER 450 DPS 2020BRP/CAN-AM OUTLANDER 450 DPS 2021BRP/CAN-AM OUTLANDER 450 DPS 2022BRP/CAN-AM OUTLANDER 450 DPS 2023BRP/CAN-AM OUTLANDER 450 HUNTING EDN PS 2018BRP/CAN-AM OUTLANDER 450 HUNTING EDN PS 2019BRP/CAN-AM OUTLANDER 450 HUNTING EDN PS 2023BRP/CAN-AM OUTLANDER 450 MOSSY OAK EDN PS 2020BRP/CAN-AM OUTLANDER 450 MOSSY OAK EDN PS 2021BRP/CAN-AM OUTLANDER 450 MOSSY OAK EDN PS 2022BRP/CAN-AM OUTLANDER 500 DPS 2023BRP/CAN-AM OUTLANDER 500 DPS 2024BRP/CAN-AM OUTLANDER 500 DPS 2025BRP/CAN-AM OUTLANDER 500 XT-P EFI 2010BRP/CAN-AM OUTLANDER 570 DPS 2017BRP/CAN-AM OUTLANDER 570 DPS 2018BRP/CAN-AM OUTLANDER 570 DPS 2019BRP/CAN-AM OUTLANDER 570 DPS 2020BRP/CAN-AM OUTLANDER 570 DPS 2021BRP/CAN-AM OUTLANDER 570 DPS 2022BRP/CAN-AM OUTLANDER 570 DPS 2023BRP/CAN-AM OUTLANDER 570 HUNTING EDN PS 2017BRP/CAN-AM OUTLANDER 570 HUNTING EDN PS 2018BRP/CAN-AM OUTLANDER 570 HUNTING EDN PS 2019BRP/CAN-AM OUTLANDER 570 MOSSY OAK EDN PS 2020BRP/CAN-AM OUTLANDER 570 MOSSY OAK EDN PS 2021BRP/CAN-AM OUTLANDER 570 MOSSY OAK EDN PS 2022BRP/CAN-AM OUTLANDER 570 X MR PS 2018BRP/CAN-AM OUTLANDER 570 X MR PS 2019BRP/CAN-AM OUTLANDER 570 X MR PS 2020BRP/CAN-AM OUTLANDER 570 X MR PS 2021BRP/CAN-AM OUTLANDER 570 X MR PS 2022BRP/CAN-AM OUTLANDER 570 X MR PS 2023BRP/CAN-AM OUTLANDER 570 XT PS 2018BRP/CAN-AM OUTLANDER 570 XT PS 2019BRP/CAN-AM OUTLANDER 570 XT PS 2020BRP/CAN-AM OUTLANDER 570 XT PS 2021BRP/CAN-AM OUTLANDER 570 XT PS 2022BRP/CAN-AM OUTLANDER 570 XT PS 2023BRP/CAN-AM OUTLANDER 700 DPS 2023BRP/CAN-AM OUTLANDER 700 DPS 2024BRP/CAN-AM OUTLANDER 700 DPS 2025BRP/CAN-AM OUTLANDER 700 X MR PS 2023BRP/CAN-AM OUTLANDER 700 X MR PS 2024BRP/CAN-AM OUTLANDER 700 X MR PS 2025BRP/CAN-AM OUTLANDER 700 XT PS 2023BRP/CAN-AM OUTLANDER 700 XT PS 2024BRP/CAN-AM OUTLANDER 700 XT PS 2025BRP/CAN-AM OUTLANDER HD7 PRO HUNTING EDITION PS 2023BRP/CAN-AM OUTLANDER HD7 PRO HUNTING EDITION PS 2024BRP/CAN-AM OUTLANDER HD7 PRO HUNTING EDITION PS 2025BRP/CAN-AM OUTLANDER HD7 PRO XU PS 2023BRP/CAN-AM OUTLANDER HD7 PRO XU PS 2024BRP/CAN-AM OUTLANDER HD7 PRO XU PS 2025BRP/CAN-AM OUTLANDER L 450 2015BRP/CAN-AM OUTLANDER L 450 2016BRP/CAN-AM OUTLANDER L 450 DPS 2015BRP/CAN-AM OUTLANDER L 450 DPS 2016BRP/CAN-AM OUTLANDER L 500 DPS 2015BRP/CAN-AM OUTLANDER L 570 DPS 2016BRP/CAN-AM OUTLANDER L 570 HUNTING EDITION DPS 2016BRP/CAN-AM OUTLANDER L 570 LE DPS 2016BRP/CAN-AM OUTLANDER L 570 X MR DPS 2016BRP/CAN-AM OUTLANDER L MAX 450 2015BRP/CAN-AM OUTLANDER L MAX 450 2016BRP/CAN-AM OUTLANDER L MAX 450 DPS 2015BRP/CAN-AM OUTLANDER L MAX 450 DPS 2016BRP/CAN-AM OUTLANDER L MAX 500 DPS 2015BRP/CAN-AM OUTLANDER L MAX 570 DPS 2016BRP/CAN-AM OUTLANDER MAX 450 2022BRP/CAN-AM OUTLANDER MAX 450 2023BRP/CAN-AM OUTLANDER MAX 450 DPS 2017BRP/CAN-AM OUTLANDER MAX 450 DPS 2018BRP/CAN-AM OUTLANDER MAX 450 DPS 2019BRP/CAN-AM OUTLANDER MAX 450 DPS 2020BRP/CAN-AM OUTLANDER MAX 450 DPS 2021BRP/CAN-AM OUTLANDER MAX 450 DPS 2022BRP/CAN-AM OUTLANDER MAX 450 DPS 2023BRP/CAN-AM OUTLANDER MAX 450 DPS 6X6 2019BRP/CAN-AM OUTLANDER MAX 450 DPS 6X6 2020BRP/CAN-AM OUTLANDER MAX 450 DPS 6X6 2021BRP/CAN-AM OUTLANDER MAX 450 DPS 6X6 2022BRP/CAN-AM OUTLANDER MAX 450 DPS 6X6 2023BRP/CAN-AM OUTLANDER MAX 450 DPS 6X6 2024BRP/CAN-AM OUTLANDER MAX 500 DPS 2023BRP/CAN-AM OUTLANDER MAX 500 DPS 2024BRP/CAN-AM OUTLANDER MAX 500 DPS 2025BRP/CAN-AM OUTLANDER MAX 570 2023BRP/CAN-AM OUTLANDER MAX 570 DPS 2018BRP/CAN-AM OUTLANDER MAX 570 DPS 2019BRP/CAN-AM OUTLANDER MAX 570 DPS 2020BRP/CAN-AM OUTLANDER MAX 570 DPS 2021BRP/CAN-AM OUTLANDER MAX 570 DPS 2022BRP/CAN-AM OUTLANDER MAX 570 DPS 2023BRP/CAN-AM OUTLANDER MAX 570 XT PS 2022BRP/CAN-AM OUTLANDER MAX 570 XT PS 2023BRP/CAN-AM OUTLANDER MAX 700 DPS 2023BRP/CAN-AM OUTLANDER MAX 700 DPS 2024BRP/CAN-AM OUTLANDER MAX 700 DPS 2025BRP/CAN-AM OUTLANDER MAX 700 XT PS 2023BRP/CAN-AM OUTLANDER MAX 700 XT PS 2024BRP/CAN-AM OUTLANDER MAX 700 XT PS 2025BRP/CAN-AM RENEGADE 570 X MR PS 2017BRP/CAN-AM RENEGADE 570 X MR PS 2018BRP/CAN-AM RENEGADE 570 X MR PS 2019CAN-AM SPYDER GS SE5 2008CAN-AM SPYDER GS SE5 2009CAN-AM SPYDER GS SM5 2008CAN-AM SPYDER GS SM5 2009CAN-AM SPYDER RS SE5 2010CAN-AM SPYDER RS SE5 2011CAN-AM SPYDER RS SE5 2012CAN-AM SPYDER RS SM5 2010CAN-AM SPYDER RS SM5 2011CAN-AM SPYDER RS SM5 2012CAN-AM SPYDER RS-S SE5 2011CAN-AM SPYDER RS-S SE5 2012YAMAHA MT07 2018YAMAHA MT07 2019YAMAHA MT07 2020YAMAHA MT07 2021YAMAHA MT07 2022YAMAHA MT07 2023YAMAHA MT07 2024YAMAHA MT10 2022YAMAHA MT10 2023YAMAHA MT10 2024YAMAHA MTT9 TRACER 900 2019YAMAHA MTT9 TRACER 900 2020YAMAHA MXT9 NIKEN GT 2019YAMAHA MXT9 NIKEN GT 2020YAMAHA XSR700 2022YAMAHA XSR700 2023YAMAHA XTZ700 TENERE 2021YAMAHA XTZ700 TENERE 2022YAMAHA XTZ700 TENERE 2023YAMAHA XTZ700 TENERE 2024YAMAHA YF45K - KODIAK 450 2018YAMAHA YF45K - KODIAK 450 2019YAMAHA YF45K - KODIAK 450 2020YAMAHA YF45K - KODIAK 450 2021YAMAHA YF45K - KODIAK 450 2022YAMAHA YF45K - KODIAK 450 2023YAMAHA YF45K - KODIAK 450 2024YAMAHA YF45KP - KODIAK 450 EPS 2018YAMAHA YF45KP - KODIAK 450 EPS 2019YAMAHA YF45KP - KODIAK 450 EPS 2020YAMAHA YF45KP - KODIAK 450 EPS 2021YAMAHA YF45KP - KODIAK 450 EPS 2022YAMAHA YF45KP - KODIAK 450 EPS 2023YAMAHA YF45KP - KODIAK 450 EPS 2024YAMAHA YX10 - WOLVERINE X2 1000 R-SPEC 2024YAMAHA YX10 - WOLVERINE X2 1000 SE 2024YAMAHA YX10E - WOLVERINE RMAX 2 2021YAMAHA YX10E - WOLVERINE RMAX 2 2022YAMAHA YX10E - WOLVERINE RMAX 2 LE 2023YAMAHA YX10E - WOLVERINE RMAX 2 LE 2024YAMAHA YX10E - WOLVERINE RMAX 2 R-SPEC 2023YAMAHA YX10E - WOLVERINE RMAX 2 R-SPEC 2024YAMAHA YX10E - WOLVERINE RMAX 2 SE 2021YAMAHA YX10E - WOLVERINE RMAX 2 SE 2022YAMAHA YX10E - WOLVERINE RMAX 2 SE 2023YAMAHA YX10E - WOLVERINE RMAX 2 SPORT 2022YAMAHA YX10E - WOLVERINE RMAX 2 SPORT 2023YAMAHA YX10E - WOLVERINE RMAX 2 SPORT 2024YAMAHA YX10F - WOLVERINE RMAX 4 2021YAMAHA YX10F - WOLVERINE RMAX 4 LE 2023YAMAHA YX10F - WOLVERINE RMAX 4 LE 2024YAMAHA YX10F - WOLVERINE RMAX 4 R-SPEC 2022YAMAHA YX10F - WOLVERINE RMAX 4 R-SPEC 2023YAMAHA YX10F - WOLVERINE RMAX 4 R-SPEC 2024YAMAHA YX10F - WOLVERINE RMAX 4 SE 2021YAMAHA YX10F - WOLVERINE RMAX 4 SE 2022YAMAHA YX10F - WOLVERINE RMAX 4 SE 2023YAMAHA YX10Z - YXZ1000R SS EPS 2024YAMAHA YX10Z - YXZ1000R SS SE EPS 2021YAMAHA YX10Z - YXZ1000R SS SE EPS 2022YAMAHA YX10Z - YXZ1000R SS SE EPS 2023YAMAHA YX85E - WOLVERINE X2 SE 2021YAMAHA YX85E - WOLVERINE X2 SE 2022YAMAHA YX85E - WOLVERINE X2 SE 2023YAMAHA YX85E - WOLVERINE X2 SE 2024YAMAHA YX85EP WOLVERINE X2 R-SPEC EPS 2021YAMAHA YX85EP WOLVERINE X2 R-SPEC EPS 2022YAMAHA YX85EP WOLVERINE X2 R-SPEC EPS 2023YAMAHA YX85EP WOLVERINE X2 R-SPEC EPS 2024YAMAHA YX85F - WOLVERINE X4 EPS 2021YAMAHA YX85F - WOLVERINE X4 EPS 2022YAMAHA YX85F - WOLVERINE X4 EPS 2023YAMAHA YX85F - WOLVERINE X4 EPS 2024YAMAHA YX85F - WOLVERINE X4 SE EPS 2021YAMAHA YX85F - WOLVERINE X4 SE EPS 2022YAMAHA YX85F - WOLVERINE X4 SE EPS 2023YAMAHA YX85F - WOLVERINE X4 SE EPS 2024
Makes BRP/CAN-AMCAN-AMYAMAHA
Models DEFENDER HD5DEFENDER HD5 DPSMT07MT10MTT9 TRACER 900MXT9 NIKEN GTOUTLANDER 450OUTLANDER 450 DPSOUTLANDER 450 HUNTING EDN PSOUTLANDER 450 MOSSY OAK EDN PSOUTLANDER 500 DPSOUTLANDER 500 XT-P EFIOUTLANDER 570 DPSOUTLANDER 570 HUNTING EDN PSOUTLANDER 570 MOSSY OAK EDN PSOUTLANDER 570 X MR PSOUTLANDER 570 XT PSOUTLANDER 700 DPSOUTLANDER 700 X MR PSOUTLANDER 700 XT PSOUTLANDER HD7 PRO HUNTING EDITION PSOUTLANDER HD7 PRO XU PSOUTLANDER L 450OUTLANDER L 450 DPSOUTLANDER L 500 DPSOUTLANDER L 570 DPSOUTLANDER L 570 HUNTING EDITION DPSOUTLANDER L 570 LE DPSOUTLANDER L 570 X MR DPSOUTLANDER L MAX 450OUTLANDER L MAX 450 DPSOUTLANDER L MAX 500 DPSOUTLANDER L MAX 570 DPSOUTLANDER MAX 450OUTLANDER MAX 450 DPSOUTLANDER MAX 450 DPS 6X6OUTLANDER MAX 500 DPSOUTLANDER MAX 570OUTLANDER MAX 570 DPSOUTLANDER MAX 570 XT PSOUTLANDER MAX 700 DPSOUTLANDER MAX 700 XT PSRENEGADE 570 X MR PSSPYDER GS SE5SPYDER GS SM5SPYDER RS SE5SPYDER RS SM5SPYDER RS-S SE5XSR700XTZ700 TENEREYF45K - KODIAK 450YF45KP - KODIAK 450 EPSYX10 - WOLVERINE X2 1000 R-SPECYX10 - WOLVERINE X2 1000 SEYX10E - WOLVERINE RMAX 2YX10E - WOLVERINE RMAX 2 LEYX10E - WOLVERINE RMAX 2 R-SPECYX10E - WOLVERINE RMAX 2 SEYX10E - WOLVERINE RMAX 2 SPORTYX10F - WOLVERINE RMAX 4YX10F - WOLVERINE RMAX 4 LEYX10F - WOLVERINE RMAX 4 R-SPECYX10F - WOLVERINE RMAX 4 SEYX10Z - YXZ1000R SS EPSYX10Z - YXZ1000R SS SE EPSYX85E - WOLVERINE X2 SEYX85EP WOLVERINE X2 R-SPEC EPSYX85F - WOLVERINE X4 EPSYX85F - WOLVERINE X4 SE EPS
Years 2008200920102011201220152016201720182019202020212022202320242025
