• 250W AC TO DC CONVERSION BATTERY CHARGING KIT (HONDA)

250W AC TO DC CONVERSION BATTERY CHARGING KIT (HONDA)

250W AC TO DC CONVERSION BATTERY CHARGING KIT (HONDA)

Out of stock
$444.99
$444.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out

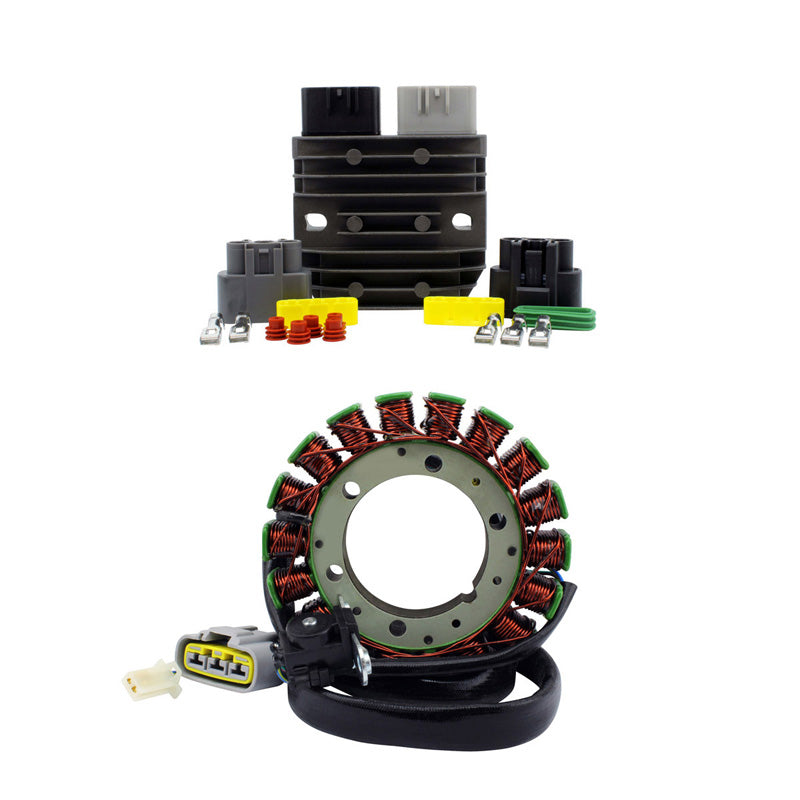

Brand new aftermarket 250W AC to DC Conversion Battery Charging Kit

  • Connectors included
  • All products shipped are tested

Stator:

  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Pick up pulsar coil included
  • Rubber grommet included

SERIES Voltage Regulator:

  • Improved heat sink and charging capabilities
  • Higher grade of electric components

We even include the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

WHY USE SERIES ENHANCED TECHNOLOGY?

  • Runs much cooler than the Shunt and MOSFET voltage regulator rectifier.
  • Power only flows through the electrical components when the battery is charging.
  • Allows the stator to have lower current flowing when not used, extending its lifetime.
  • The regulator is easier to mount because it’s smaller than the OEM one.
With enhanced technology design

This product is an advanced technology that lowers operating temperatures for extended longevity and better performance than the OEM part.

THE SERIES VOLTAGE REGULATION TECHNOLOGY

RMSTATOR’s new SERIES voltage regulator brings better reliability and charging system performance. A SERIES regulator is a significant upgrade over typical shunt type voltage regulators. A shunt regulator controls battery voltage by grounding the stator coils to dissipate current as heat, rather than sending it on to the battery. SERIES regulators control battery voltage by intermittently disconnecting stator coils from the regulator electronics, limiting current flow through the unit and on to the battery completely. This results in lower regulator and stator temperatures, more accurate voltage regulation, and increased reliability of your charging system components.

Specifications:

Stator:

Dimensions:
Interior diameter: 54 mm
Exterior diameter: 115 mm
Thickness: 13 mm
Length of wires stator to grommet: 120 mm
Length of wires grommet to plug: 695 mm
Length of pickup coil's wire to grommet: 220 mm

Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18

Wire to wire resistance:
Alternator: White to White = 0.6 ohms +-20%
Pickup: Blue/Yellow to Green/Red = 250 ohms +-20%

SERIES Voltage Regulator:

Dimensions:
Width: 84 mm
Length: 90 mm
Height: 32 mm
Fixation holes center to center: 69 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° to 85°

Warning:

This kit is designed to convert the Honda XR650R charging system to a true three phase 250W output intended to charge a battery for power electrical accessories such as lights, heated gear, radiator fan, GPS/ gauges, and more.

It currently includes the stator and SERIES voltage regulator rectifier.

Note that this kit requires custom installation. You must install and mount a battery, DC CDI box, voltage regulator, and wire accordingly.

If you're unsure whether this kit will suit your needs, please:

Watch our video ! Read our complete installation instructions

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelKIT HONDA XR 650 R 00-07
Universemoto
Categorysysteme_de_charge
Supplier Part #RMS900-108297
ITL ID351-900279

Dimensions & Physical

Weight 2.71 lbs
Length9
Width13
Thickness2

Vehicle Fitment

Total Applications7
Applications HONDA XR650R 2000HONDA XR650R 2001HONDA XR650R 2002HONDA XR650R 2003HONDA XR650R 2004HONDA XR650R 2005HONDA XR650R 2006
Makes HONDA
Models XR650R
Years 2000200120022003200420052006
