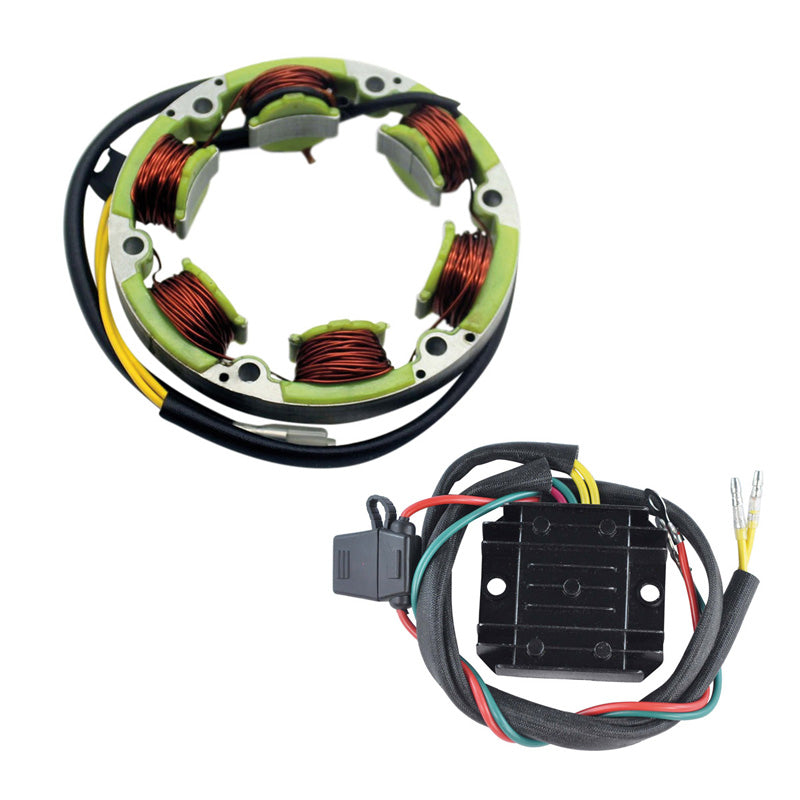

Brand New High Output Kit Stator + Voltage Regulator Rectifier

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All shipped products are tested

This kit outputs 25% more power than the OEM system (Approx. 150 watts) and will power a 55 watts headlight. This will allow the charging of the battery even when the headlight is on thanks to the higher voltage of this kit. This applies if you have an undamaged rotor working properly. For customers using Lithium-Ion (Li-ion), it might be necessary to contact battery manufacturer before installing this kit to ensure their product will accept a voltage of 14.5 volts sent by the regulator.

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Stator
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Connector included
  • Rubber grommet included
Brand new aftermarket voltage regulator rectifier
  • No assembly required
  • Higher grade of electric components
  • Charging capabilities
  • The quality exceeds the OEM equipment

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Specifications:

Dimensions Stator :
Interior diameter : 80 mm
Exterior diameter : 130 mm
Thickness : 35 mm
Length of wires stator to grommet : 15 mm
Length of wires grommet to plug : 340 mm

Other specifications :
Number of wires : 2
Number of plugs : 2
Number of pins : 2

Wire to wire resistance :
Alternator : Black to Black = 0.4 ohms +/-20%

Dimensions Voltage Regulator Rectifier :
Width : 58 mm
Length : 68 mm
Height: 25 mm
Fixation holes center to center : 53 mm
Wires length: 300 mm & 600 mm

Other specifications :
Number of wires: 4
Number of plugs : 4
Number of pins : 4

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
150W HIGH POWER STATOR & VOLTAGE REGULATOR CHARGING SYSTEM UPGRADE (HONDA)

$232.99

Product Specifications

General Information

Brandrms
LabelKIT HON CB|CL350/360 68-77
Universemoto
Categorysysteme_de_charge
Supplier Part #RM22436
ITL ID351-900025

Dimensions & Physical

Weight 2.1 lbs
Length6.3
Width6.3
Thickness2.8

Vehicle Fitment

Total Applications21
Applications HONDA CB350 TWIN 1968HONDA CB350 TWIN 1969HONDA CB350 TWIN 1970HONDA CB350 TWIN 1971HONDA CB350 TWIN 1972HONDA CB350 TWIN 1973HONDA CB350F SUPERSPORT 1972HONDA CB350F SUPERSPORT 1973HONDA CB360 1974HONDA CB360 1975HONDA CB360 1976HONDA CJ360T 1977HONDA CL350 1968HONDA CL350 1969HONDA CL350 1970HONDA CL350 1971HONDA CL350 1972HONDA CL350 1973HONDA CL360 1974HONDA CL360 1975HONDA CL360 1976
Makes HONDA
Models CB350 TWINCB350F SUPERSPORTCB360CJ360TCL350CL360
Years 1968196919701971197219731974197519761977
