• 140W AC TO DC CHARGING UPGRADE KIT STATOR + REGULATOR + FLYWHEEL (YAMAHA)

140W AC TO DC CHARGING UPGRADE KIT STATOR + REGULATOR + FLYWHEEL (YAMAHA)

140W AC TO DC CHARGING UPGRADE KIT STATOR + REGULATOR + FLYWHEEL (YAMAHA)

Out of stock
$465.99
$465.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out

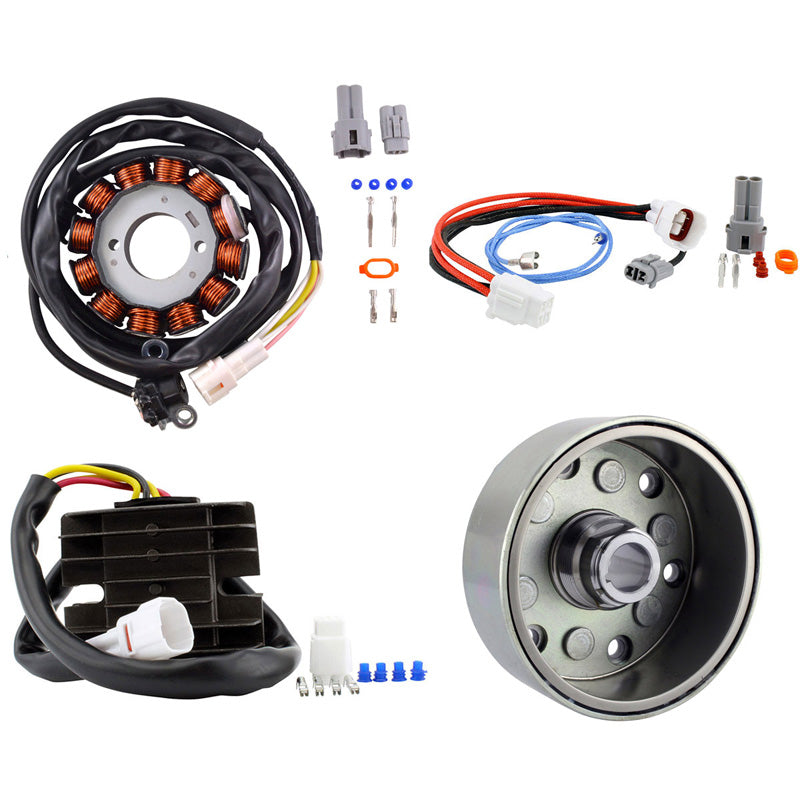

Brand New High Output Stator + Magneto Flywheel Rotor + Regulator + Harness

  • Direct replacement to your original unit
  • Pick up pulsar coil included
  • Connector included
  • Opposite connector included
  • Rubber grommet included
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • All products shipped are tested

High output stator generating 140W available for added accessories

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Specifications of Flywheel:

Dimensions:
Exterior Diameter: 100.4 mm
Interior Diameter: 86.5 mm
Interior Diameter Center Housing: 16 mm
Exterior Diameter Center Housing: 28 mm & 33 mm

Specifications of Stator:

Dimensions:
Interior diameter: 30 mm
Exterior diameter: 84 mm
Thickness: 12 mm
Length of wires stator to grommet: 180 mm
Length of wires grommet to plug: 980 mm
Length of pickup coil's wire to grommet: 95 mm

Other specifications:
Number of wires: 4
Number of plugs: 2
Number of pins: 4

Wire to wire resistance:
Alternator: White to Yellow = 0.3ohms +/-20%
Pickup: White to Red = 264ohms =+/-20%

Specifications of Regulator:

Dimensions:
Width: 66 mm
Length: 78 mm
Height: 27 mm
Wires length: 465 mm
Distance between fixation holes center to center: 62 mm

Other specifications:
Number of plugs: 1
Number of pins: 4
Number of wires: 4
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C


Specifications of Harness:

Dimensions:
Length: 250 mm
Number of plugs: 2
Number of pins: 8

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
