• 100W DC CONVERTED STATOR + VOLTAGE REGULATOR (KTM) (KTM)

100W DC CONVERTED STATOR + VOLTAGE REGULATOR (KTM) (KTM)

100W DC CONVERTED STATOR + VOLTAGE REGULATOR (KTM) (KTM)

Out of stock
$236.99
$236.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out

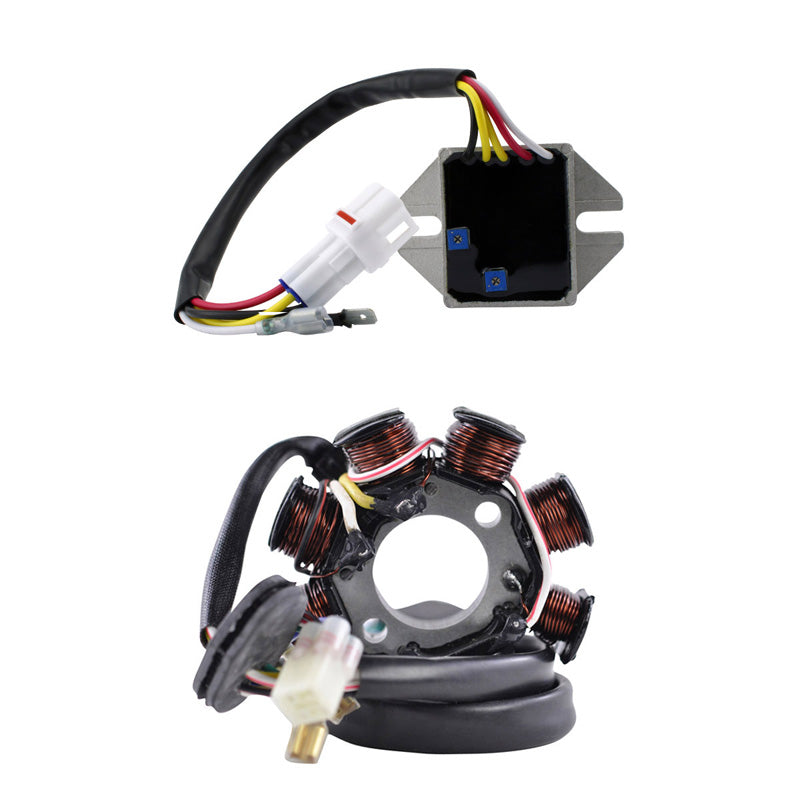

100W converted AC to DC Kit Stator + Voltage Regulator Rectifier

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Connectors included
  • All products shipped are tested

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Brand new aftermarket stator

  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Pick up pulsar coil included
  • Rubber grommet included

Brand new aftermarket voltage regulator rectifier

  • No assembly required
  • Higher grade of electric components
  • The quality exceeds the OEM equipment

Specifications:

Stator Specifications:
Dimensions:
Interior diameter: 29 mm
Exterior diameter: 84 mm
Thickness: 12 mm
Length of wires stator to grommet: 90 mm
Length of wires grommet to plug: 450 mm
Length of pickup coil's wire to grommet: 100 mm

Other specifications:
Number of wires: 6
Number of plugs: 3
Number of pins: 6
Number of poles: 8
Wire to wire resistance:
Alternator : Yellow to Yellow = 0.8 ohms +-20%
Pickup: Green to Red = 130 ohms +-20%
Source: White to White = 20 ohms +-20%

Regulator Rectifier Specifications:
Dimensions:
Width: 54 mm
Length: 80 mm
Height: 22 mm
Wires length: 235 mm
Distance between fixation holes center to center: 65 mm

Other specifications:
Number of plugs: 3
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C

Warning:

Battery condition is extremely important. No stator, nor regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelKIT KTM 200-300 XC/W HUSQ TE 250/310 08-16
Universemoto
Categorysysteme_de_charge
Supplier Part #RMS900-107504
ITL ID351-900240

Dimensions & Physical

Weight 4 lbs
Length2
Width5.9
Thickness3.7

Vehicle Fitment

Total Applications56
Applications HUSABERG TE250 2013HUSABERG TE250 2014HUSABERG TE300 2012HUSABERG TE300 2013HUSABERG TE300 2014HUSQVARNA TE250 2011HUSQVARNA TE250 2012HUSQVARNA TE250 2014HUSQVARNA TE250 2015HUSQVARNA TE250 2016HUSQVARNA TE300 2014HUSQVARNA TE300 2015HUSQVARNA TE300 2016HUSQVARNA TE310 2011HUSQVARNA TE310 2012HUSQVARNA TE310 2013KTM 200 XC-W 2013KTM 200 XC-W 2014KTM 200 XC-W 2015KTM 200 XC-W 2016KTM 250 XC 2008KTM 250 XC ELEC 2009KTM 250 XC ELEC 2010KTM 250 XC ELEC 2011KTM 250 XC ELEC 2012KTM 250 XC ELEC 2013KTM 250 XC ELEC 2014KTM 250 XC ELEC 2015KTM 250 XC ELEC 2016KTM 250 XC-WE 2008KTM 250 XC-WE 2009KTM 250 XC-WE 2010KTM 250 XC-WE 2011KTM 250 XC-WE 2012KTM 250 XC-WE 2013KTM 250 XC-WE 2014KTM 250 XC-WE 2015KTM 250 XC-WE 2016KTM 300 XC 2008KTM 300 XC ELEC 2009KTM 300 XC ELEC 2010KTM 300 XC ELEC 2011KTM 300 XC ELEC 2012KTM 300 XC ELEC 2013KTM 300 XC ELEC 2014KTM 300 XC ELEC 2015KTM 300 XC ELEC 2016KTM 300 XC-WE 2008KTM 300 XC-WE 2009KTM 300 XC-WE 2010KTM 300 XC-WE 2011KTM 300 XC-WE 2012KTM 300 XC-WE 2013KTM 300 XC-WE 2014KTM 300 XC-WE 2015KTM 300 XC-WE 2016
Makes HUSABERGHUSQVARNAKTM
Models 200 XC-W250 XC250 XC ELEC250 XC-WE300 XC300 XC ELEC300 XC-WETE250TE300TE310
Years 200820092010201120122013201420152016
