• 100W AC TO DC CONVERSION KIT STATOR + REGULATOR (KTM) (KTM)

100W AC TO DC CONVERSION KIT STATOR + REGULATOR (KTM) (KTM)

100W AC TO DC CONVERSION KIT STATOR + REGULATOR (KTM) (KTM)

Out of stock
$265.99
$265.99
Shipping calculated at checkout.

QUESTIONS? GIVE US A CALL 519-872-9088

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out

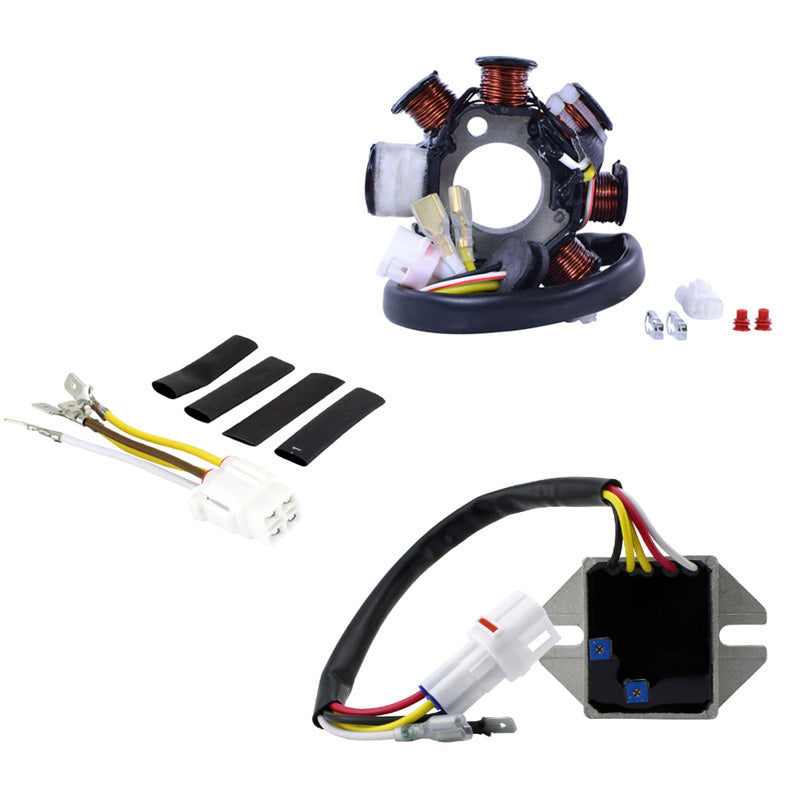

100W DC Converted Kit Stator + Voltage Regulator + Harness

  • 100 Watt DC charging system
  • Replace the OEM stator with 100W high output stator
  • Convert your AC system into a high power DC one
  • All products shipped are tested

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Brand new aftermarket Stator
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Connectors included
  • Rubber grommet included

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

Brand new aftermarket Voltage Regulator Rectifier
  • No assembly required
  • Higher grade of electric components
  • Connectors included
  • The quality exceeds the OEM equipment

Specifications:

Stator Specifications:
Dimensions:
Interior diameter: 29 mm
Exterior diameter: 83 mm
Thickness: 13 mm
Length of wires stator to grommet: 60 mm
Length of wires grommet to plug: 490 mm

Other specifications:
Number of wires: 4
Number of plugs: 3
Number of pins: 4
Number of poles: 8
Wire to wire resistance:
Alternator: White to Yellow = 0.5 ohms +-20%
Source: White/Red to Black/Red = 30 ohms +-20%

Regulator Rectifier Specifications:
Dimensions:
Width: 54 mm
Length: 80 mm
Height: 22 mm
Wires length: 235 mm
Distance between fixation holes center to center: 65 mm

Other specifications:
Number of plugs: 3
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C

Harness Specifications:
Dimensions:
Wires length : 80 mm
Number of wires : 4
Number of plugs: 1
Number of pins : 4

Warning:

Battery condition is extremely important. No stator, nor regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.

Product Specifications

General Information

Brandrms
LabelKIT KTM 250-450|HUSQ TE 250/300 06-19
Universemoto
Categorysysteme_de_charge
Supplier Part #RMS900-107508
ITL ID351-900242

Dimensions & Physical

Weight 4.5 lbs
Length2
Width5.9
Thickness3.7

Vehicle Fitment

Total Applications56
Applications HUSQVARNA TE250 2017HUSQVARNA TE300 2017HUSQVARNA TE300 2018HUSQVARNA TX300 2017HUSQVARNA TX300 2018HUSQVARNA TX300 2019KTM 250 XC ELEC 2017KTM 250 XC ELEC 2018KTM 250 XC-F 2008KTM 250 XC-F 2009KTM 250 XC-F-W 2007KTM 250 XC-F-W 2008KTM 250 XC-F-W 2009KTM 250 XC-F-W 2012KTM 250 XC-F-W SIX DAYS 2011KTM 250 XC-W 2007KTM 250 XC-WE 2009KTM 250 XC-WE 2010KTM 250 XC-WE 2011KTM 250 XC-WE 2012KTM 250 XC-WE 2017KTM 250 XC-WE 2018KTM 300 XC ELEC 2017KTM 300 XC ELEC 2018KTM 300 XC ELEC 2019KTM 300 XC-WE 2017KTM 300 XC-WE 2018KTM 400 EXC 2000KTM 400 EXC 2001KTM 400 EXC 2002KTM 400 EXC 2004KTM 400 EXC 2005KTM 400 EXC 2006KTM 400 XC-W 2007KTM 400 XC-W 2009KTM 400 XC-W 2010KTM 450 EXC 2003KTM 450 EXC 2004KTM 450 EXC 2005KTM 450 EXC 2006KTM 450 MXC CROSS COUNTRY 2005KTM 450 XC-W 2007KTM 450 XC-W 2009KTM 450 XC-W SIX DAYS 2010KTM 520 EXC 2000KTM 520 EXC 2001KTM 520 EXC 2002KTM 525 EXC 2003KTM 525 EXC 2004KTM 525 EXC 2005KTM 525 EXC 2006KTM 525 XC-W 2007KTM 530 XC-W SIX DAYS 2010KTM 530 XC-W SIX DAYS 2011KTM 530 XC-W WIDE RATIO 2009POLARIS SPORTSMAN 850 HIGH LIFTER EPS 2018
Makes HUSQVARNAKTMPOLARIS
Models 250 XC ELEC250 XC-F250 XC-F-W250 XC-F-W SIX DAYS250 XC-W250 XC-WE300 XC ELEC300 XC-WE400 EXC400 XC-W450 EXC450 MXC CROSS COUNTRY450 XC-W450 XC-W SIX DAYS520 EXC525 EXC525 XC-W530 XC-W SIX DAYS530 XC-W WIDE RATIOSPORTSMAN 850 HIGH LIFTER EPSTE250TE300TX300
Years 2000200120022003200420052006200720082009201020112012201720182019
