100W DC Converted Kit Stator + Voltage Regulator + Harness

  • 100 Watt DC charging system
  • Replace the OEM stator with 100W high output stator
  • Convert your AC system into a high power DC one
  • All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

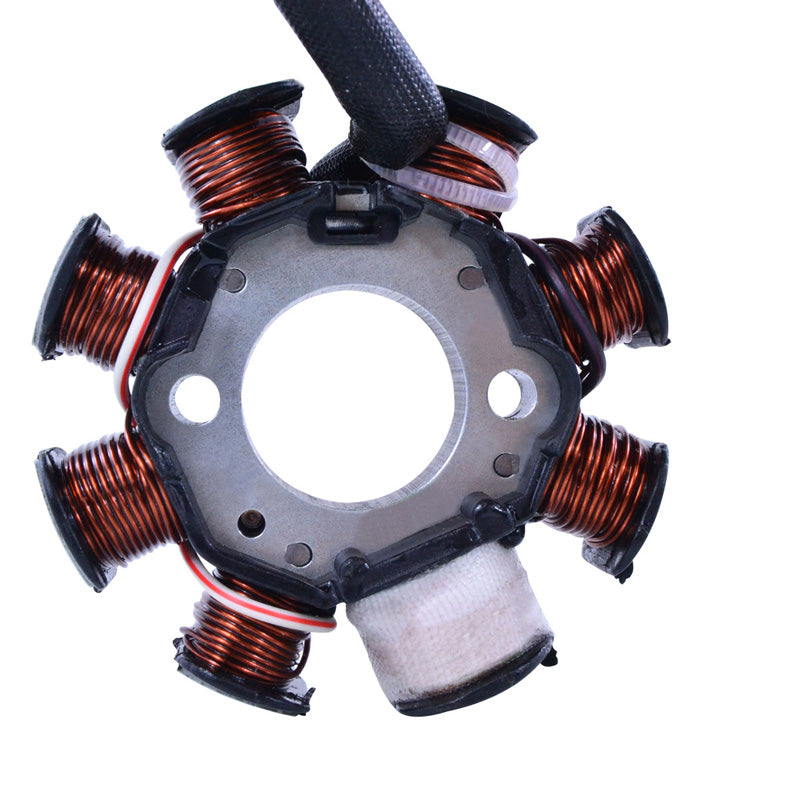

Brand new aftermarket Stator

  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Connectors included
  • Rubber grommet included

Brand new aftermarket Voltage Regulator Rectifier

  • No assembly required
  • Higher grade of electric components
  • The quality exceeds the OEM equipment

Specifications:

Stator Specifications:
Dimensions:
Interior diameter: 29 mm
Exterior diameter: 83 mm
Thickness: 13 mm
Length of wires stator to grommet: 60 mm
Length of wires grommet to plug: 490 mm

Other specifications:
Number of wires: 4
Number of plugs: 3
Number of pins: 4
Number of poles: 8
Wire to wire resistance:
Alternator: White to Yellow = 0.5 ohms +-20%
Source: Black/Red to Red/White = 30 ohms +-20%

Regulator Rectifier Specifications:
Dimensions:
Width: 54 mm
Length: 80 mm
Height: 22 mm
Wires length: 235 mm
Distance between fixation holes center to center: 65 mm

Other specifications:
Number of plugs: 3
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C

Harness Specifications:
Dimensions:
Wires length: 530 mm and 60 mm
Number of wires: 3
Number of plugs: 3
Number of pins: 5

Warning:

Battery condition is extremely important. No stator, nor regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Materials

Add tab content here to outline the materials used in your product, highlighting their origins, properties, and benefits. For instance, if you’re describing a jacket, detail the type of fabric used, its durability, and any eco-friendly qualities. Explain the craftsmanship involved, such as specialized weaving or treatment processes, and mention other materials like leather trims or metal fixtures to assure customers of the product's quality.

Dimensions

Include tab content here to detail the dimensions of your product, specifying its height, width, depth, and weight. For example, if you're describing a piece of luggage, provide measurements like the overall height with and without wheels, the internal packing space, and its empty weight. Clarify any additional dimension-related features, such as adjustable handles or expandable compartments, which offer flexibility and extra capacity.

Care Instructions

Incorporate tab content here to provide detailed care instructions for your product, specifying how to properly maintain and extend its lifespan. For example, if you're discussing apparel, include washing and drying guidelines, such as machine wash cold, tumble dry low, or hand wash only. Specify if any detergents or cleaning agents should be avoided and whether the item should be ironed or dry cleaned.
100W AC TO DC CONVERSION KIT STATOR + REGULATOR (KTM) (KTM)

$265.99

Product Specifications

General Information

Brandrms
LabelKIT KTM 4T|HUSQVARNA 400 450 530 08-11
Universemoto
Categorysysteme_de_charge
Supplier Part #RMS900-107506
ITL ID351-900241

Dimensions & Physical

Weight 4.5 lbs
Length2
Width5.9
Thickness3.7

Vehicle Fitment

Total Applications15
Applications KTM 400 XC-W 2009KTM 400 XC-W 2010KTM 450 EXC (STREET LEGAL) 2007KTM 450 EXC-R (STREET LEGAL) 2008KTM 450 EXC-R (STREET LEGAL) 2009KTM 450 XC-W 2009KTM 450 XC-W SIX DAYS 2010KTM 450 XC-W SIX DAYS 2011KTM 450 XCR-W 2008KTM 530 EXC-R (STREET LEGAL) 2008KTM 530 EXC-R (STREET LEGAL) 2009KTM 530 XC-W SIX DAYS 2010KTM 530 XC-W SIX DAYS 2011KTM 530 XCR-W 2008POLARIS SPORTSMAN 850 HIGH LIFTER EPS 2017
Makes KTMPOLARIS
Models 400 XC-W450 EXC (STREET LEGAL)450 EXC-R (STREET LEGAL)450 XC-W450 XC-W SIX DAYS450 XCR-W530 EXC-R (STREET LEGAL)530 XC-W SIX DAYS530 XCR-WSPORTSMAN 850 HIGH LIFTER EPS
Years 200720082009201020112017
